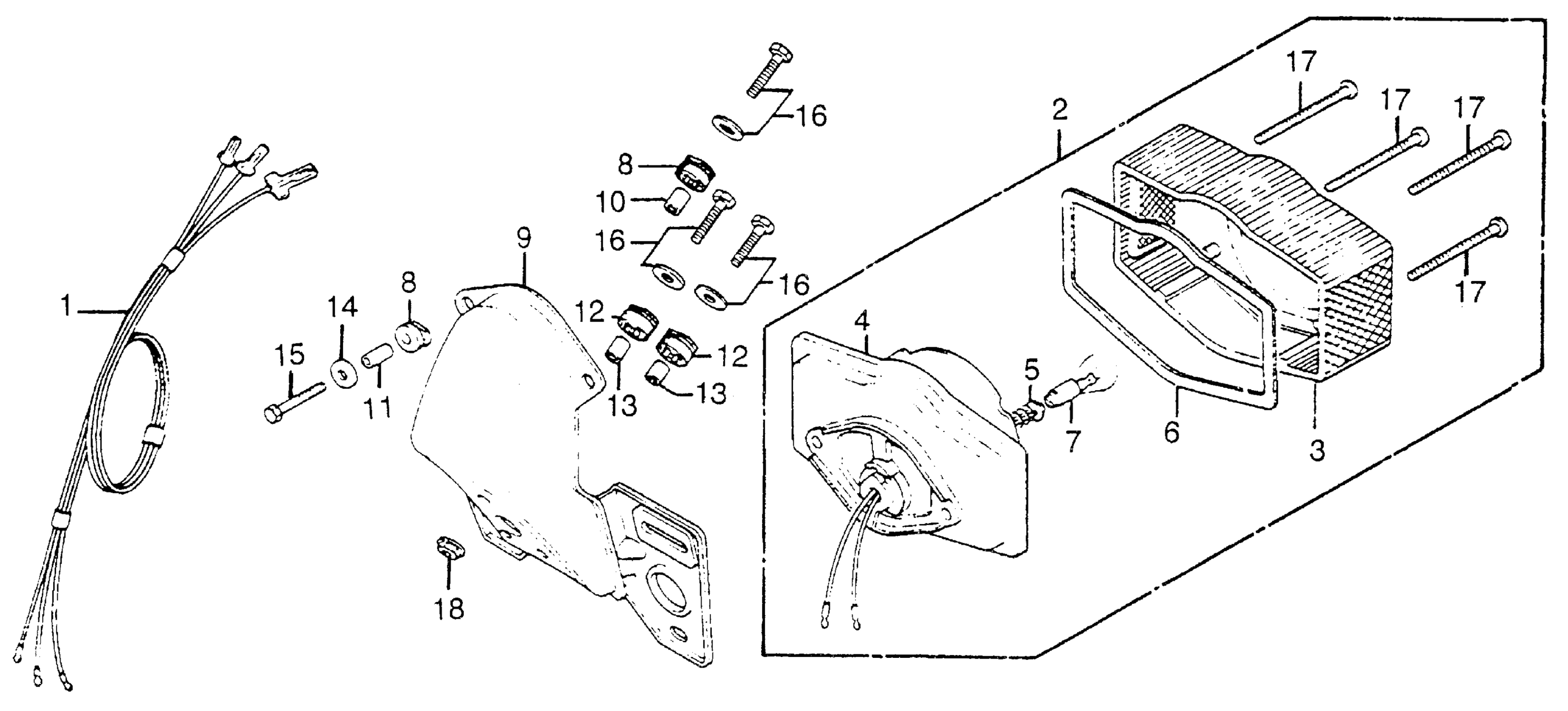

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 TAILLIGHT Diagram

#

Description
Price

1

SUB-WIRE, TAIL (NOT AVAILABLE)

32111-393-000

Unavailable

2

TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE)

33701-341-910

Unavailable

3

LENS, TAILLIGHT

33702-341-671

Unavailable

4

BASE, TAILLIGHT (NOT AVAILABLE)

33703-341-900

Unavailable

5

WIRE, TAILLIGHT

33708-098-000

Unavailable

5

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

6

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

7

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

7

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

8

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

9

BRACKET, NUMBER PLATE This part replaces 84700-393-670.

84700-425-870

Unavailable

9

BRACKET, NUMBER PLATE

84700-425-870

Unavailable

10

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

11

COLLAR, TAILLIGHT UNIT

84706-378-000

Unavailable

12

RUBBER, FENDER

84905-333-000

$4.22

13

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

14

WASHER (20MM)

90581-310-000

$1.90

15

BOLT, HEX. (5X25) This part replaces 92000-05025-0A.

92101-05025-0A

$1.49

15

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

16

BOLT-WASHER (6X22) This part replaces 93494-06022-00.

93404-06022-00

$1.49

17

SCREW, PAN (4X55)

93500-04055-4J

$1.49

18

NUT, FLANGE (6MM)

94050-06000

$1.49
