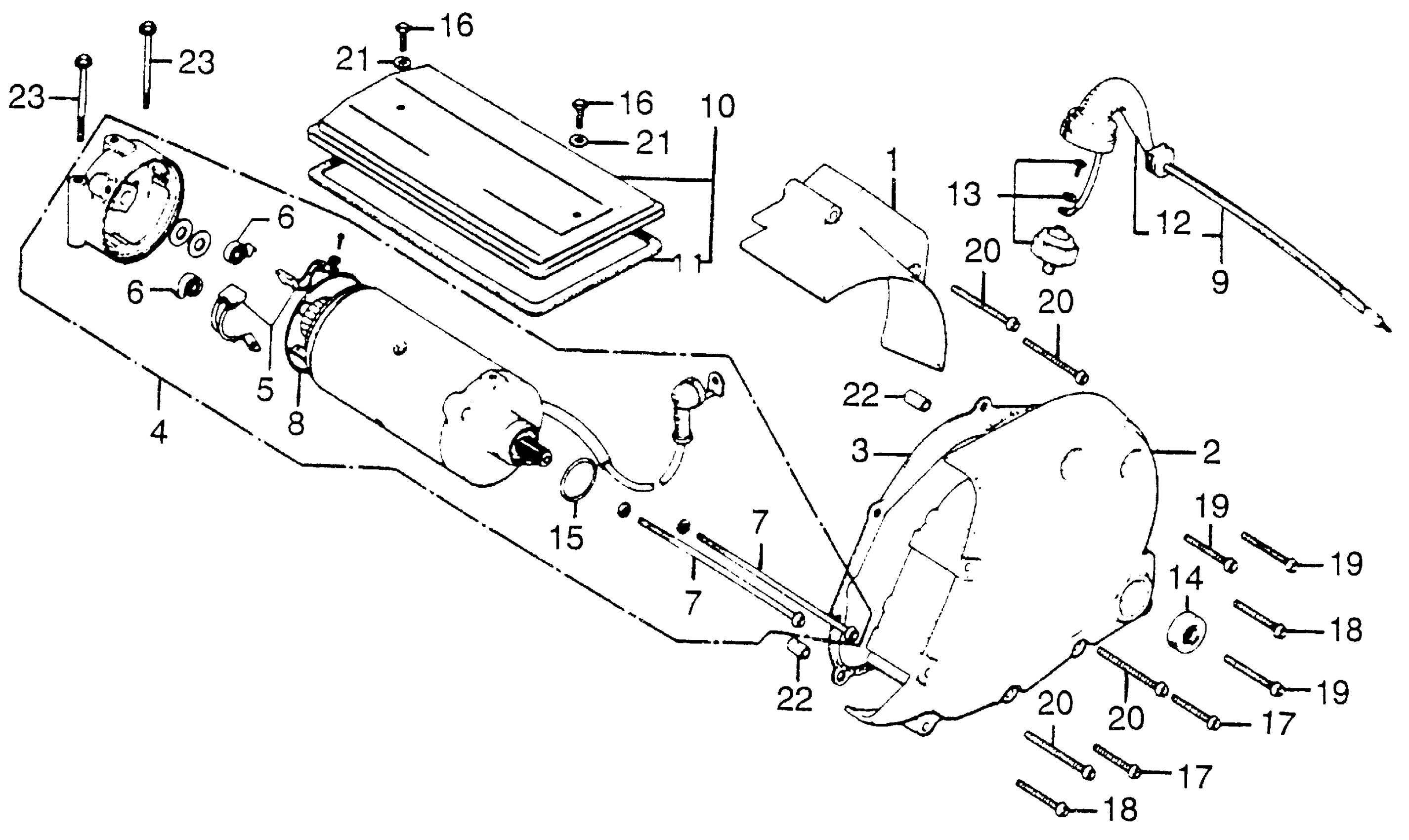

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 STARTING MOTOR + CRANKCASE REAR COVER Diagram

#

Description
Price

1

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-405-010

Unavailable

2

COVER, CRANKCASE TRANSMISSION (NOT AVAILABLE)

11360-300-050

Unavailable

3

GASKET, TRANSMISSION COVER This part replaces 11395-300-040.

11395-300-306

$17.75

3

GASKET, TRANSMISSION COVER

11395-300-306

$17.75

4

MOTOR ASSY., STARTER (NOT AVAILABLE)

31200-300-030

Unavailable

5

BRUSH SET, CARBON

31201-292-158

$24.01

6

SPRING, CARBON BRUSH

31204-292-158

$3.67

7

BOLT, SETTING (NOT AVAILABLE)

31205-286-158

Unavailable

8

O-RING (60X1.4) This part replaces 31206-286-158.

31206-402-008

Unavailable

8

O-RING (60X1.4)

31206-402-008

Unavailable

9

WIRE ASSY., OIL PRESSURE SWITCH (SUMITOMO) (NOT AVAILABLE)

31270-300-154

Unavailable

10

COVER, STARTER MOTOR (NOT AVAILABLE)

31280-300-000

Unavailable

11

GASKET, STARTER MOTOR COVER (NOT AVAILABLE)

31282-300-020

Unavailable

12

GROMMET, OIL PRESSURE SWITCH WIRE (NOT AVAILABLE)

31283-300-000

Unavailable

13

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-333-014.

37240-P13-013

$53.86

13

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$53.86

14

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-005.

91206-286-013

$2.87

14

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$2.87

15

O-RING (24.4X3.1) This part replaces 91309-300-000.

91312-MG7-003

$5.80

15

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$5.80

15

O-RING (24.4X3.1)

91312-MG7-003

$5.80

16

BOLT, HEX. (6X12) This part replaces 92000-06012-02.

92101-06012-0B

$1.07

16

BOLT, HEX. (6X12)

92101-06012-0B

$1.07

17

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.22

17

SCREW, PAN (6X32)

93500-06032-0A

$1.22

18

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

18

SCREW, PAN (6X35)

93500-06035-0A

$1.49

19

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.41

19

SCREW, PAN (6X40)

93500-06040-0A

$1.41

20

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$0.97

20

SCREW, PAN (6X55)

93500-06055-0A

$0.97

21

WASHER, PLAIN (6MM)

94101-06200

$0.63

22

PIN A, DOWEL (8X14)

94301-08140

$2.76

23

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.75

23

BOLT, FLANGE (6X55)

95701-06055-00

$2.75
