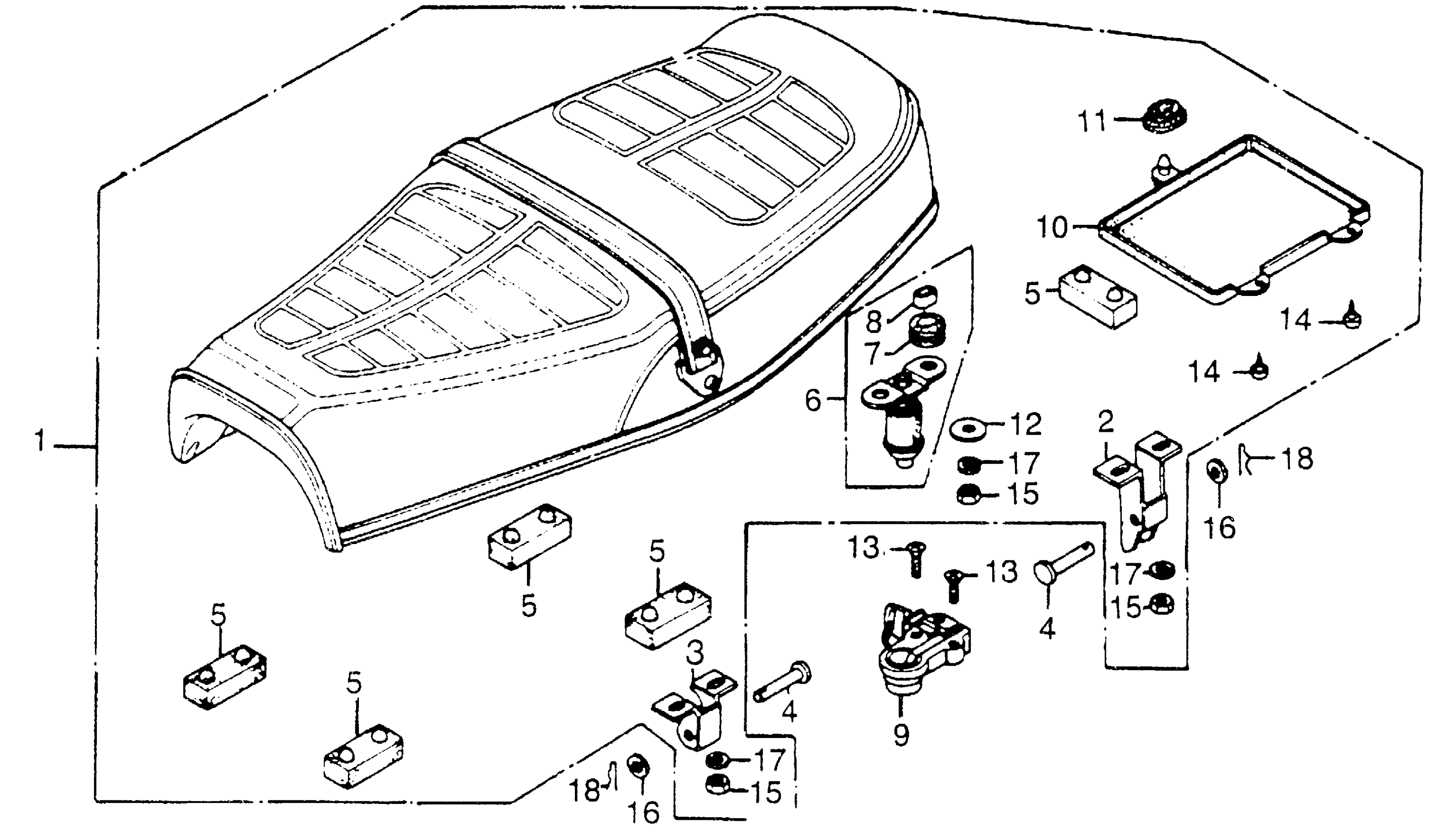

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 SEAT Diagram

#

Description
Price

1

SEAT ASSY. (NOT AVAILABLE)

77200-405-770

Unavailable

2

HINGE A, SEAT (NOT AVAILABLE)

77201-405-000

Unavailable

3

HINGE B, SEAT (NOT AVAILABLE)

77202-405-000

Unavailable

4

PIN, SEAT HINGE (NOT AVAILABLE)

77203-405-000

Unavailable

5

RUBBER B, SEAT SETTING

77205-286-000

$5.28

5

RUBBER B, SEAT SETTING This part replaces 77205-292-010.

77205-286-000

$5.28

6

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

6

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

6

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

7

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

7

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

7

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

8

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

8

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

8

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

9

LOCK ASSY., SEAT (HONDALOCK)

77230-399-007

Unavailable

10

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-342-300

Unavailable

11

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

12

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

12

WASHER, PLAIN (6MM)

94103-06800

$1.49

13

SCREW, FLAT (6X16)

93600-06016-0G

$1.49

13

SCREW, FLAT (6X16) This part replaces 93600-06016-07.

93600-06016-0G

$1.49

14

SCREW, TAPPING (5X8)

93901-25080

$1.49

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

PIN, LOCK (6MM)

94251-06000

$1.49
