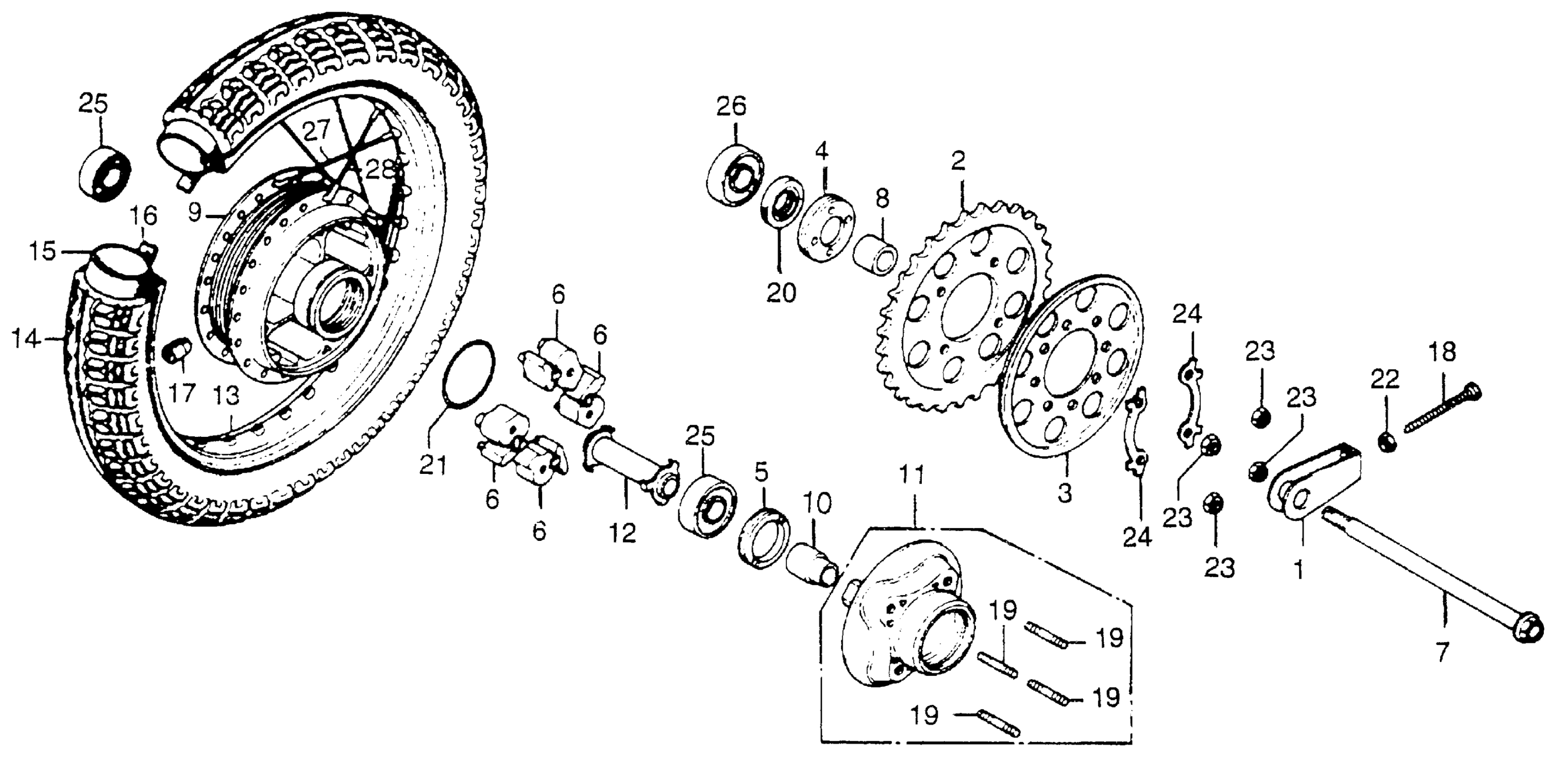

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)

40543-392-000

Unavailable

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE) This part replaces 40543-405-000.

40543-392-000

Unavailable

2

SPROCKET, FINAL DRIVEN (41T) (NOT AVAILABLE)

41201-405-000

Unavailable

3

PLATE, SPROCKET SIDE (NOT AVAILABLE)

41211-405-000

Unavailable

4

RETAINER, RR. WHEEL BEARING

41231-283-000

Unavailable

5

RETAINER, RR. WHEEL BEARING

41231-300-020

Unavailable

6

DAMPER, RR. WHEEL

41241-300-050

$19.38

7

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-393-000.

42301-425-870

Unavailable

7

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-425-870

Unavailable

8

COLLAR, RR. WHEEL SIDE This part replaces 42311-392-000.

42311-425-870

Unavailable

8

COLLAR, RR. WHEEL SIDE

42311-425-870

Unavailable

9

HUB, RR. WHEEL (NOT AVAILABLE) This part replaces 42601-300-040.

42601-300-050

Unavailable

9

HUB, RR. WHEEL (NOT AVAILABLE)

42601-300-050

Unavailable

10

SLEEVE, RR. AXLE

42605-393-000

Unavailable

11

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-405-000

Unavailable

12

COLLAR, RR. DISTANCE

42620-ME1-405

Unavailable

12

COLLAR, RR. DISTANCE This part replaces 42620-300-010.

42620-ME1-405

Unavailable

13

RIM, RR. WHEEL (NOT AVAILABLE) | Use up to Frame SN 2813995 This part replaces 42701-405-003.

42701-425-771

Unavailable

13

RIM, RR. WHEEL (NOT AVAILABLE) This part replaces 42701-405-771.

42701-425-771

Unavailable

14

TIRE, RR. (4.50H17) (4PR) (BS) (NOT AVAILABLE)

42711-MA4-671

Unavailable

14

TIRE, RR. (4.50H17) (4PR) (BS) (NOT AVAILABLE) This part replaces 42711-371-673.

42711-MA4-671

Unavailable

14

TIRE, RR. (4.50H17) (4PR) (BS) (NOT AVAILABLE) This part replaces 42711-371-674.

42711-MA4-671

Unavailable

15

TUBE, TIRE (5.10-17) (INOUE) This part replaces 08400-37100.

42712-MA0-005

Unavailable

15

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-KB7-902.

42712-MA0-005

Unavailable

15

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MA0-003.

42712-MA0-005

Unavailable

15

TUBE, TIRE (5.10-17) (INOUE)

42712-MA0-005

Unavailable

15

TUBE, TIRE (120/90-17) (BS)

42712-MN9-003

Unavailable

15

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-003.

42712-MA0-005

Unavailable

15

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-004.

42712-MA0-005

Unavailable

16

FLAP, TIRE (17)

42713-371-000

$30.54

17

BALANCER, WHEEL (20G)

44606-283-000

$8.89

17

BALANCER, WHEEL (15G)

44607-283-000

$8.08

17

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

17

BALANCER, WHEEL (5G)

44609-283-000

$3.93

18

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

19

BOLT, STUD (12X54) (NOT AVAILABLE)

90128-341-000

Unavailable

20

OIL SEAL (34X55X9)

90753-283-000

$16.11

21

O-RING (68X2.6)

91258-300-013

$5.84

22

NUT, HEX. (8MM)

94002-08000-0S

$1.49

23

NUT, HEX. (12MM)

94030-12000

$1.49

24

WASHER A7, TONGUED (SOURCE: VINTAGE PARTS INC.)

94108-17000

Unavailable

25

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

26

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable

27

SPOKE BS (8X128)

97371-69094-R0

$4.61

27

SPOKE BS (8X128) This part replaces 97371-69096-10.

97371-69094-R0

$4.61

28

SPOKE BS (8X127.5)

97C31-69091-R0

$3.78

28

SPOKE BS (8X127.5) This part replaces 97C31-69095-10.

97C31-69091-R0

$3.78
