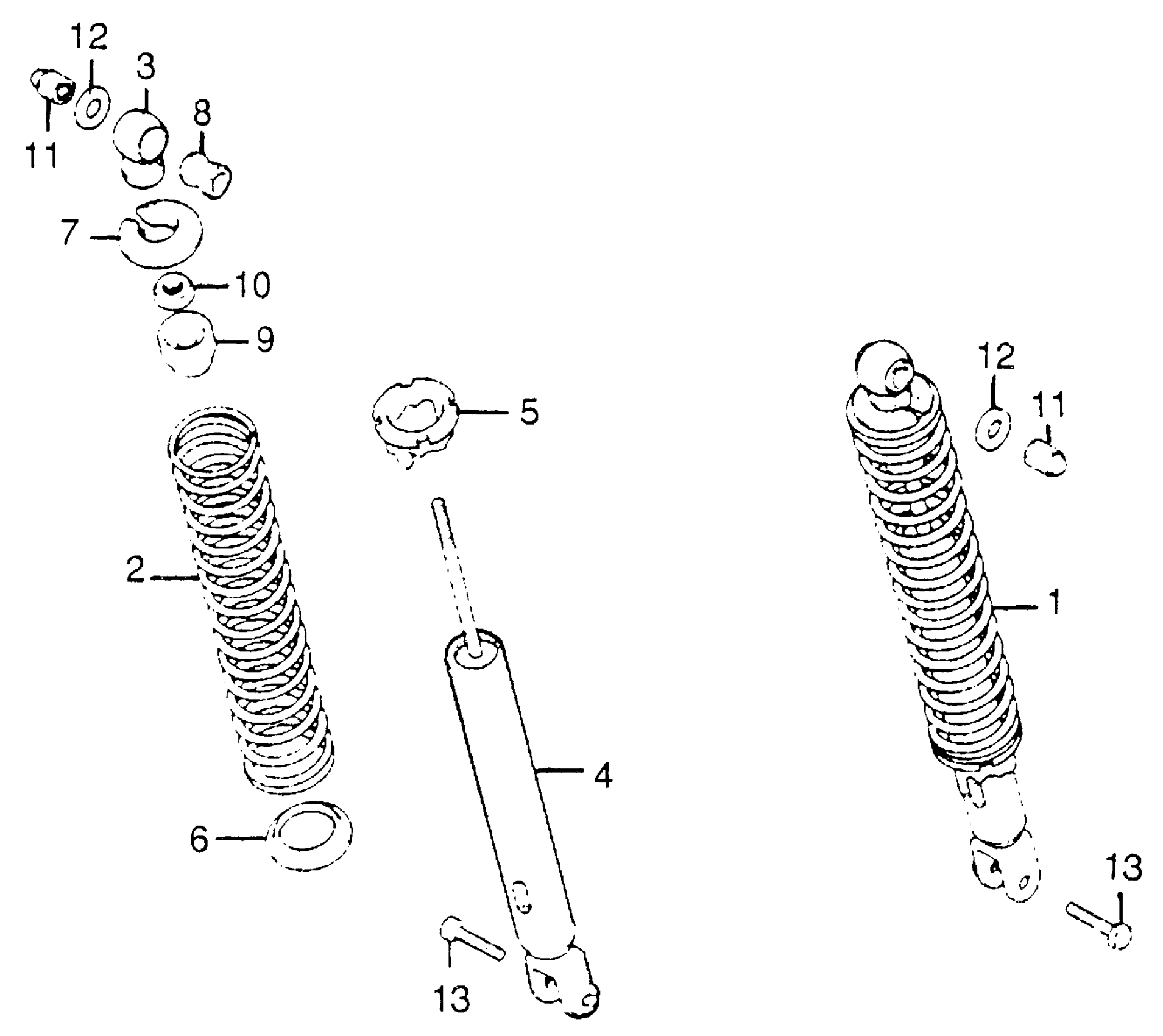

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-405-013

Unavailable

2

SPRING, RR. SHOCK ABSORBER

52401-405-000

Unavailable

3

JOINT (UPPER)

52403-410-013

Unavailable

4

DAMPER, RR. (SHOWA) (NOT AVAILABLE)

52410-410-003

Unavailable

5

ADJUSTER, SPRING (NOT AVAILABLE)

52422-410-003

Unavailable

6

SEAT, SPRING (LOWER) (SHOWA) (NOT AVAILABLE)

52458-410-003

Unavailable

8

RUBBER, JOINT

52484-292-000

$5.87

9

RUBBER, STOPPER (NOT AVAILABLE)

52517-410-003

Unavailable

10

NUT, HEX. (11MM) (NOT AVAILABLE)

90301-376-003

Unavailable

11

NUT, FLANGE (10MM)

90309-315-000

$5.35

12

WASHER (10.3MM)

90521-292-000

$3.42

13

BOLT, HEX. (10X32) This part replaces 93200-10032-0B.

93201-10032-0B

$2.92

13

BOLT, HEX. (10X32)

93201-10032-0B

$2.92
