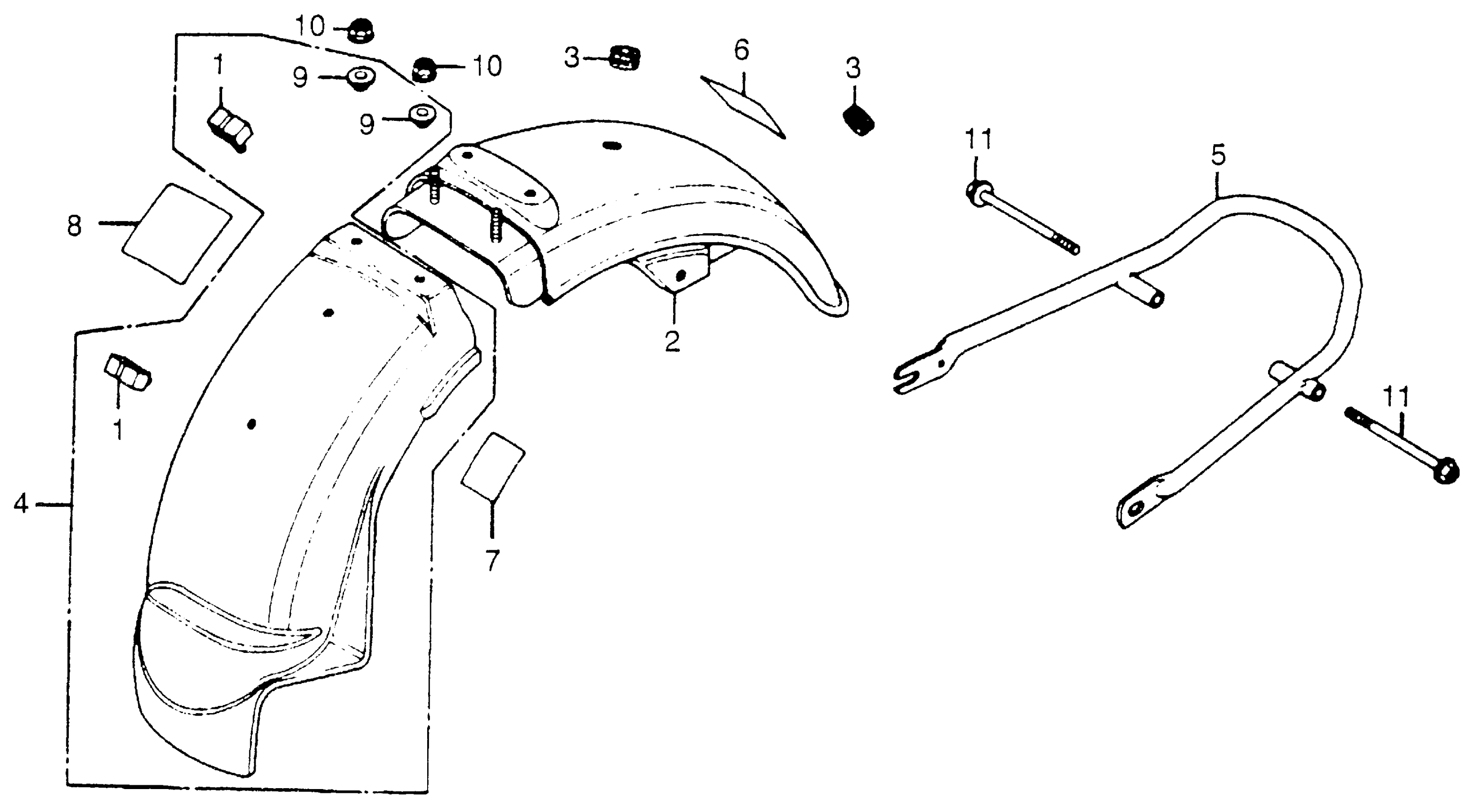

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 REAR FENDER Diagram

#

Description

Price

1

GROMMET, CABLE

32985-300-000

$3.19

2

FENDER A, RR. (NOT AVAILABLE)

80100-405-000

Unavailable

3

GROMMET, WIRE HARNESS

32983-011-000

$3.16

4

FENDER B, RR. (NOT AVAILABLE)

80105-341-010

Unavailable

5

BUMPER, RR. (NOT AVAILABLE)

84101-405-000

Unavailable

6

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-405-670

Unavailable

7

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-405-770

Unavailable

8

LABEL, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-371-670

Unavailable

9

WASHER (6X20)

90512-300-000

$3.83

10

NUT, FLANGE (6MM)

94050-06000

$0.60

11

BOLT, FLANGE (8X80) This part replaces 95700-08080-00.

95701-08080-00

$1.59

11

BOLT, FLANGE (8X80)

95701-08080-00

$1.59
