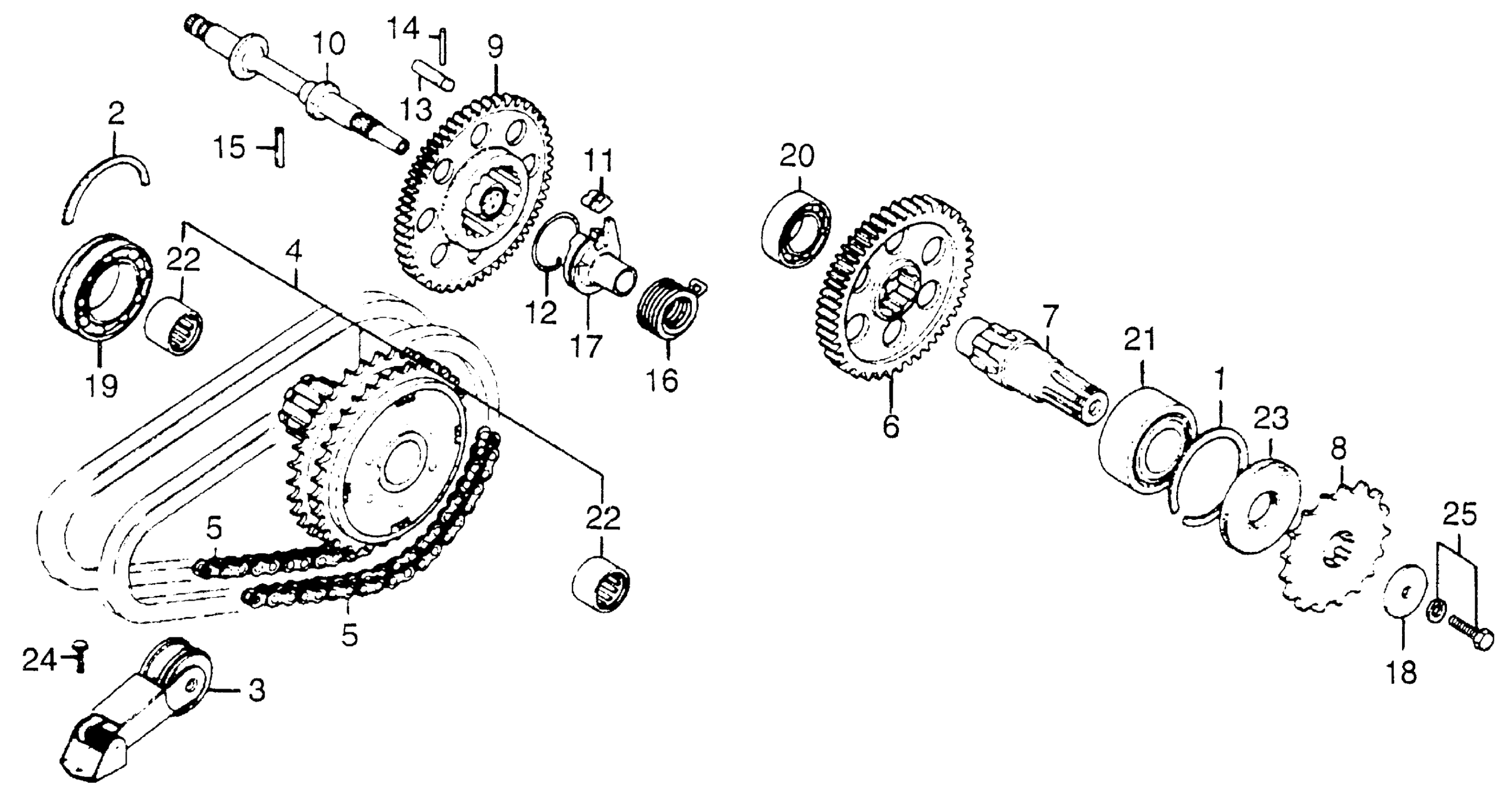

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 PRIMARY CHAIN + KICK STARTER Diagram

#

Description
Price

1

RING, BEARING SETTING (66.5MM) (NOT AVAILABLE)

13491-300-000

Unavailable

2

RING B, BALL BEARING SETTING (NOT AVAILABLE)

13496-300-000

Unavailable

3

TENSIONER, PRIMARY CHAIN

13620-300-010

Unavailable

4

SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)

23110-392-000

Unavailable

5

CHAIN, PRIMARY (68L) (TAKASAGO) This part replaces 23131-300-015.

23131-300-315

Unavailable

5

CHAIN, PRIMARY (68L) (TAKASAGO)

23131-300-315

Unavailable

6

GEAR, FINAL DRIVEN (50T)

23511-392-000

Unavailable

7

SHAFT, FINAL DRIVEN

23521-405-000

Unavailable

8

SPROCKET, DRIVE (15T)

23801-405-010

Unavailable

9

GEAR, KICK STARTER (NOT AVAILABLE)

28210-300-000

Unavailable

10

SPINDLE, KICK STARTER

28250-300-020

Unavailable

11

PAWL, KICK STARTER

28252-300-020

Unavailable

12

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28253-300-000

Unavailable

13

PIN, KICK STOPPER (NOT AVAILABLE)

28254-300-000

Unavailable

14

PIN (4X37) (NOT AVAILABLE)

28255-300-000

Unavailable

15

PIN (6X35) (NOT AVAILABLE)

28256-300-000

Unavailable

16

SPRING, KICK STARTER RETURN (NOT AVAILABLE)

28261-300-010

Unavailable

17

FLANGE, KICK STARTER (NOT AVAILABLE)

28271-393-000

Unavailable

18

WASHER (8MM) (NOT AVAILABLE)

90401-405-000

Unavailable

19

BEARING, SPECIAL BALL (6008) (NOT AVAILABLE)

91004-300-000

Unavailable

20

BEARING, RADIAL BALL (6205) This part replaces 91006-300-008.

96100-62050-00

$18.63

20

BEARING, RADIAL BALL (6205) This part replaces 96100-62050.

96100-62050-00

$18.63

20

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63

20

BEARING, RADIAL BALL (6205)

96100-62050-10

$20.75

21

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$95.20

21

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

22

BEARING, NEEDLE (25X32X20)

91010-300-008

Unavailable

23

OIL SEAL (29.8X62X7)

91205-405-005

Unavailable

24

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

25

BOLT-WASHER (8X20)

93402-08020-00

$1.92

25

BOLT-WASHER (8X20) This part replaces 93412-08020-00.

93402-08020-00

$1.92

25

BOLT-WASHER (8X20) This part replaces 93482-08020-00.

93402-08020-00

$1.92
