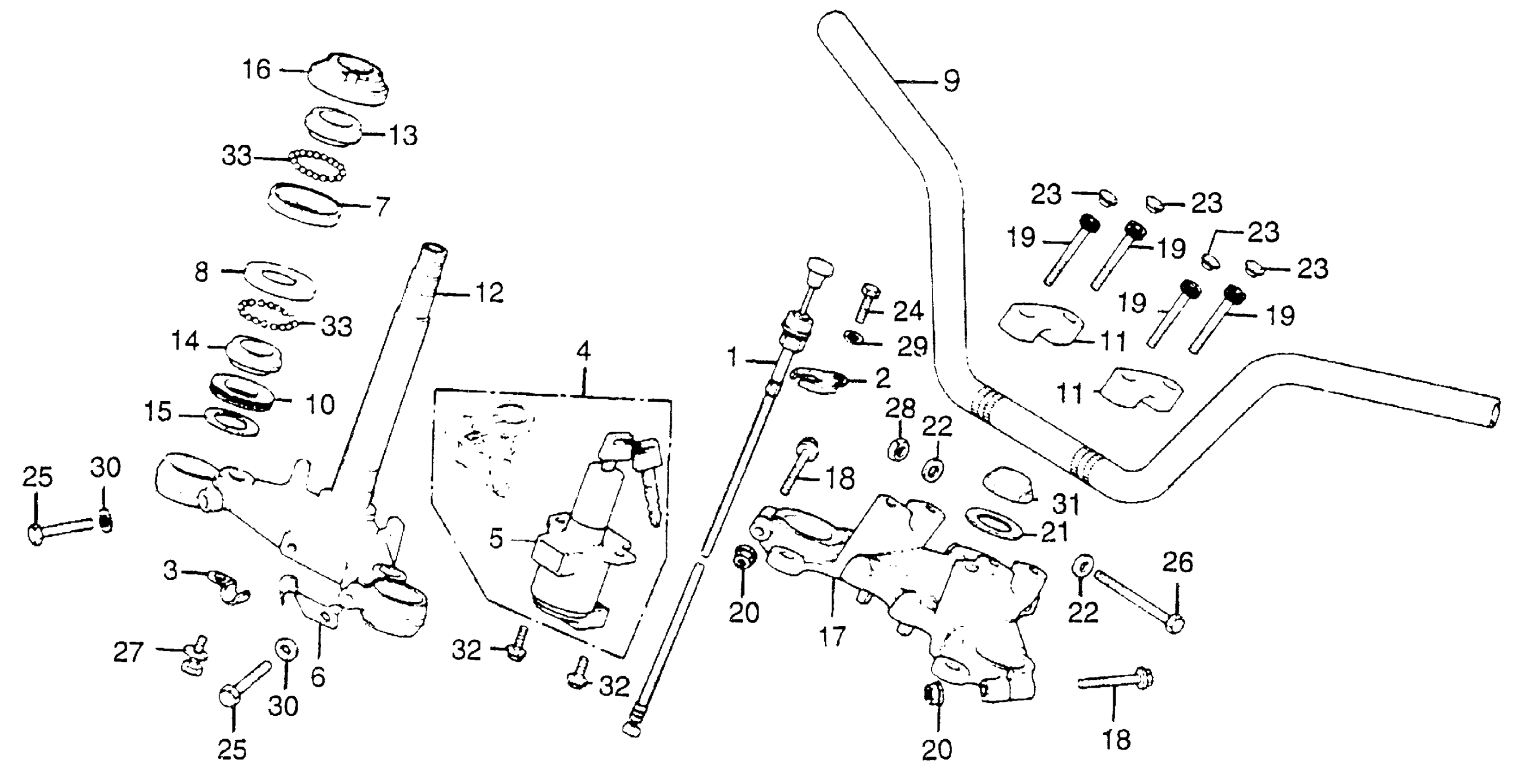

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 HANDLEBAR + TOP BRIDGE + STEERING STEM Diagram

#

Description
Price

1

CABLE, CHOKE

17950-404-670

Unavailable

1

CABLE, CHOKE This part replaces 17950-405-000.

17950-404-670

Unavailable

2

STAY, CHOKE CABLE (NOT AVAILABLE)

17951-404-670

Unavailable

3

CLIP, WIRE HARNESS (NOT AVAILABLE)

32123-390-000

Unavailable

4

LOCK SET (NOT AVAILABLE) This part replaces 35010-393-770.

35010-393-772

Unavailable

4

LOCK SET (NOT AVAILABLE) This part replaces 35010-393-771.

35010-393-772

Unavailable

4

LOCK SET (NOT AVAILABLE)

35010-393-772

Unavailable

5

LOCK SET (HONDALOCK)

35010-377-007

Unavailable

5

LOCK SET (HONDALOCK) This part replaces 35100-377-007.

35010-377-007

Unavailable

6

CLIP, FR. BRAKE HOSE

45147-393-770

Unavailable

7

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

7

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

7

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

8

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

8

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

8

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

9

HANDLEBAR (NOT AVAILABLE)

53100-405-010

Unavailable

10

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

10

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

11

HOLDER, HANDLE (UPPER)

53131-371-000

$32.20

12

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-392-000ZA

Unavailable

13

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

13

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

13

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

14

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

14

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

14

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

15

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

16

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

17

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-405-000

Unavailable

18

BOLT, FLANGE (7X54)

90155-369-000

$6.01

19

BOLT, HEX. SOCKET (8X32)

90185-371-000

$6.28

20

NUT, FLANGE (7MM)

90355-369-000

$4.94

21

WASHER, STEERING STEM

90503-283-000

$4.37

22

WASHER, PLAIN (8MM)

90518-921-000

$1.49

22

WASHER, PLAIN (8MM) This part replaces 90518-931-000.

90518-921-000

$1.49

22

WASHER, PLAIN (8MM) This part replaces 90555-283-000.

90518-921-000

$1.49

23

CAP, SOCKET BOLT

91456-371-770

$3.47

24

BOLT, HEX. (8X16) This part replaces 92000-08016-0B.

92101-08016-0B

$2.11

24

BOLT, HEX. (8X16)

92101-08016-0B

$2.11

25

BOLT, HEX. (10X40) This part replaces 92000-10040-0A.

92101-10040-0A

$2.84

25

BOLT, HEX. (10X40)

92101-10040-0A

$2.84

26

BOLT, HEX. (8X74) This part replaces 93000-08074-0B.

93101-08074-0B

Unavailable

27

BOLT-WASHER (8X20) This part replaces 93481-08020-00.

93401-08020-00

$1.49

28

NUT, HEX. (8MM)

94001-08020-0S

$1.49

29

WASHER, FLAT (8MM)

94102-08200

$1.49

30

WASHER, PLAIN (10MM)

94102-10000

$1.49

31

NUT, STEERING STEM

90304-415-000

$19.83

31

NUT, STEERING STEM This part replaces 95020-11300.

90304-415-000

$19.83

32

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

32

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

33

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
