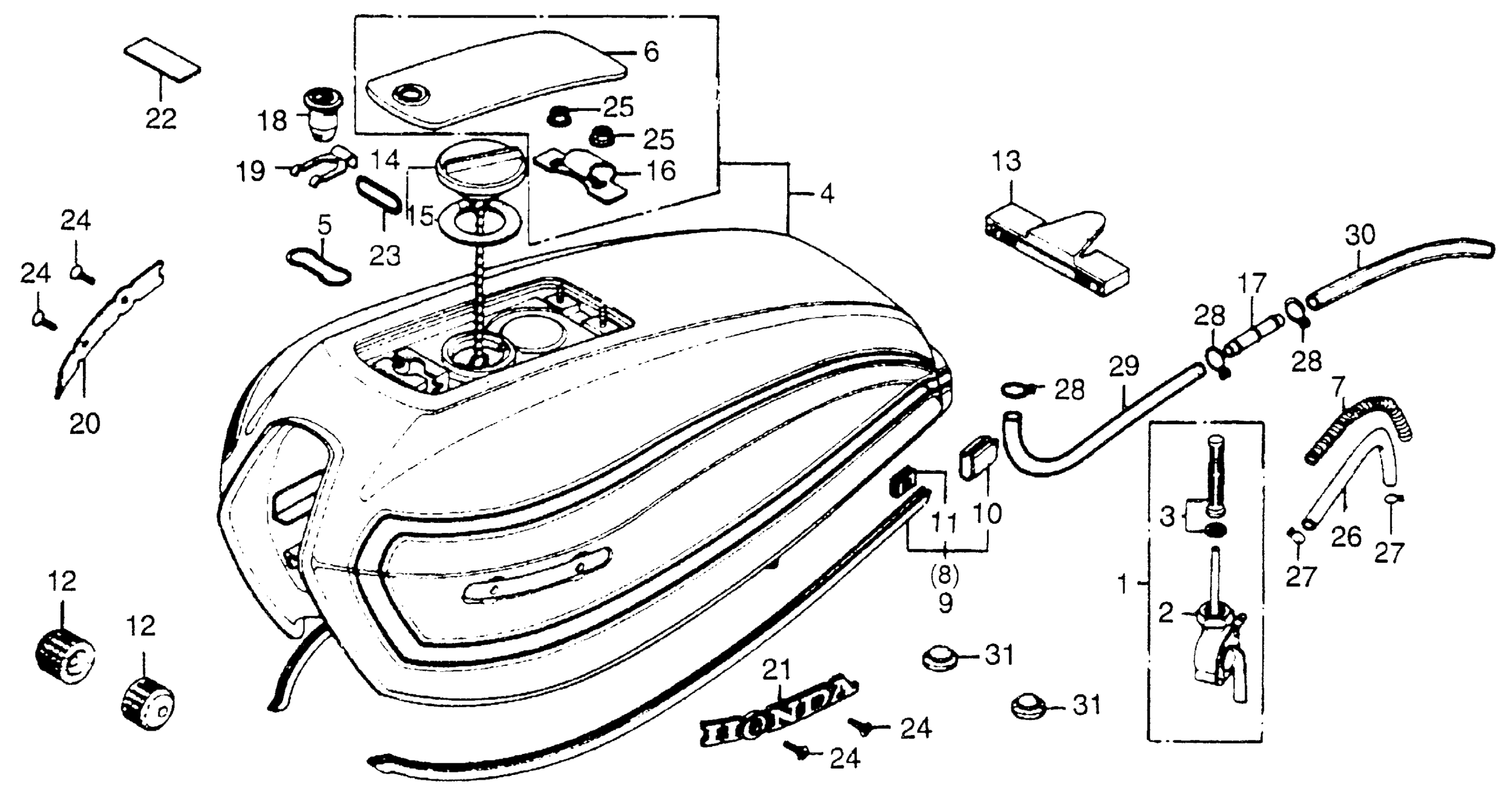

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE) | Use up to Frame SN 2827572 This part replaces 16950-405-830.

16950-405-831

Unavailable

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-405-831

Unavailable

2

BODY SET, PETCOCK (NOT AVAILABLE) | Use up to Frame SN 2827572 This part replaces 16951-405-830.

16951-405-831

Unavailable

2

BODY SET, PETCOCK (NOT AVAILABLE)

16951-405-831

Unavailable

3

SCREEN SET, FUEL STRAINER | Use up to Frame SN 2827572 This part replaces 16952-388-005.

16952-388-015

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-388-015

Unavailable

3

SCREEN SET, FUEL STRAINER | Use up to Frame SN 2827572

16952-388-015

Unavailable

4

TANK SUB-ASSY., FUEL *R9CS* (CANDY ALPHA RED) (NOT AVAILABLE)

17520-405-770ZA

Unavailable

4

TANK SUB-ASSY., FUEL *NH1* (BLACK) (NOT AVAILABLE)

17520-405-770ZB

Unavailable

5

CLIP, FILLER LOCK (NOT AVAILABLE)

17526-390-000

Unavailable

6

LID, FUEL FILLER *R9CS* (CANDY ALPHA RED) (NOT AVAILABLE)

17531-405-000ZA

Unavailable

6

LID, FUEL FILLER *NH1* (BLACK) (NOT AVAILABLE)

17531-405-000ZG

Unavailable

8

MOLDING, R. FUEL TANK (NOT AVAILABLE)

17541-405-000

Unavailable

9

MOLDING, L. FUEL TANK (NOT AVAILABLE)

17542-405-000

Unavailable

10

CLIP A, FUEL TANK MOLDING (NOT AVAILABLE)

17544-323-000

Unavailable

11

CLIP B, FUEL TANK MOLDING

17545-323-010

Unavailable

12

RUBBER, FR. FUEL TANK

17611-283-010

$8.04

13

RUBBER, RR. FUEL TANK This part replaces 17613-392-000.

17613-399-000

$23.73

13

RUBBER, RR. FUEL TANK

17613-399-000

$23.73

14

CAP, FUEL TANK This part replaces 17620-377-720.

17620-399-010

Unavailable

14

CAP, FUEL TANK This part replaces 17620-399-000.

17620-399-010

Unavailable

14

CAP, FUEL TANK

17620-399-010

Unavailable

15

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

15

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

16

SPRING, FUEL FILLER LID (NOT AVAILABLE)

17735-390-000

Unavailable

17

JOINT, DRAIN CONNECTING TUBE (NOT AVAILABLE)

17738-393-000

Unavailable

18

LOCK, FILLER LID (HONDALOCK)

37220-390-007

Unavailable

19

SPRING, LOCK SET

37221-390-000

Unavailable

20

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-405-000

Unavailable

21

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-405-000

Unavailable

22

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$4.04

22

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680B.

87560-375-680ZE

Unavailable

22

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$4.04

22

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680ZB.

87560-375-680ZE

Unavailable

22

MARK, DRIVE CAUTION (TYPEB)

87560-375-680ZE

Unavailable

22

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$4.04

23

O-RING (23X2)

91354-371-000

$3.19

23

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$3.19

24

SCREW, OVAL (4X6)

93700-04006-0G

$1.49

25

NUT, FLANGE (6MM)

94050-06080

$1.49

26

BULK HOSE, FUEL (5.5X3000) (5.5X160)

95001-55003-60M

$47.32

27

CLIP, TUBE (B10)

95002-02100

$1.90

28

CLIP, TUBE (B12.5)

95002-02130

$1.49

29

*95003-27001-60M This part replaces 95003-27040-31.

95003-27040-31S

Unavailable

30

TUBE, VINYL (9X13X550) (NOT AVAILABLE)

95003-27055-31

Unavailable

31

RUBBER C, STAND STOPPER

95011-63000

$3.90
