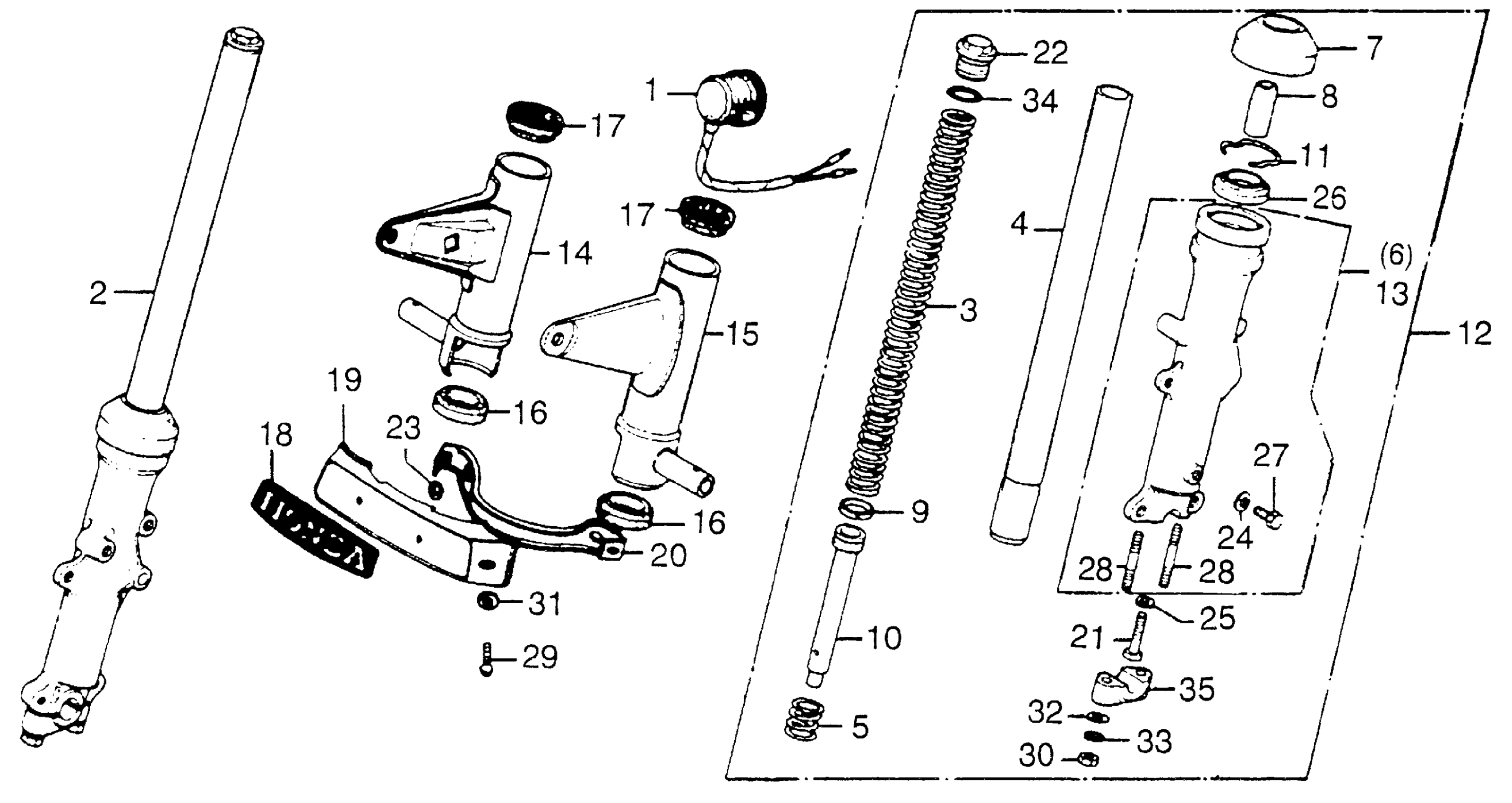

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 FRONT FORK Diagram

#

Description
Price

1

BUZZER ASSY., TURN SIGNAL (NOT AVAILABLE)

38400-341-674

Unavailable

2

FORK ASSY., R. FR. (SHOWA)

51400-393-003

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-393-000

Unavailable

4

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-393-003

Unavailable

5

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

6

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE)

51421-393-003

Unavailable

7

DUST SEAL, FR. FORK

51425-375-003

Unavailable

8

PIECE, OIL LOCK (NOT AVAILABLE)

51432-371-003

Unavailable

9

RING, PISTON

51437-329-010

$7.14

10

SEAT (LOWER) (NOT AVAILABLE)

51440-393-003

Unavailable

11

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

11

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

12

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-393-003

Unavailable

13

CASE, L. (LOWER) (SHOWA)

51521-393-003

Unavailable

14

COVER, R. FR. FORK (NOT AVAILABLE)

51602-405-000

Unavailable

15

COVER, L. FR. FORK (NOT AVAILABLE)

51606-405-000

Unavailable

16

RUBBER B, FR. FORK COVER

51622-323-000

Unavailable

17

RUBBER, HEADLIGHT STAY

61315-340-000

Unavailable

18

EMBLEM, FR. (NOT AVAILABLE)

87126-405-000

Unavailable

19

GARNISH, FR. EMBLEM (NOT AVAILABLE)

87127-405-000

$40.97

20

STAY, FR. EMBLEM (NOT AVAILABLE)

87128-405-000

Unavailable

21

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

21

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

22

BOLT, FR. FORK

90123-300-000

$47.61

23

NUT, SPEED (3MM) This part replaces 90313-512-000.

90313-567-000

$3.97

23

NUT, SPEED (3MM)

90313-567-000

$3.97

24

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

25

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

26

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

26

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

26

OIL SEAL (35X48X11) This part replaces 91255-300-033.

91255-KBH-003

$13.24

26

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

26

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

26

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

27

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

27

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

28

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

28

BOLT, STUD (8X50)

92900-08028-3B

$1.59

29

SCREW, PAN (5X12)

93500-05012-0B

$1.49

30

NUT, HEX. (8MM)

94030-08000

$1.49

31

WASHER, PLAIN (5MM)

94101-05800

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

WASHER, SPRING (8MM)

94111-08000

$1.49

34

O-RING (23X2.8)

94608-50000

$1.49

35

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
