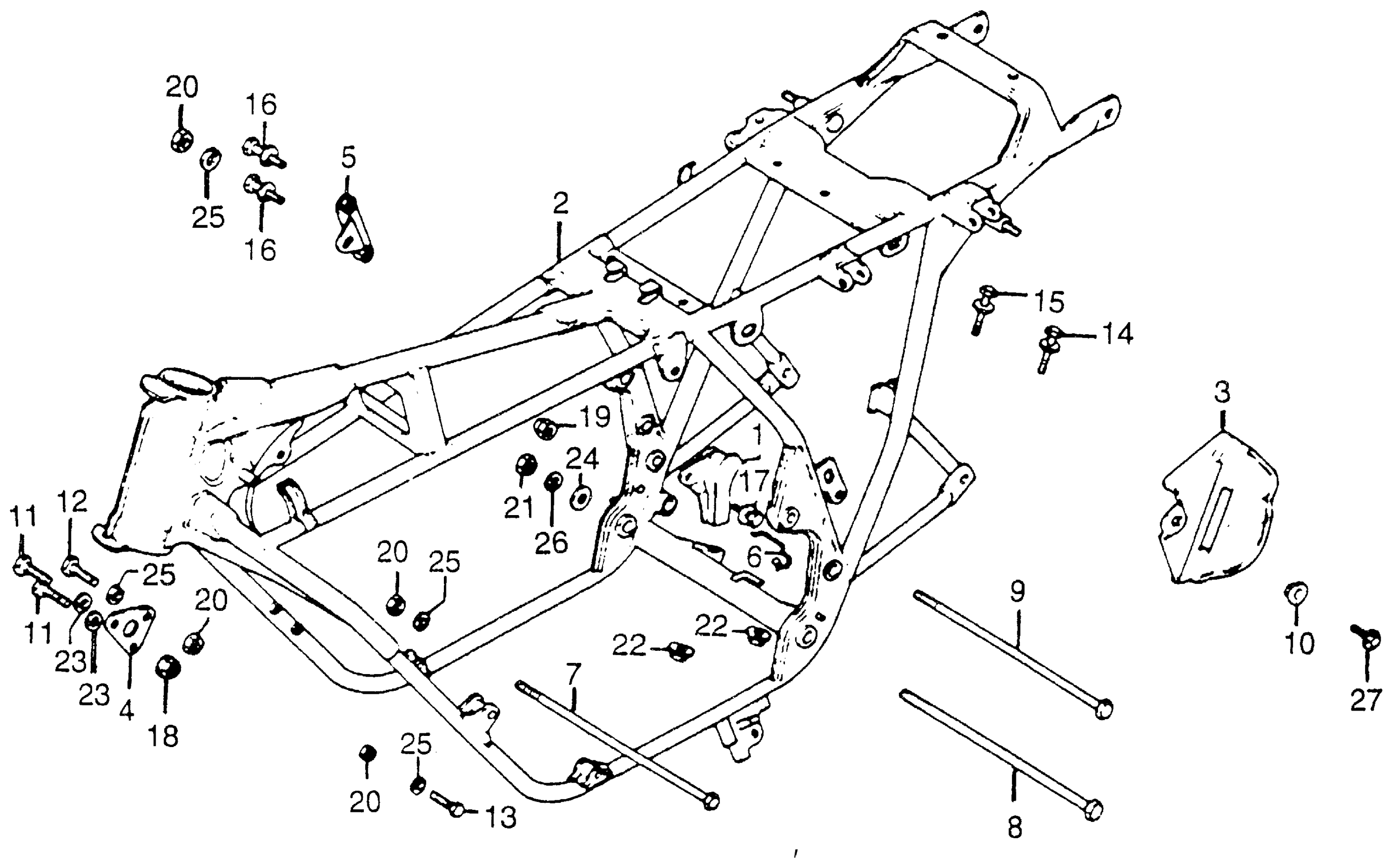

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 FRAME Diagram
#
Description
Price
1
GUIDE A, DRAIN TUBE | Use up to Frame SN 2801783
17377-405-770
Unavailable
1
GUIDE A, DRAIN TUBE | Use from Frame SN 2801784
17377-405-771
Unavailable
2
FRAME *NH1* (BLACK) | Use up to Frame SN 2801783
50100-405-770ZA
Unavailable
2
FRAME *NH1* (BLACK) | Use from Frame SN 2801784 to 2850000
50100-405-771ZA
Unavailable
2
FRAME *NH1* (BLACK) | Use from Frame SN 2850001
50100-405-790ZA
Unavailable
3
PROTECTOR, CHAIN (NOT AVAILABLE)
50260-405-000
Unavailable
4
BRACKET, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50351-300-040B.
50351-405-970B
Unavailable
4
BRACKET, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)
50351-405-970B
Unavailable
5
BRACKET, RR. ENGINE HANGER (NOT AVAILABLE)
50356-392-000
Unavailable
6
GUIDE, DRAIN TUBE
50527-405-000
Unavailable
7
BOLT A, ENGINE HANGER (NOT AVAILABLE)
90152-300-010
Unavailable
8
BOLT, RR. ENGINE HANGER (LOWER) (NOT AVAILABLE)
90155-392-000
Unavailable
9
BOLT C, ENGINE HANGER (NOT AVAILABLE)
90156-300-000
Unavailable
11
BOLT, HEX. (8X60) (NOT AVAILABLE)
92200-08060-0A
Unavailable
12
BOLT, HEX. (10X50) (SOURCE: VINTAGE PARTS INC.)
92200-10050-0A
Unavailable
13
BOLT, HEX. (10X80)
92200-10080-0A
Unavailable
14
BOLT-WASHER (8X40)
93481-08040-00
Unavailable
15
BOLT-WASHER (8X45) (SOURCE: VINTAGE PARTS INC.)
93481-08045-00
Unavailable
17
BOLT-WASHER (6X12) | Use up to Frame SN 2801783 This part replaces 93493-06012-00.
93403-06012-00
$1.74
