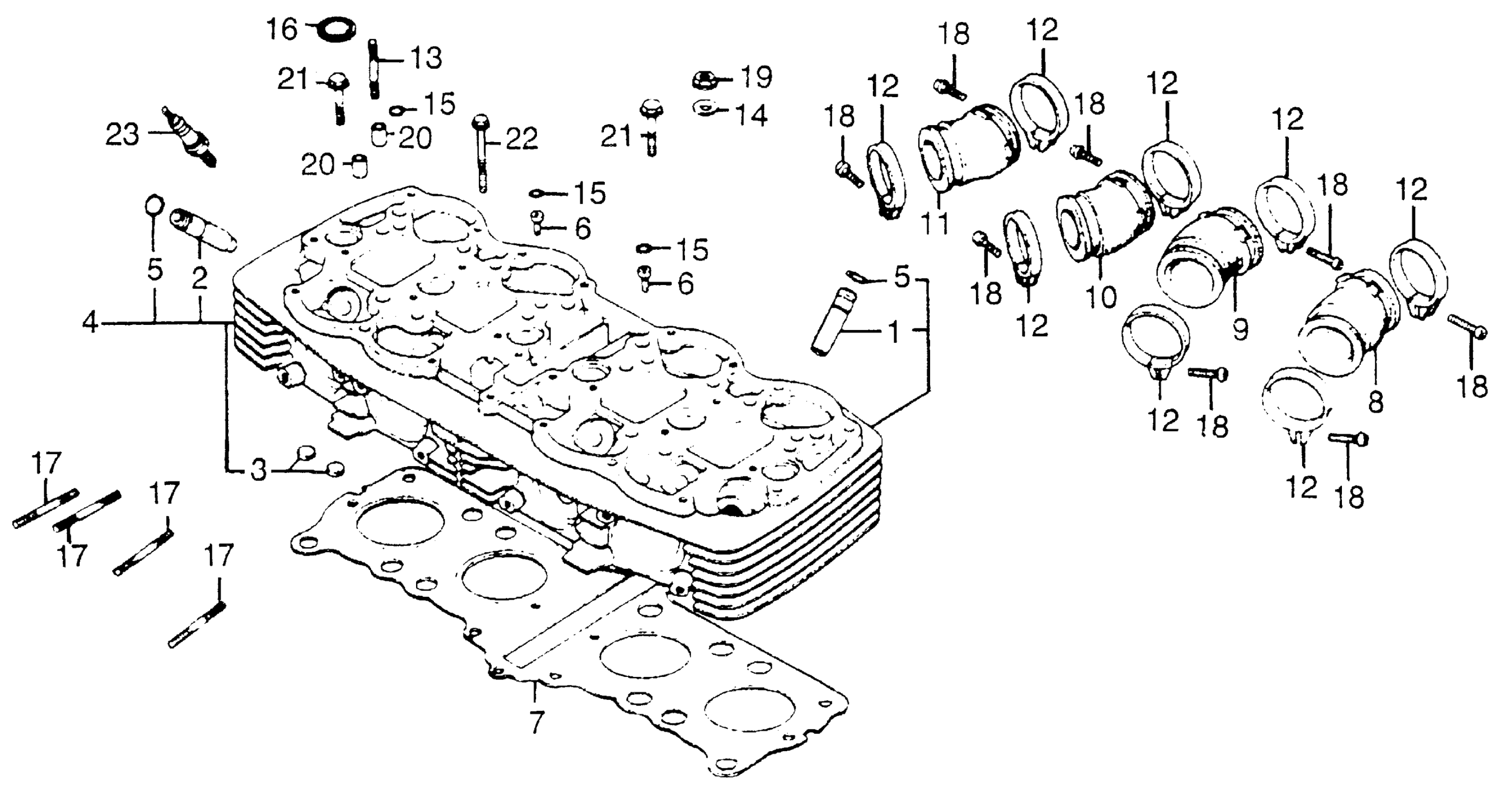

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-410-300.

12021-410-405

Unavailable

1

GUIDE, VALVE

12021-410-405

Unavailable

2

GUIDE, VALVE

12021-410-405

Unavailable

2

GUIDE, VALVE This part replaces 12023-410-300.

12021-410-405

Unavailable

3

RUBBER, INSERT This part replaces 12195-300-000.

12620-286-000

$5.85

3

RUBBER, INSERT

12620-286-000

$5.85

4

CYLINDER HEAD (NOT AVAILABLE)

12200-392-000

Unavailable

5

CLIP, VALVE GUIDE

12211-250-310

$4.39

6

ORIFICE, OIL CONTROL (NOT AVAILABLE)

12238-300-010

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-300-004.

12251-300-306

Unavailable

7

GASKET, CYLINDER HEAD

12251-300-306

Unavailable

8

INSULATOR 1, CARBURETOR

16211-405-000

$22.54

9

INSULATOR 2, CARBURETOR

16212-405-000

Unavailable

10

INSULATOR 3, CARBURETOR

16213-405-000

Unavailable

11

INSULATOR 4, CARBURETOR

16214-405-000

Unavailable

12

BAND, INSULATOR

17255-405-000

Unavailable

13

BOLT, STUD (6X58) (NOT AVAILABLE)

90055-300-000

Unavailable

14

WASHER, THRUST (14MM)

90485-035-000

$2.92

15

O-RING (5.8X1.9)

91305-323-000

$2.92

15

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

16

RUBBER, SEALING

91318-300-013

$4.85

17

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

17

BOLT 2, STUD (8X32)

92900-08032-0E

$2.17

18

SCREW, PAN (4X22)

93500-04022-0A

$1.49

18

SCREW, PAN (4X22) This part replaces 93500-04022-1A.

93500-04022-0A

$1.49

19

NUT, FLANGE (8MM)

94050-08000

$1.49

20

PIN A, DOWEL (8X14)

94301-08140

$2.25

21

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

21

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

22

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

22

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

23

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

23

SPARK PLUG (X24ES-U) (DENSO)

98069-58727

$2.20
