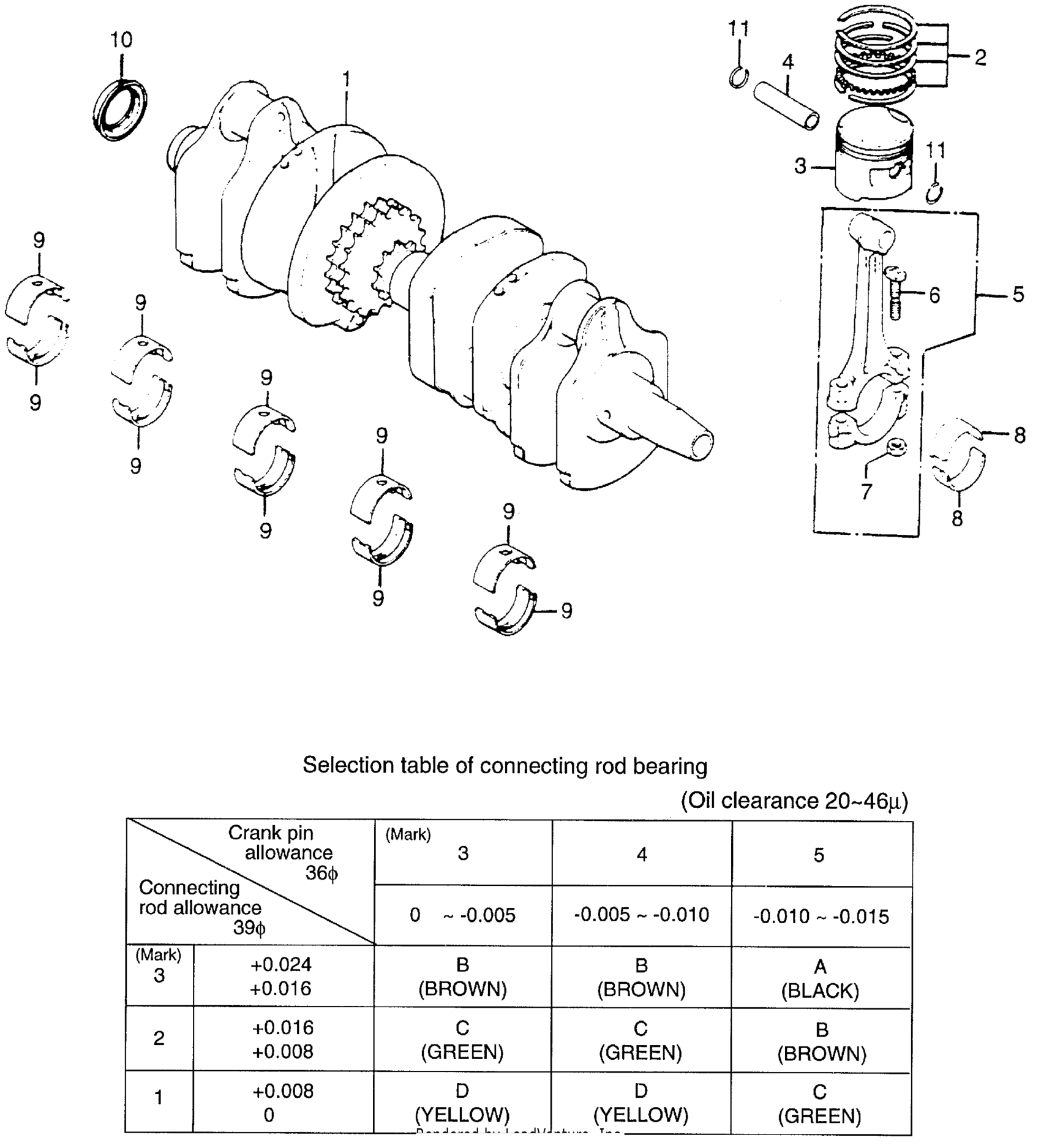

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-300-050

Unavailable

2

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-392-005.

13011-392-004

Unavailable

2

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-405-601.

13011-392-004

Unavailable

2

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-405-602.

13011-392-004

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE) | (Optional). This part replaces 13021-405-601.

13021-392-000

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE) | (Optional). This part replaces 13021-405-602.

13021-392-000

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-405-601.

13031-392-000

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-405-602.

13031-392-000

Unavailable

2

RING SET, PISTON (OS 0.75) (NOT AVAILABLE) | (Optional). This part replaces 13041-405-601.

13041-392-000

Unavailable

2

RING SET, PISTON (OS 0.75) (NOT AVAILABLE) | (Optional). This part replaces 13041-405-602.

13041-392-000

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13051-405-601.

13051-392-000

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13051-405-602.

13051-392-000

Unavailable

2

RING SET, PISTON (STD) (RIKEN)

13011-392-004

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13021-392-000

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13031-392-000

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE) | (Optional).

13041-392-000

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-392-020

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-392-020

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-392-020

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-392-020

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-392-020

Unavailable

4

PIN, PISTON

13111-300-000

$15.82

5

ROD D, CONNECTING (NOT AVAILABLE) This part replaces 13202-300-000.

13204-300-000

Unavailable

5

ROD D, CONNECTING (NOT AVAILABLE) This part replaces 13203-300-000.

13204-300-000

Unavailable

5

ROD D, CONNECTING (NOT AVAILABLE)

13204-300-000

Unavailable

5

ROD F, CONNECTING

13206-300-000

Unavailable

5

ROD H, CONNECTING This part replaces 13207-300-000.

13208-300-000

Unavailable

5

ROD H, CONNECTING

13208-300-000

Unavailable

5

ROD H, CONNECTING This part replaces 13210-300-000.

13208-300-000

Unavailable

6

BOLT, CONNECTING ROD | Use from Engine SN 3007575

13213-KV0-000

$5.90

6

BOLT, CONNECTING ROD (TOKAI) | Use up to Engine SN 3007574

13213-333-003

Unavailable

6

BOLT, CONNECTING ROD | Use from Engine SN 3007575 This part replaces 13213-410-003.

13213-KV0-000

$5.90

7

NUT, CONNECTING ROD (NOT AVAILABLE)

13214-300-000

Unavailable

8

BEARING B, CONNECTING ROD (BLACK) (TAIHO) This part replaces 13215-300-013.

13215-413-015

$16.52

8

BEARING B, CONNECTING ROD (DAIDO)

13216-300-013

$17.52

8

BEARING C, CONNECTING ROD (BROWN) (TAIHO)

13216-413-015

$16.52

8

BEARING D, CONNECTING ROD (GREEN) (TAIHO) This part replaces 13217-300-013.

13217-413-015

$16.52

8

BEARING D, CONNECTING ROD (GREEN) (TAIHO)

13217-413-015

$16.52

8

BEARING E, CONNECTING ROD (YELLOW) (TAIHO) This part replaces 13218-300-013.

13218-413-015

$17.31

8

BEARING E, CONNECTING ROD (YELLOW) (TAIHO)

13218-413-015

$17.31

9

BEARING A, CRANKSHAFT (BLACK) (DAIDO) This part replaces 13315-300-013.

13315-425-003

$18.95

9

BEARING A, CRANKSHAFT (BLACK) (DAIDO) This part replaces 13315-422-003.

13315-425-003

$18.95

9

BEARING A, CRANKSHAFT (BLACK) (DAIDO)

13315-425-003

$18.95

9

BEARING B, CRANKSHAFT (BROWN) (DAIDO)

13316-300-013

$20.10

9

BEARING B, CRANKSHAFT (BROWN) (DAIDO) This part replaces 13316-422-003.

13316-425-003

$18.95

9

BEARING B, CRANKSHAFT (BROWN) (DAIDO)

13316-425-003

$18.95

9

BEARING C, CRANKSHAFT (GREEN) (DAIDO) This part replaces 13317-300-013.

13317-425-003

$18.95

9

BEARING C, CRANKSHAFT (GREEN) (DAIDO) This part replaces 13317-422-003.

13317-425-003

$18.95

9

BEARING C, CRANKSHAFT (GREEN) (DAIDO)

13317-425-003

$18.95

9

BEARING D, CRANKSHAFT (YELLOW) (DAIDO) This part replaces 13318-300-013.

13318-425-003

$21.05

9

BEARING D, CRANKSHAFT (YELLOW) (DAIDO) This part replaces 13318-422-003.

13318-425-003

$21.05

9

BEARING D, CRANKSHAFT (YELLOW) (DAIDO)

13318-425-003

$21.05

10

OIL SEAL (30X42X8)

91201-300-003

$12.99

11

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
