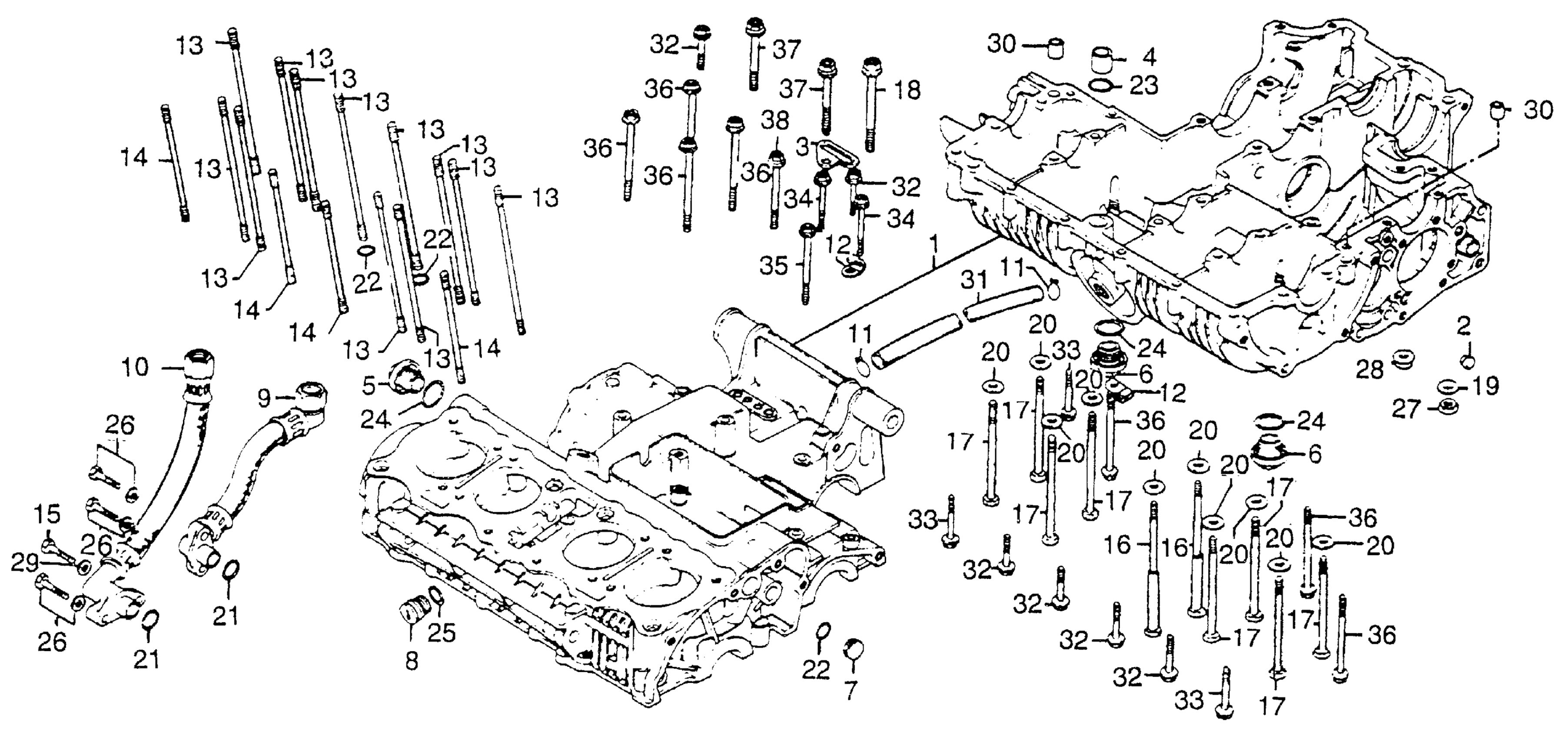

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE SET | Use up to Engine SN 3026518
11000-405-000
Unavailable
1
CRANKCASE SET | Use from Engine SN 3026519
11000-405-010
Unavailable
2
PLUG, SEALING RUBBER (8.5MM) (NOT AVAILABLE)
11209-300-000
Unavailable
3
GUIDE, OVERFLOW (NOT AVAILABLE)
11355-300-000
Unavailable
4
COLLAR, OIL PASSAGE (18MM)
15326-300-000
Unavailable
5
CAP, OIL PASSAGE
15331-300-000
Unavailable
6
CAP B, OIL PASSAGE (NOT AVAILABLE)
15332-300-000
Unavailable
7
PLUG, OIL PASSAGE (NOT AVAILABLE)
15336-300-010
Unavailable
8
PLUG, OIL TUBE
15337-300-010
Unavailable
9
HOSE A, OIL (NOT AVAILABLE)
15510-300-017
Unavailable
10
HOSE B, OIL (NOT AVAILABLE)
15520-392-020
Unavailable
12
CLAMP, CABLE (NOT AVAILABLE)
32111-300-000
Unavailable
13
BOLT A, CYLINDER STUD
90033-300-030
Unavailable
13
BOLT A, CYLINDER STUD This part replaces 90033-300-040.
90033-300-030
Unavailable
14
BOLT B, CYLINDER STUD (NOT AVAILABLE) This part replaces 90034-300-030.
90034-300-040
Unavailable
14
BOLT B, CYLINDER STUD (NOT AVAILABLE)
90034-300-040
Unavailable
16
BOLT, HEX. (8X140) (NOT AVAILABLE)
90041-300-000
Unavailable
17
BOLT, HEX. (8X120) This part replaces 90042-300-000.
92101-08120-0H
Unavailable
17
BOLT, HEX. (8X120)
92101-08120-0H
Unavailable
18
BOLT, HEX. (10X82) (NOT AVAILABLE)
90048-300-000
Unavailable
19
WASHER (10MM) This part replaces 90403-ML4-610.
90403-ML4-611
Unavailable
19
WASHER (10MM) This part replaces 90403-300-000.
90403-ML4-611
Unavailable
19
WASHER (10MM) This part replaces 90403-413-000.
90403-ML4-611
Unavailable
19
WASHER (10MM) This part replaces 90403-413-010.
90403-ML4-611
Unavailable
29
WASHER, PLAIN (6MM) This part replaces 94101-06000.
94101-06800
Unavailable
29
WASHER, PLAIN (6MM) This part replaces 94101-06080.
94101-06800
Unavailable
29
WASHER, PLAIN (6MM)
94101-06800
Unavailable
31
BULK HOSE, VACUUM (12X1000) (12X150)
95005-12001-20M
Unavailable
