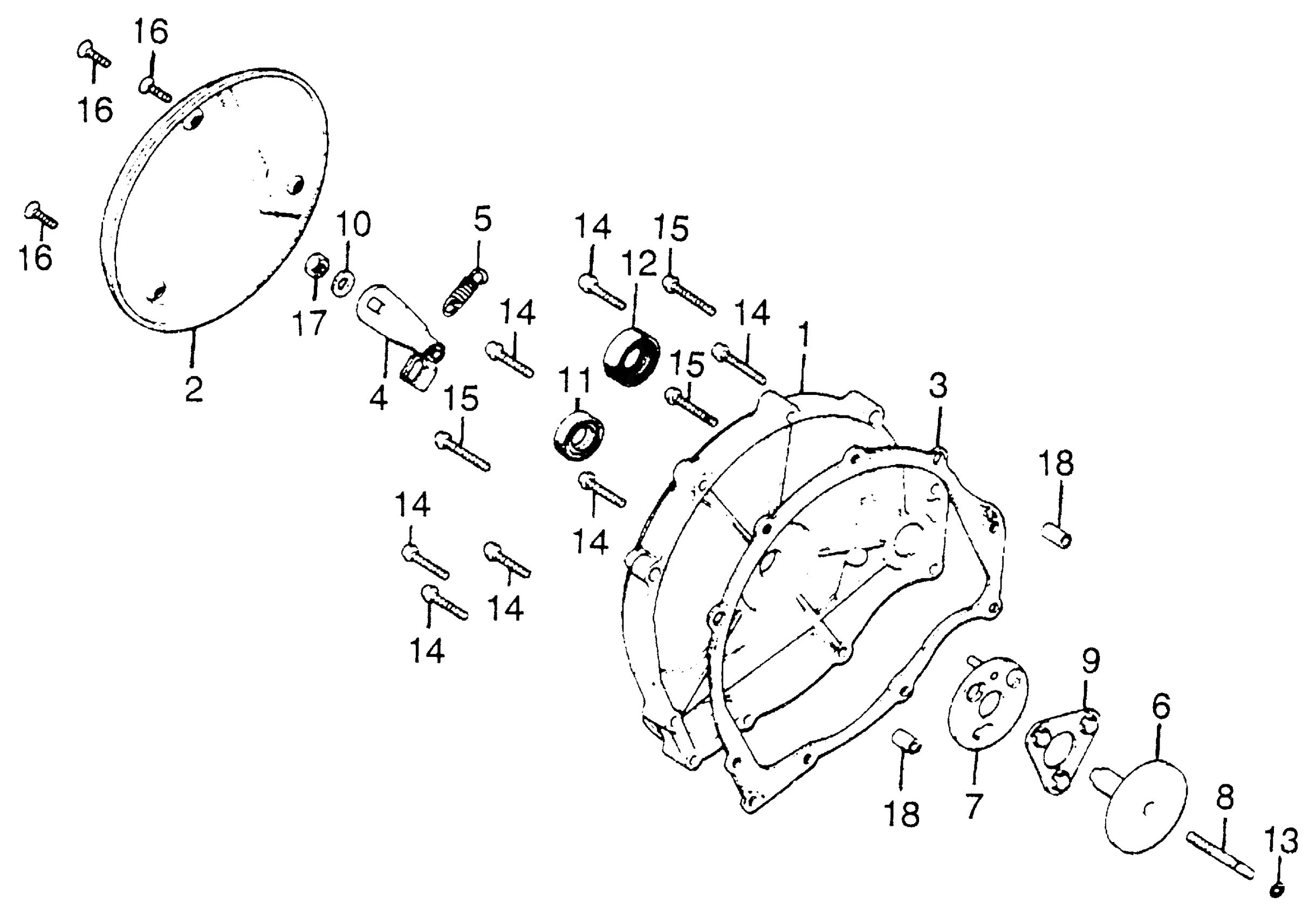

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 CLUTCH COVER Diagram

#

Description
Price

1

COVER, CLUTCH (NOT AVAILABLE)

11342-300-060

Unavailable

2

COVER, CLUTCH ADJUST (NOT AVAILABLE)

11348-392-000

Unavailable

3

GASKET, CLUTCH COVER This part replaces 11396-300-060.

11396-300-306

Unavailable

3

GASKET, CLUTCH COVER

11396-300-306

Unavailable

4

LEVER, CLUTCH (NOT AVAILABLE)

22810-300-000

Unavailable

5

SPRING, CLUTCH LEVER

22815-300-000

Unavailable

6

SHAFT, CLUTCH RELEASE (NOT AVAILABLE) | Use up to Engine SN 3000557

22820-300-000

Unavailable

6

SHAFT, CLUTCH RELEASE (NOT AVAILABLE) | Use from Engine SN 3000558

22820-410-010

Unavailable

7

CAM, CLUTCH LIFTER (NOT AVAILABLE) | Use up to Engine SN 3000557

22830-300-000

Unavailable

7

CAM, CLUTCH LIFTER (NOT AVAILABLE) | Use from Engine SN 3000558

22830-410-010

Unavailable

8

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE) | Use up to Engine SN 3000557

22841-300-000

Unavailable

8

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE) | Use from Engine SN 3000558

22841-410-000

Unavailable

9

RETAINER, CLUTCH BALL

22860-300-006

Unavailable

10

WASHER, HEAD (8MM)

90402-822-000

$1.49

11

OIL SEAL (14X24X5)

91202-KFL-841

$5.04

11

OIL SEAL (14X24X5) This part replaces 91202-216-003.

91202-KFL-841

$5.04

11

OIL SEAL (14X24X5) This part replaces 91202-302-000.

91202-KFL-841

$5.04

11

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$5.04

11

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$5.04

11

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$5.04

11

OIL SEAL (14X24X5) This part replaces 91205-035-303.

91202-KFL-841

$5.04

12

OIL SEAL (18X29X7)

91204-286-003

$4.31

12

OIL SEAL (18X29X7) This part replaces 91204-286-005.

91204-286-003

$4.31

13

O-RING (4.9X2.5) This part replaces 91301-283-005.

91301-426-010

$3.60

13

O-RING (4.9X2.5) This part replaces 91301-393-000.

91301-426-010

$3.60

13

O-RING (4.9X2.5)

91301-426-010

$3.60

14

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

14

SCREW, PAN (6X28)

93500-06028-0A

$1.49

15

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

15

SCREW, PAN (6X35)

93500-06035-0A

$1.49

16

SCREW, OVAL (6X16)

93700-06016-0B

$1.49

16

SCREW, OVAL (6X16) This part replaces 93700-06016-02.

93700-06016-0B

$1.49

17

NUT, HEX. (8MM)

94002-08000-0S

$1.49

18

PIN A, DOWEL (8X14)

94301-08140

$2.25
