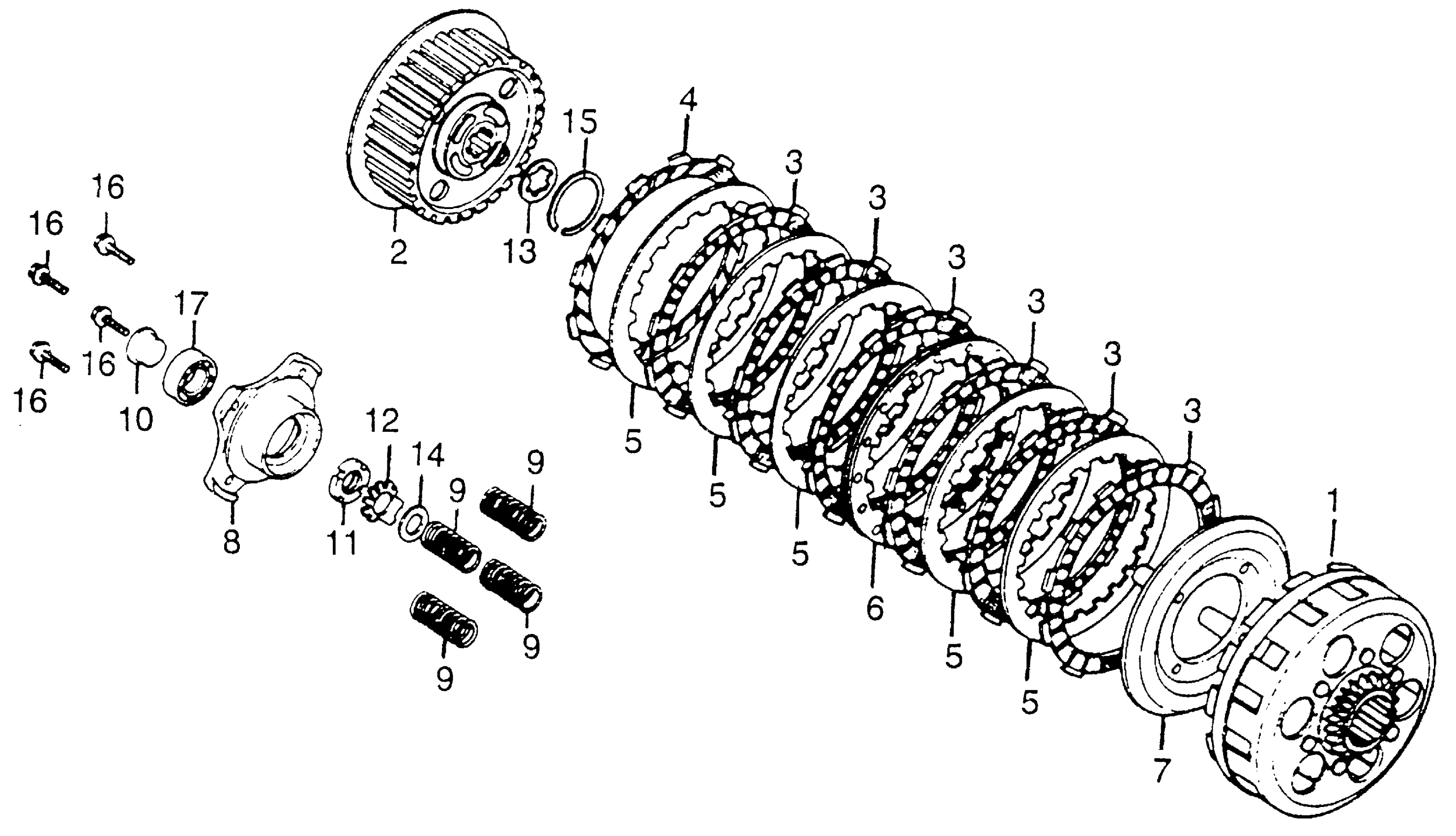

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-392-010

Unavailable

2

CENTER, CLUTCH (NOT AVAILABLE)

22120-300-050

Unavailable

3

DISK A, CLUTCH FRICTION This part replaces 22201-300-000.

22201-371-000

$31.28

3

DISK A, CLUTCH FRICTION

22201-371-000

$31.28

4

DISK B, CLUTCH FRICTION

22202-392-000

$20.20

5

PLATE, CLUTCH

22321-MG8-000

$15.44

5

PLATE, CLUTCH This part replaces 22321-283-000.

22321-MG8-000

$15.44

6

PLATE B, CLUTCH

22322-371-020

Unavailable

7

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-300-030

Unavailable

8

PLATE, CLUTCH LIFTER

22360-300-010

Unavailable

9

SPRING, CLUTCH | Use up to Engine SN 3000557 This part replaces 22401-275-000.

22401-323-003

$7.70

9

SPRING, CLUTCH | Use up to Engine SN 3000557 This part replaces 22401-323-000.

22401-323-003

$7.70

9

SPRING, CLUTCH | Use up to Engine SN 3000557

22401-323-003

$7.70

9

SPRING, CLUTCH | Use from Engine SN 3000558

22401-410-000

Unavailable

10

PIECE, CLUTCH LIFTER (NOT AVAILABLE)

22846-300-010

Unavailable

11

NUT, LOCK (16MM)

90231-KCS-651

$4.21

11

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

12

WASHER, SPRING (16MM)

90431-292-000

$2.92

13

WASHER, SPLINE (25MM) (NOT AVAILABLE)

90432-392-000

Unavailable

14

WASHER (16MM) (NOT AVAILABLE)

90481-292-000

Unavailable

15

CIRCLIP (OUTER) (40MM) (NOT AVAILABLE)

90602-371-000

Unavailable

16

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

16

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

17

BEARING, RADIAL BALL (6003) This part replaces 96100-60030.

96100-60030-00

$9.35

17

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35
