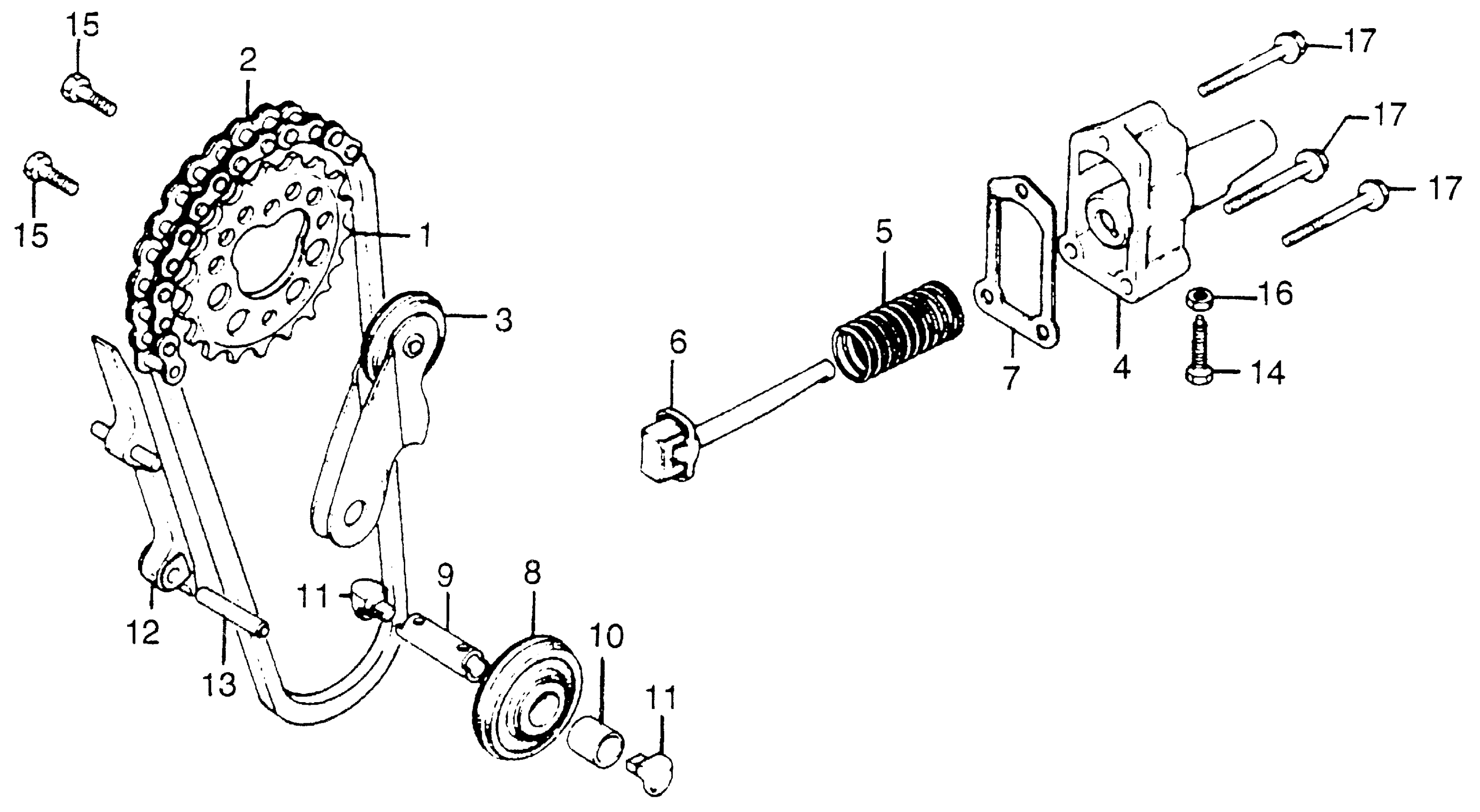

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM

14321-392-000

Unavailable

2

CHAIN, CAM This part replaces 14401-286-003.

14401-410-003

Unavailable

2

CHAIN, CAM

14401-410-003

Unavailable

3

TENSIONER, CAM CHAIN

14500-300-000

$88.89

4

HOLDER, CAM CHAIN TENSIONER

14530-300-010

Unavailable

5

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-300-000

Unavailable

6

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14550-300-030

Unavailable

7

PLATE, TENSIONER This part replaces 14592-300-000.

14592-300-306

Unavailable

7

PLATE, TENSIONER

14592-300-306

Unavailable

8

ROLLER, CAM CHAIN GUIDE

14601-312-000

$35.03

9

PIN, CAM CHAIN ROLLER (NOT AVAILABLE)

14605-286-020

Unavailable

10

COLLAR, CAM CHAIN ROLLER (NOT AVAILABLE)

14606-286-000

Unavailable

11

RUBBER, CAM CHAIN ROLLER PIN

14607-300-000

$8.56

12

GUIDE, CAM CHAIN

14611-300-000

Unavailable

13

PIN, CAM CHAIN GUIDE (NOT AVAILABLE)

14612-286-000

Unavailable

14

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90009-300-010

Unavailable

15

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

15

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

16

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

16

NUT, HEX. (6MM)

94002-06000-0S

$1.49

17

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

17

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
