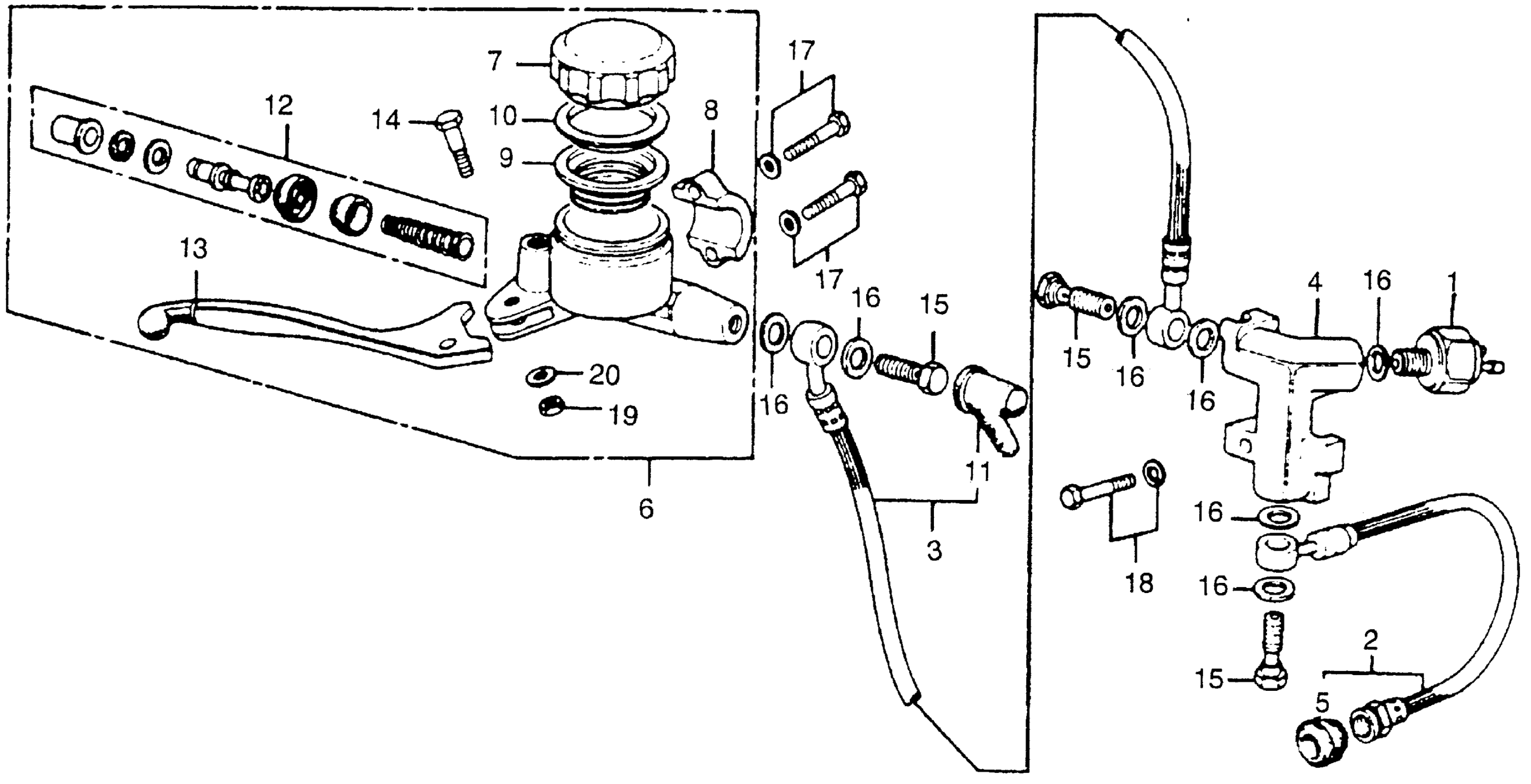

Honda CB750KA (77) 750 FOUR K, JPN, VIN# CB750-2700009 TO CB750-2729534 FRONT BRAKE MASTER CYL. 77 Diagram

SWITCH, STOP (NOT AVAILABLE)

35350-300-016

Unavailable

HOSE ASSY. A, FR. BRAKE (NICHIRIN) (NOT AVAILABLE)

45125-405-003

Unavailable

HOSE B, FR. BRAKE (NICHIRIN) (NOT AVAILABLE)

45126-300-752

Unavailable

JOINT, THREE-WAY

45127-323-000

Unavailable

GROMMET, BRAKE HOSE

45146-300-000

$3.95

MASTER CYLINDER ASSY. (NOT AVAILABLE)

45500-405-671

Unavailable

CAP, OIL CUP

43513-MJ6-006

Unavailable

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

HOLDER, MASTER CYLINDER

45517-MA5-671

$26.32

HOLDER, MASTER CYLINDER This part replaces 45517-300-003.

45517-MA5-671

$26.32

DIAPHRAGM

45520-300-000

$8.13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$3.77

BOOT, MASTER CYLINDER

45522-300-010

$8.34

MASTER CYLINDER SET This part replaces 45530-404-305.

45530-404-315

$62.73

MASTER CYLINDER SET

45530-404-315

$62.73

LEVER, R. HANDLEBAR

53175-369-003

Unavailable

BOLT, HANDLEBAR LEVER PIVOT

90114-300-000

$7.51

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$8.32

BOLT, OIL

90145-300-010

$8.32

WASHER, OIL BOLT

90545-300-000

$3.72

BOLT-WASHER (6X25)

93401-06025-00

$0.84

BOLT-WASHER (6X25) This part replaces 93481-06025-00.

93401-06025-00

$0.84

BOLT-WASHER (6X28) (NOT AVAILABLE) This part replaces 93492-06028-00.

93482-06028-00

Unavailable

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.19

NUT, HEX. (6MM)

94002-06000-0S

$1.19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM)

94101-06800

Unavailable
