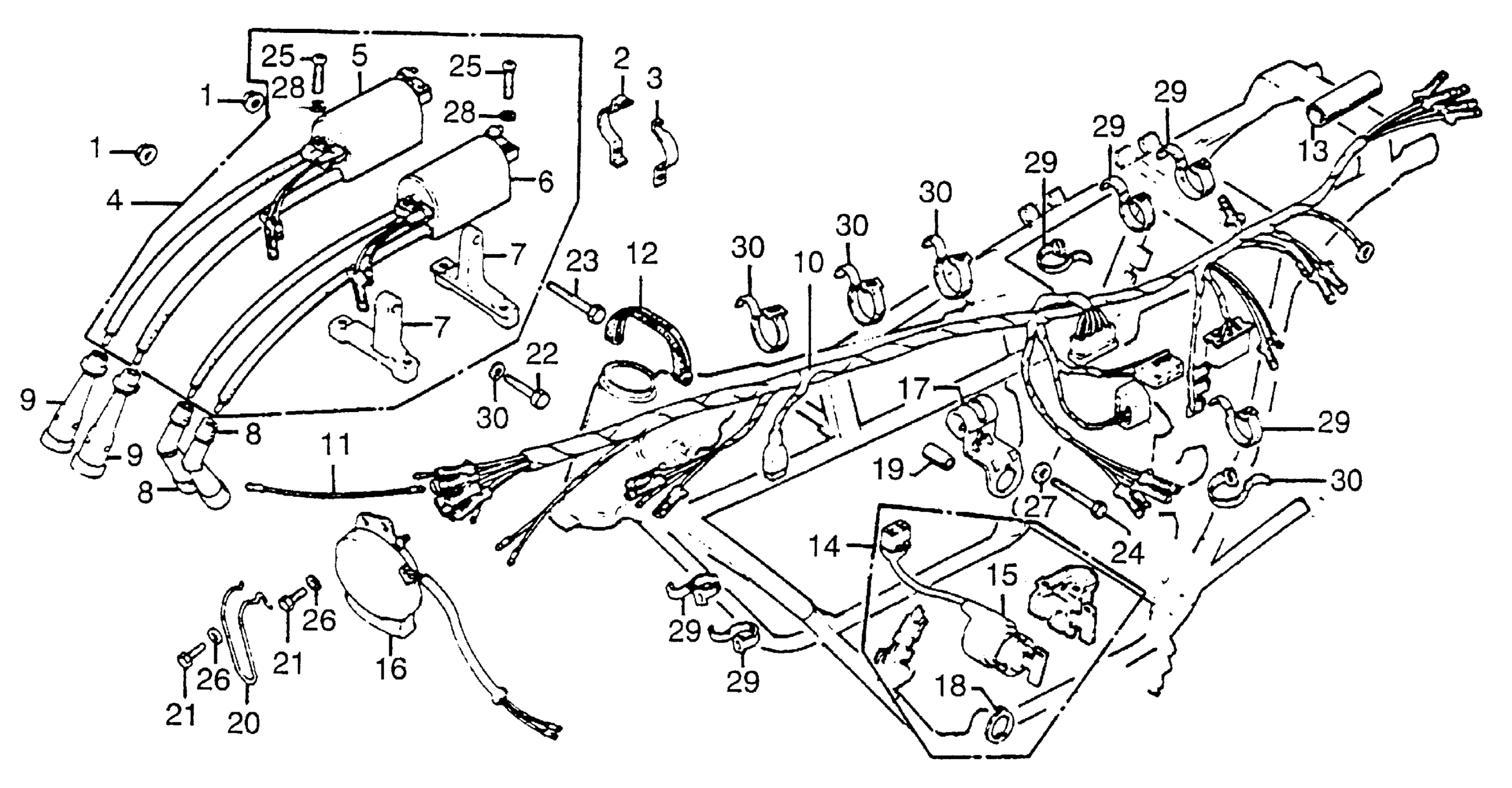

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

NUT, FLANGE (6MM) | Use up to Frame SN 2569508 This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM) | Use up to Frame SN 2569508

94050-06000

$1.49

1

NUT, FLANGE (6MM) | Use from Frame SN 2569509

94050-06080

$1.49

2

BAND A, IGNITION COIL SETTING (NOT AVAILABLE)

30151-300-000

Unavailable

3

BAND B, IGNITION COIL SETTING (NOT AVAILABLE)

30152-300-000

Unavailable

4

COIL ASSY., IGNITION (TOYO)

30500-300-013

$316.46

5

COIL, R. IGNITION (TOYO)

30501-300-003

Unavailable

5

COIL, R. IGNITION (TOYO) This part replaces 30501-300-013.

30501-300-003

Unavailable

6

COIL, L. IGNITION (TOYO)

30502-300-003

Unavailable

7

BRACKET, IGNITION COIL (NOT AVAILABLE)

30511-300-000

Unavailable

8

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$19.81

8

CAP ASSY. This part replaces 30700-300-010.

30700-GAR-003

$19.81

8

CAP ASSY. This part replaces 30700-405-153.

30700-GAR-003

$19.81

8

CAP ASSY. This part replaces 30700-405-163.

30700-GAR-003

$19.81

9

CAP ASSY. This part replaces 30700-MW3-000.

30700-MW3-003

$14.34

9

CAP ASSY. This part replaces 30710-300-010.

30700-MW3-003

$14.34

9

CAP ASSY. This part replaces 30710-405-153.

30700-MW3-003

$14.34

9

CAP ASSY. This part replaces 30710-405-163.

30700-MW3-003

$14.34

10

WIRE HARNESS (NOT AVAILABLE)

32100-341-900

Unavailable

11

CABLE A, SUB (NOT AVAILABLE)

32101-385-000

Unavailable

12

BAND, WIRE HARNESS MOUNT (NOT AVAILABLE)

32125-341-700

Unavailable

13

TUBE, WIRE (NOT AVAILABLE)

33720-300-000

Unavailable

14

SWITCH KIT, MAIN This part replaces 35010-341-702.

35010-374-671

$172.93

14

SWITCH KIT, MAIN This part replaces 35010-374-670.

35010-374-671

$172.93

14

SWITCH KIT, MAIN

35010-374-671

$172.93

14

SWITCH KIT, MAIN This part replaces 35020-341-701.

35010-374-671

$172.93

15

SWITCH ASSY., COMBINATION (TOYO) This part replaces 35100-374-000.

35100-374-007

Unavailable

15

SWITCH ASSY., COMBINATION (TOYO)

35100-374-007

Unavailable

16

HORN ASSY. (MITSUBA)

38100-300-023

Unavailable

17

BRACKET, COMBINATION SWITCH *NH1* (BLACK) (NOT AVAILABLE)

50375-300-000B

Unavailable

18

WASHER, COMBINATION SWITCH (NOT AVAILABLE)

50376-300-000

Unavailable

19

COLLAR, COMBINATION SWITCH (NOT AVAILABLE)

50377-300-000

Unavailable

20

CLAMP, TACHOMETER CABLE

50462-323-010

Unavailable

21

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

22

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

23

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

23

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

23

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

24

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

24

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

25

SCREW, PAN (5X20)

93500-05020-0A

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

WASHER, SPRING (5MM)

94111-05000

$1.49

29

BAND B1, CABLE

32161-404-000

$2.23

29

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

30

BAND A2, CABLE

95014-61200

$2.33
