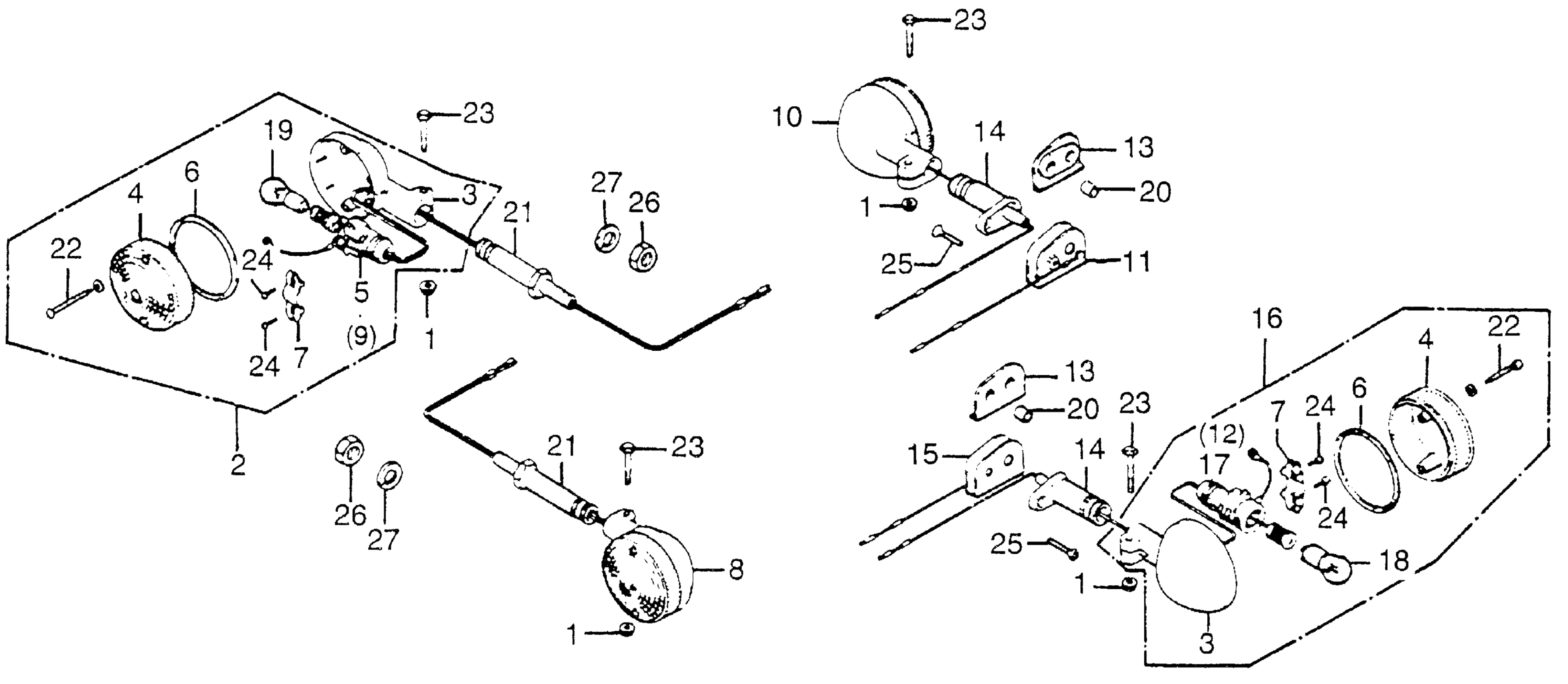

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 TURN SIGNAL Diagram

#

Description
Price

1

NUT, FLANGE (6MM) | Use up to Frame SN 2569508 This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM) | Use up to Frame SN 2569508

94050-06000

$1.49

1

NUT, FLANGE (6MM) | Use from Frame SN 2569509

94050-06080

$1.49

2

TURN SIGNAL ASSY., R. FR. This part replaces 33400-377-671.

33400-461-679

Unavailable

2

TURN SIGNAL ASSY., R. FR. This part replaces 33400-461-670.

33400-461-679

Unavailable

2

TURN SIGNAL ASSY., R. FR.

33400-461-679

Unavailable

3

BASE, R. FR. TURN SIGNAL (NOT AVAILABLE)

33401-377-671

Unavailable

4

LENS, FR. TURN SIGNAL

33402-377-671

Unavailable

5

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33405-377-671.

33405-461-670

Unavailable

6

GASKET, TURN SIGNAL LENS

33406-377-671

Unavailable

7

HOLDER, FR. TURN SIGNAL SOCKET (NOT AVAILABLE)

33407-377-671

Unavailable

8

TURN SIGNAL ASSY., R. FR. This part replaces 33400-377-671.

33400-461-679

Unavailable

8

TURN SIGNAL ASSY., R. FR. This part replaces 33400-461-670.

33400-461-679

Unavailable

8

TURN SIGNAL ASSY., R. FR.

33400-461-679

Unavailable

8

TURN SIGNAL ASSY., R. FR. This part replaces 33450-377-671.

33400-461-679

Unavailable

9

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33455-377-671.

33405-461-670

Unavailable

10

TURN SIGNAL, R. RR. (NOT AVAILABLE)

33600-374-671

Unavailable

11

STOPPER, R. RR. TURN SIGNAL (NOT AVAILABLE)

33604-374-670

Unavailable

12

SOCKET, R. RR. TURN SIGNAL This part replaces 33605-374-671.

33610-374-671

Unavailable

12

SOCKET, R. RR. TURN SIGNAL

33610-374-671

Unavailable

13

RUBBER, RR. TURN SIGNAL SETTING (NOT AVAILABLE)

33606-374-670

Unavailable

14

STAY, R. RR. TURN SIGNAL (NOT AVAILABLE)

33607-374-670

Unavailable

15

STOPPER, L. RR. TURN SIGNAL (NOT AVAILABLE)

33609-374-670

Unavailable

16

TURN SIGNAL ASSY., L. RR.

33650-374-671

Unavailable

17

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33655-374-671.

33660-374-671

Unavailable

17

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33660-374-671

Unavailable

18

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

19

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

19

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

20

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

20

COLLAR A, RR. FENDER

80108-061-010

$4.12

21

BOLT, FR. TURN SIGNAL SETTING

90154-374-670

Unavailable

22

SCREW, PAN (4X25) This part replaces 90192-377-671.

93500-04025-0A

$1.93

22

SCREW, PAN (4X25)

93500-04025-0A

$1.93

23

BOLT, HEX. (6X35) This part replaces 93000-06035-0B.

93101-06035-0B

Unavailable

23

BOLT, HEX. (6X35) This part replaces 93000-06035-02.

93101-06035-0B

Unavailable

23

BOLT, HEX. (6X35)

93101-06035-0B

Unavailable

24

SCREW, PAN (3X8)

93500-03008-0H

$1.49

25

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

25

SCREW, OVAL (6X25) This part replaces 93700-06025-02.

93700-06025-0B

$1.49

26

NUT, HEX. (12MM) (NOT AVAILABLE)

94002-12000

Unavailable

27

WASHER, SPRING (12MM)

94111-12000

$1.49
