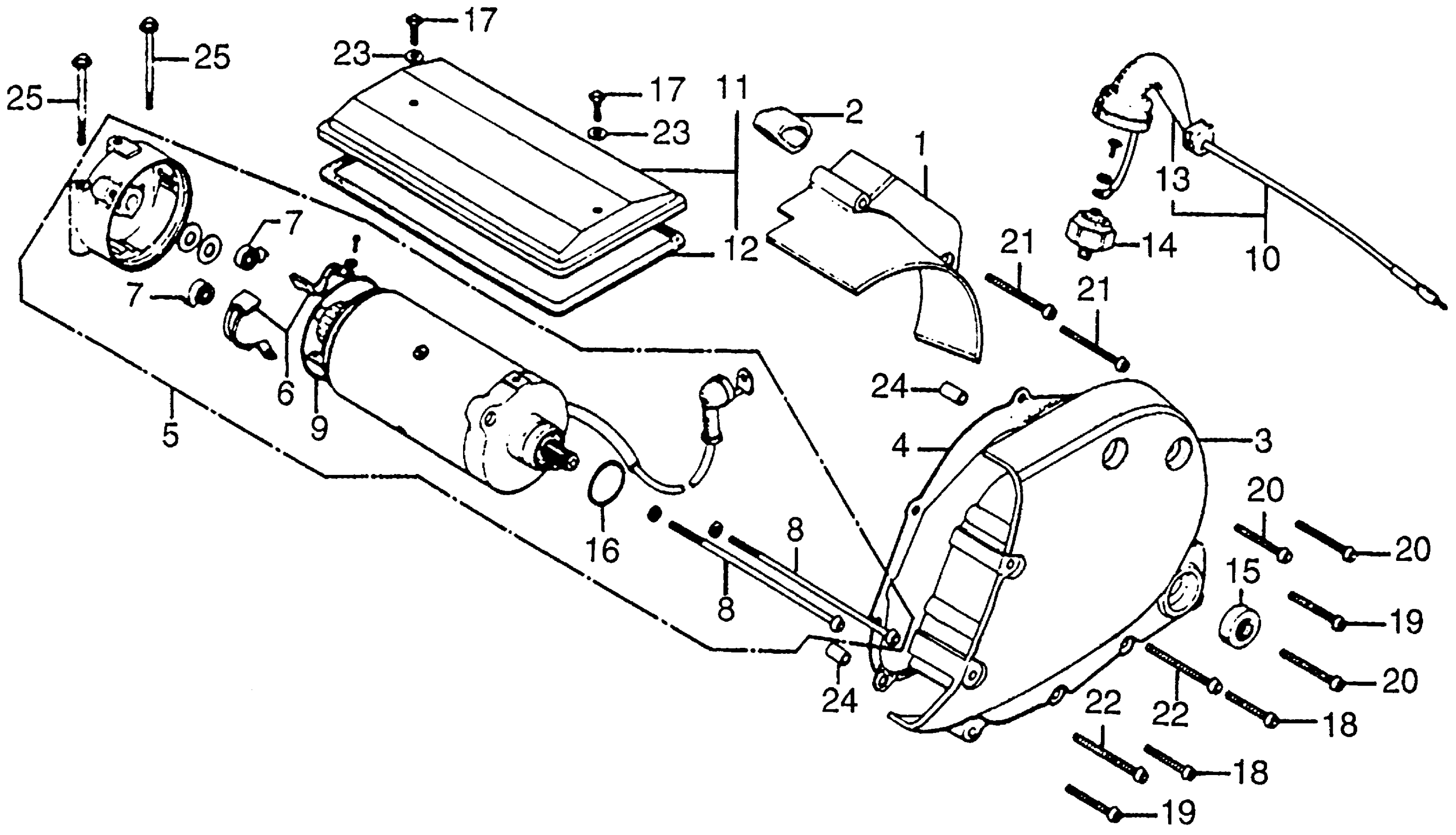

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 STARTER MOTOR Diagram

#

Description
Price

1

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-300-060

Unavailable

2

RUBBER, FINAL CHAIN GUIDE (NOT AVAILABLE)

11354-300-010

Unavailable

3

COVER, CRANKCASE TRANSMISSION (NOT AVAILABLE)

11360-300-050

Unavailable

4

GASKET, TRANSMISSION COVER This part replaces 11395-300-040.

11395-300-306

$19.33

4

GASKET, TRANSMISSION COVER

11395-300-306

$19.33

5

MOTOR ASSY., STARTER (NOT AVAILABLE)

31200-300-030

Unavailable

6

BRUSH SET, CARBON

31201-292-158

$26.15

7

SPRING, CARBON BRUSH

31204-292-158

$3.83

8

BOLT, SETTING (NOT AVAILABLE)

31205-286-158

Unavailable

9

O-RING (60X1.4) This part replaces 31206-286-158.

31206-402-008

Unavailable

9

O-RING (60X1.4)

31206-402-008

Unavailable

10

WIRE ASSY., OIL PRESSURE SWITCH (SUMITOMO) (NOT AVAILABLE)

31270-300-154

Unavailable

11

COVER, STARTER MOTOR (NOT AVAILABLE)

31280-300-000

Unavailable

12

GASKET, STARTER MOTOR COVER (NOT AVAILABLE)

31282-300-020

Unavailable

13

GROMMET, OIL PRESSURE SWITCH WIRE (NOT AVAILABLE)

31283-300-000

Unavailable

14

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 2432459 This part replaces 35500-300-000.

37240-P13-013

$44.49

14

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 2432459 This part replaces 35500-333-004.

37240-P13-013

$44.49

14

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 2432459 This part replaces 35500-333-014.

37240-P13-013

$44.49

14

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 2432459

37240-P13-013

$44.49

15

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-005.

91206-286-013

$3.01

15

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

16

O-RING (24.4X3.1) This part replaces 91309-300-000.

91312-MG7-003

$6.34

16

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

16

O-RING (24.4X3.1)

91312-MG7-003

$6.34

17

BOLT, HEX. (6X12) This part replaces 92000-06012-02.

92101-06012-0B

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0B

$1.49

18

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

18

SCREW, PAN (6X32)

93500-06032-0A

$1.49

19

SCREW, PAN (6X35)

93500-06035-0A

$1.49

19

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

20

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

20

SCREW, PAN (6X40)

93500-06040-0A

$1.49

21

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

21

SCREW, PAN (6X50)

93500-06050-0A

$1.49

22

SCREW, PAN (6X55)

93500-06055-0A

$1.49

22

SCREW, PAN (6X55) This part replaces 93500-06056.

93500-06055-0A

$1.49

23

WASHER, PLAIN (6MM)

94101-06200

$1.49

24

PIN A, DOWEL (8X14)

94301-08140

$2.25

25

BOLT, FLANGE (6X56) (NOT AVAILABLE)

95700-06056-00

Unavailable
