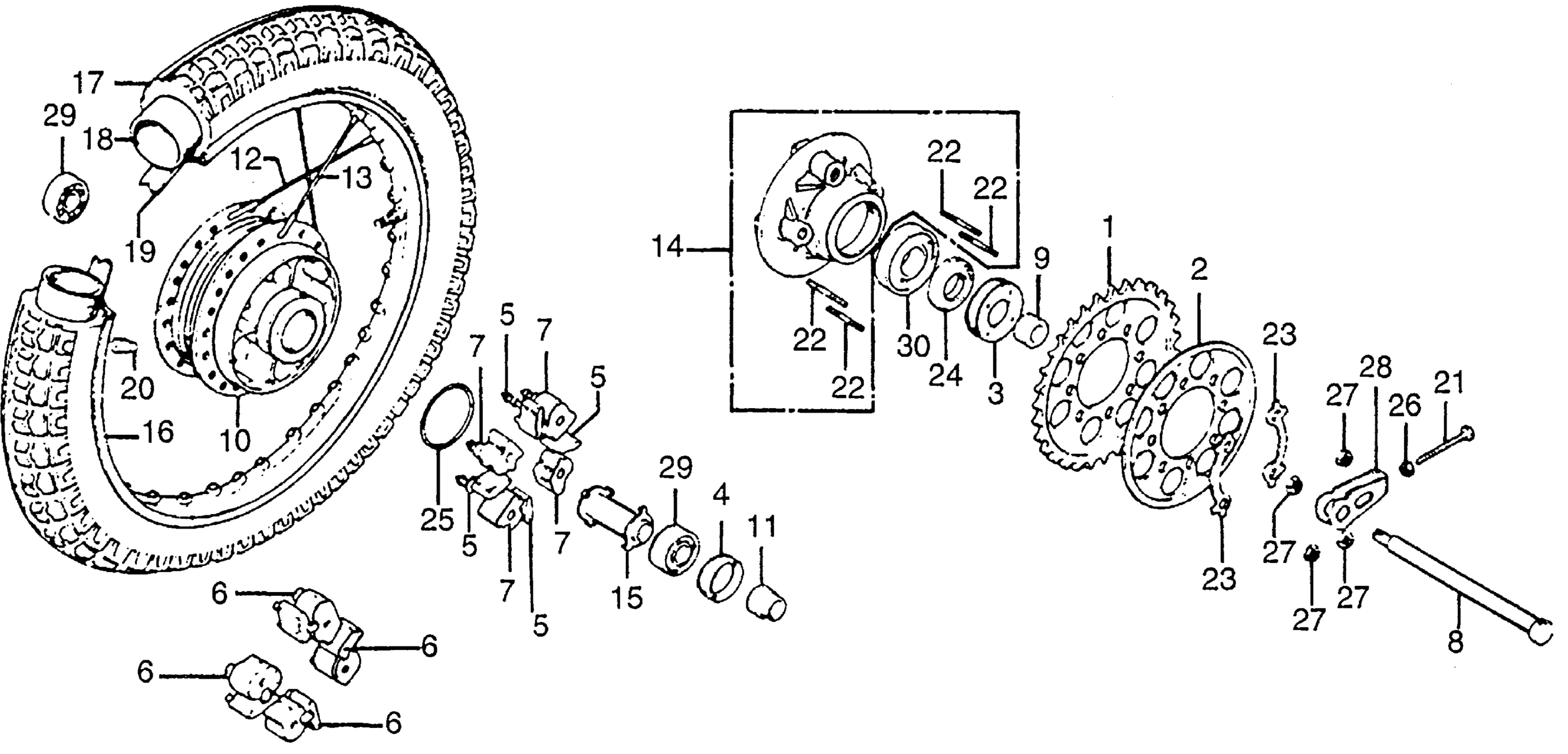

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 REAR WHEEL Diagram

SPROCKET, FINAL DRIVEN (48T)

41201-300-870

Unavailable

PLATE, SPROCKET SIDE (NOT AVAILABLE)

41211-341-000

Unavailable

RETAINER, RR. WHEEL BEARING

41231-283-000

Unavailable

RETAINER, RR. WHEEL BEARING

41231-300-020

Unavailable

DAMPER, R. RR. WHEEL | Use up to Frame SN 2560085

41241-300-040

Unavailable

DAMPER, RR. WHEEL | Use from Frame SN 2560086

41241-300-050

$19.38

DAMPER, L. RR. WHEEL | Use up to Frame SN 2560085

41242-300-020

Unavailable

AXLE, RR. WHEEL This part replaces 42301-300-010.

42301-300-020

Unavailable

AXLE, RR. WHEEL

42301-300-020

Unavailable

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-300-010

Unavailable

HUB, RR. WHEEL (NOT AVAILABLE) | Use up to Frame SN 2560085 This part replaces 42601-300-030.

42601-300-050

Unavailable

HUB, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 2560086 This part replaces 42601-300-040.

42601-300-050

Unavailable

HUB, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 2560086

42601-300-050

Unavailable

SLEEVE, RR. AXLE (NOT AVAILABLE)

42605-300-000

Unavailable

SPOKE (8X142.5) This part replaces 42606-300-003.

97313-69125-R0

$4.16

SPOKE (8X142.5) This part replaces 42606-341-000.

97313-69125-R0

$4.16

SPOKE (8X142.5)

97313-69125-R0

$4.16

SPOKE (8X142.5) This part replaces 97313-69125-10.

97313-69125-R0

$4.16

SPOKE B, RR. (DAIDO) This part replaces 42607-300-003.

42607-341-000

$7.13

SPOKE B, RR. (DAIDO)

42607-341-000

$7.13

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42609-341-000

Unavailable

COLLAR, RR. DISTANCE

42620-ME1-405

Unavailable

COLLAR, RR. DISTANCE This part replaces 42620-300-010.

42620-ME1-405

Unavailable

RIM, RR. WHEEL (DAIDO)

42701-300-013

Unavailable

TIRE, RR. (4.00H-18) (BS) (NOT AVAILABLE)

42711-341-003

Unavailable

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-300-000.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-300-003.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-300-004.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-310-004.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-312-003.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

FLAP, TIRE (2.15-18) (BS) (NOT AVAILABLE)

42713-300-003

$5.69

FLAP, TIRE (2.15-18) (DUNLOP)

42713-300-004

$6.14

BALANCER, WHEEL (20G)

44606-283-000

$8.89

BALANCER, WHEEL (15G)

44607-283-000

$8.08

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

BALANCER, WHEEL (5G)

44609-283-000

$3.93

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

BOLT, STUD (12X54) (NOT AVAILABLE)

90128-341-000

Unavailable

WASHER A7, TONGUED (SOURCE: VINTAGE PARTS INC.) This part replaces 90523-300-000.

94108-17000

Unavailable

WASHER A7, TONGUED (SOURCE: VINTAGE PARTS INC.)

94108-17000

Unavailable

OIL SEAL (34X55X9)

90753-283-000

$16.11

O-RING (68X2.6)

91258-300-013

$5.84

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, HEX. (12MM)

94030-12000

$1.49

ADJUSTER K, CHAIN

95014-19000

$19.86

BEARING, RADIAL BALL (6304Z) This part replaces 96120-63040.

96120-63040-10

$22.40

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40

BEARING, RADIAL BALL (6305Z) (NOT AVAILABLE)

96120-63050

Unavailable
