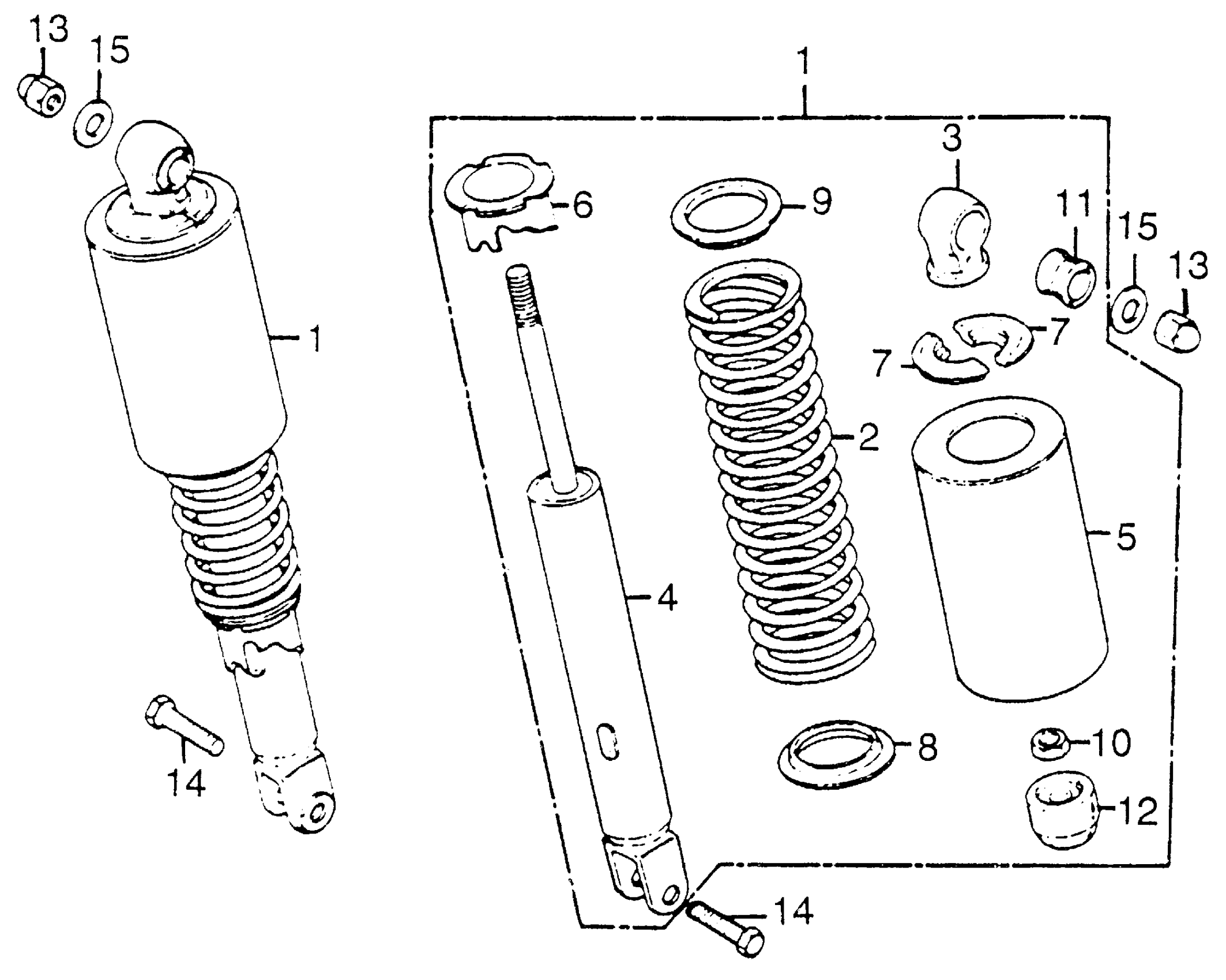

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

52400-341-911XW

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-341-000

$66.54

JOINT (UPPER) (NOT AVAILABLE)

52403-312-000

$18.07

DAMPER, RR.

52410-341-911

Unavailable

CASE, RR. SHOCK ABSORBER (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

52421-300-000XW

Unavailable

ADJUSTER, SPRING (SHOWA) (NOT AVAILABLE)

52422-390-003

Unavailable

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA) (NOT AVAILABLE)

52459-312-003

Unavailable

NUT, HEX. (10MM)

94002-10000-0S

$4.06

RUBBER, JOINT

52484-292-000

$5.87

RUBBER, STOPPER (NOT AVAILABLE)

52517-358-771

Unavailable

NUT, FLANGE (10MM)

90309-315-000

$5.35

BOLT, HEX. (10X32) This part replaces 93200-10032-0B.

93201-10032-0B

$2.92

BOLT, HEX. (10X32)

93201-10032-0B

$2.92

WASHER, PLAIN (10MM)

94101-10200

$1.49
