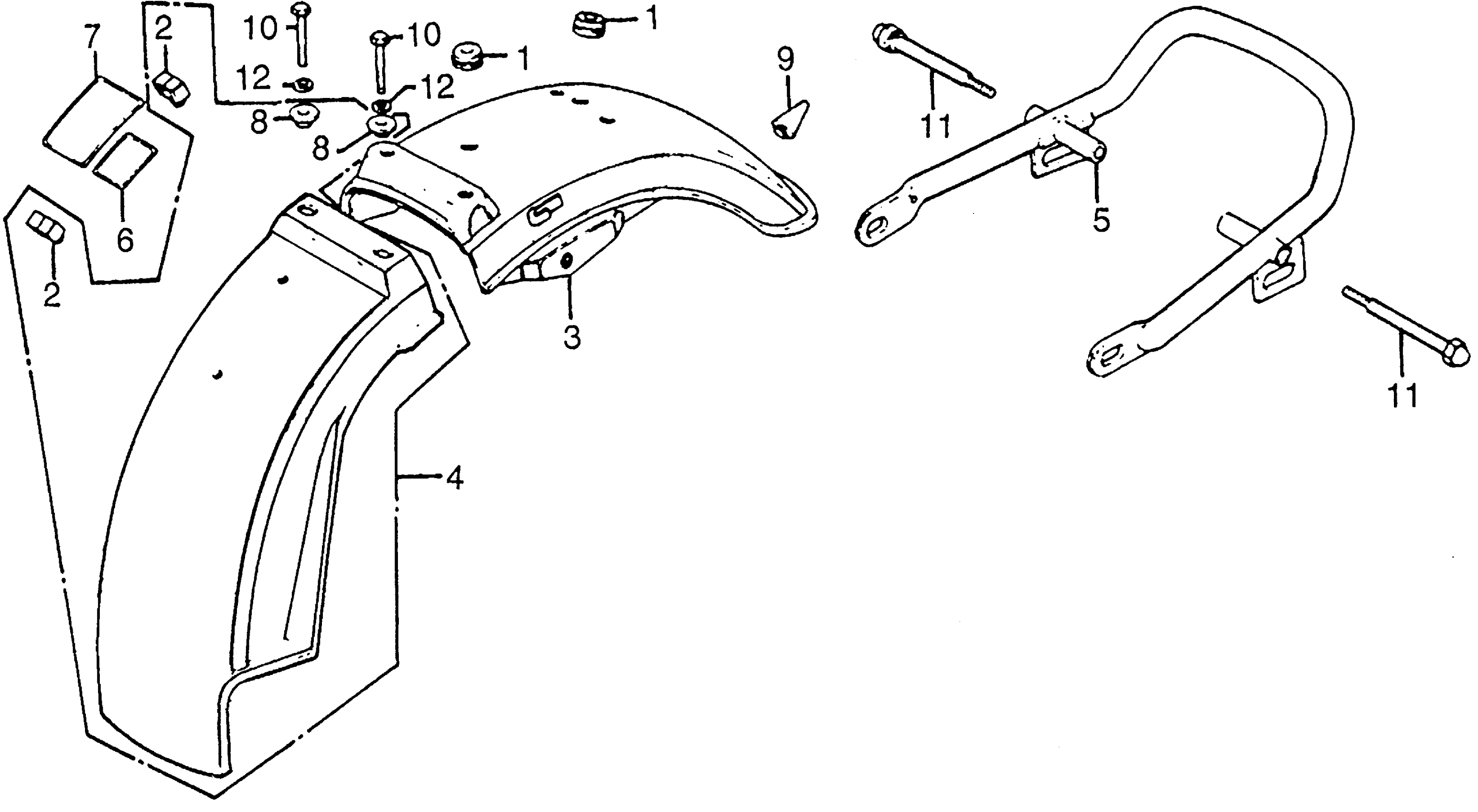

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 REAR FENDER Diagram

#

Description

Price

1

GROMMET, WIRE HARNESS

32983-011-000

$3.16

2

GROMMET, CABLE

32985-300-000

$3.19

3

FENDER A, RR. (NOT AVAILABLE)

80100-341-000

Unavailable

4

FENDER B, RR. (NOT AVAILABLE) | Use up to Frame SN 2557627 This part replaces 80105-341-000.

80105-341-010

Unavailable

4

FENDER B, RR. (NOT AVAILABLE)

80105-341-010

Unavailable

5

BUMPER, RR. (NOT AVAILABLE)

84101-341-770

Unavailable

6

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-341-670

Unavailable

7

LABEL, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-371-670

Unavailable

8

WASHER (6X9)

90513-323-000

$1.69

9

PLUG, CONE (NOT AVAILABLE)

90899-323-610

Unavailable

10

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

Unavailable

10

BOLT, HEX. (6X28)

92101-06028-0A

Unavailable

11

BOLT, CAP (8X80)

92600-08080-0B

Unavailable

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM)

94101-06800

Unavailable
