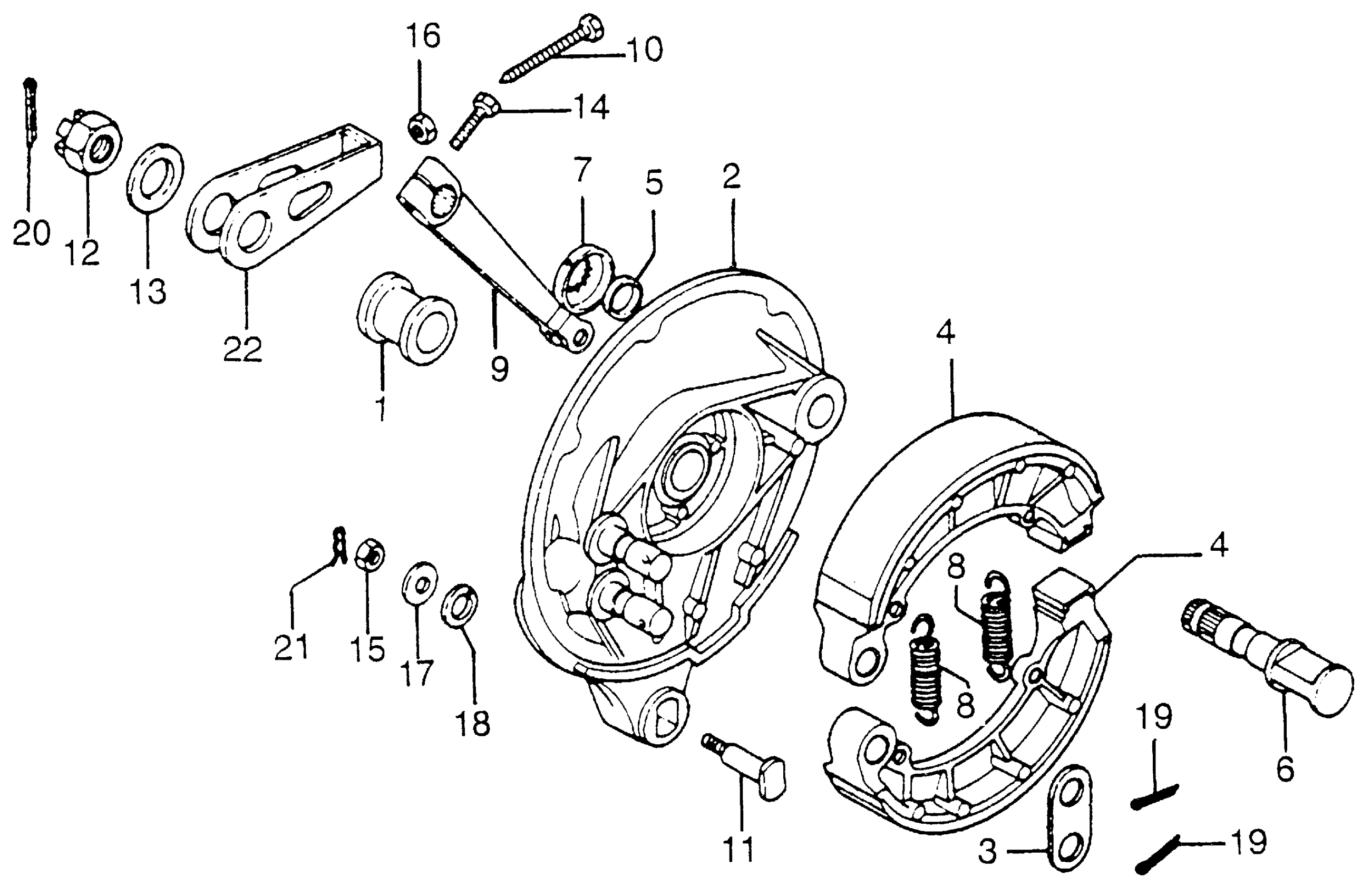

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 REAR BRAKE PANEL Diagram

#

Description
Price

1

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-300-020

Unavailable

2

PANEL, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 2580923

43100-341-010

Unavailable

2

PANEL, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 2580924

43100-341-030

Unavailable

3

WASHER, ANCHOR PIN

43102-319-000

$6.21

3

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

4

SHOE KIT, BRAKE This part replaces 43120-300-010.

06430-393-405

Unavailable

4

SHOE KIT, BRAKE This part replaces 43120-393-003.

06430-393-405

Unavailable

4

SHOE KIT, BRAKE This part replaces 43120-393-006.

06430-393-405

Unavailable

5

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

6

CAM, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 2580923

43141-341-000

Unavailable

6

CAM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 2580924

43141-341-020

Unavailable

7

PLATE, BRAKE INDICATOR (NOT AVAILABLE) | Use up to Frame SN 2580923

43145-341-000

Unavailable

7

PLATE, BRAKE INDICATOR (NOT AVAILABLE) | Use from Frame SN 2580924

43145-341-010

Unavailable

8

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

9

ARM, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 2580923

43410-341-700

Unavailable

9

ARM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 2580924

43410-341-710

Unavailable

10

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

11

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90127-323-000

Unavailable

12

NUT, RR. WHEEL AXLE This part replaces 90306-268-000.

90306-329-770

$7.58

12

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

13

WASHER (18.5X34) (NOT AVAILABLE)

90523-292-000

Unavailable

14

BOLT, HEX. (8X22) This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

14

BOLT, HEX. (8X22)

92101-08022-0A

Unavailable

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

NUT, HEX. (8MM)

94002-08000-0S

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

WASHER, SPRING (8MM)

94111-10000

$1.49

19

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

19

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

19

PIN, COTTER (2.5MM)

94201-25300

$1.49

20

PIN, COTTER (4.0X30)

94201-40300

$1.49

21

PIN, LOCK (8MM)

94251-08000

$1.49

22

ADJUSTER K, CHAIN

95014-19000

$19.86
