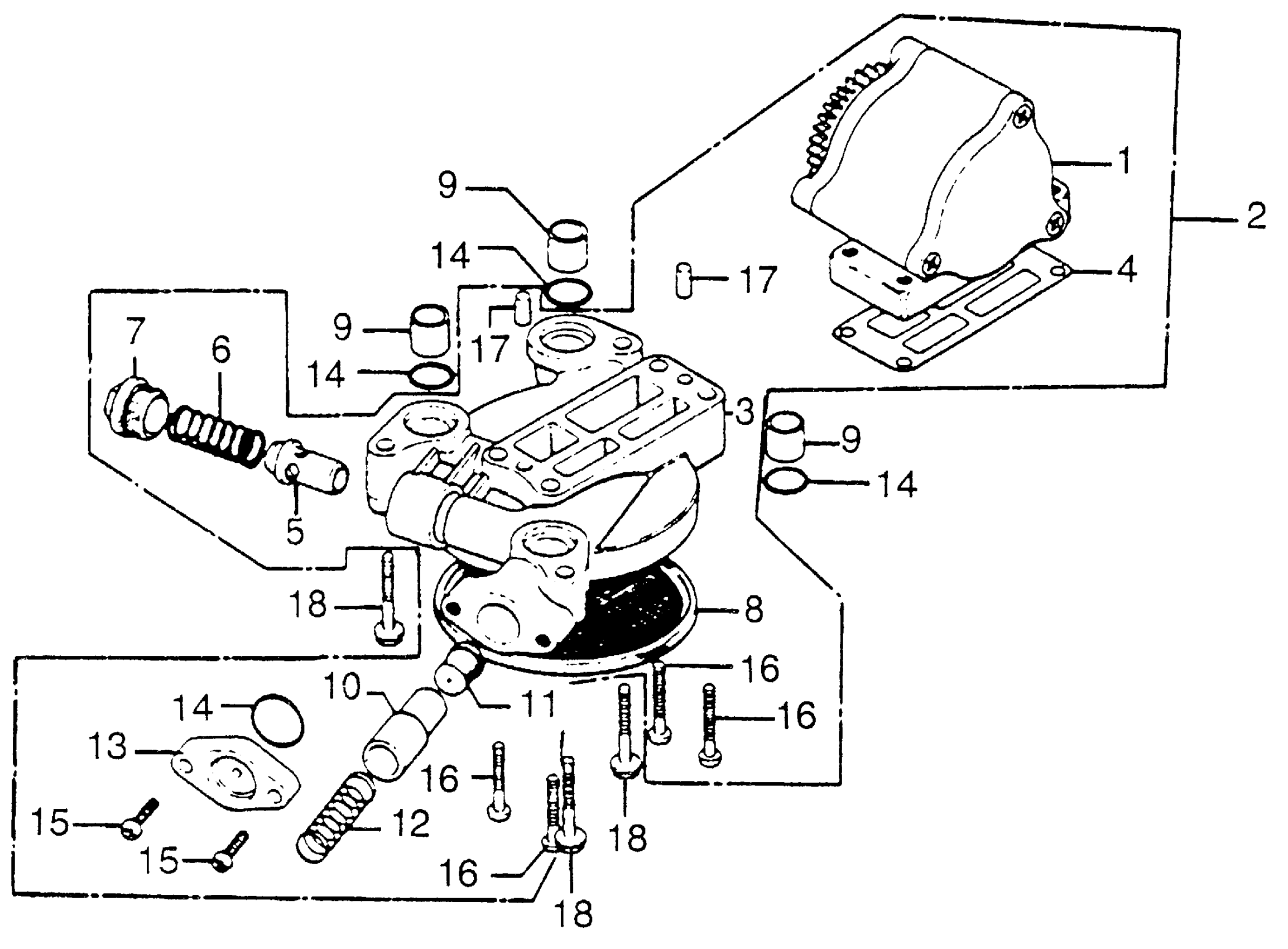

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 OIL PUMP Diagram

#

Description
Price

1

BODY ASSY., OIL (NOT AVAILABLE)

15010-300-000

Unavailable

2

PUMP ASSY., OIL (NOT AVAILABLE)

15100-300-000

Unavailable

3

BASE, OIL PUMP (NOT AVAILABLE)

15105-300-010

Unavailable

4

GASKET, OIL PUMP (NOT AVAILABLE)

15135-300-010

Unavailable

5

VALVE, RELIEF (NOT AVAILABLE)

15140-300-010

Unavailable

6

SPRING, RELIEF VALVE (NOT AVAILABLE)

15145-300-000

Unavailable

7

CAP, RELIEF VALVE SPRING (NOT AVAILABLE)

15147-300-000

Unavailable

8

SCREEN, OIL STRAINER

15150-300-000

Unavailable

9

COLLAR, O-RING

15155-300-000

$3.47

10

VALVE, OIL LEAK STOPPER (NOT AVAILABLE)

15161-300-000

Unavailable

11

OIL SEAL, LEAK STOPPER (NOT AVAILABLE)

15166-300-000

Unavailable

12

SPRING, OIL LEAK STOPPER (NOT AVAILABLE)

15171-300-010

Unavailable

13

CAP, OIL LEAK STOPPER (NOT AVAILABLE)

15176-300-000

Unavailable

14

O-RING (15X2.5)

91302-377-000

$5.31

14

O-RING (15X2.5) This part replaces 91304-028-000.

91302-377-000

$5.31

15

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

15

SCREW, PAN (6X20)

93500-06020-0A

$1.49

16

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

16

SCREW, PAN (6X32)

93500-06032-0A

$1.49

17

PIN, DOWEL (4X8) (NOT AVAILABLE)

94302-04080

Unavailable

18

BOLT, FLANGE (6X35) | Use from Engine SN 2473184 This part replaces 95700-06035-00.

95701-06035-00

$1.80

18

BOLT, FLANGE (6X35) | Use up to Engine SN 2473183 This part replaces 95700-06036-00.

95701-06035-00

$1.80

18

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
