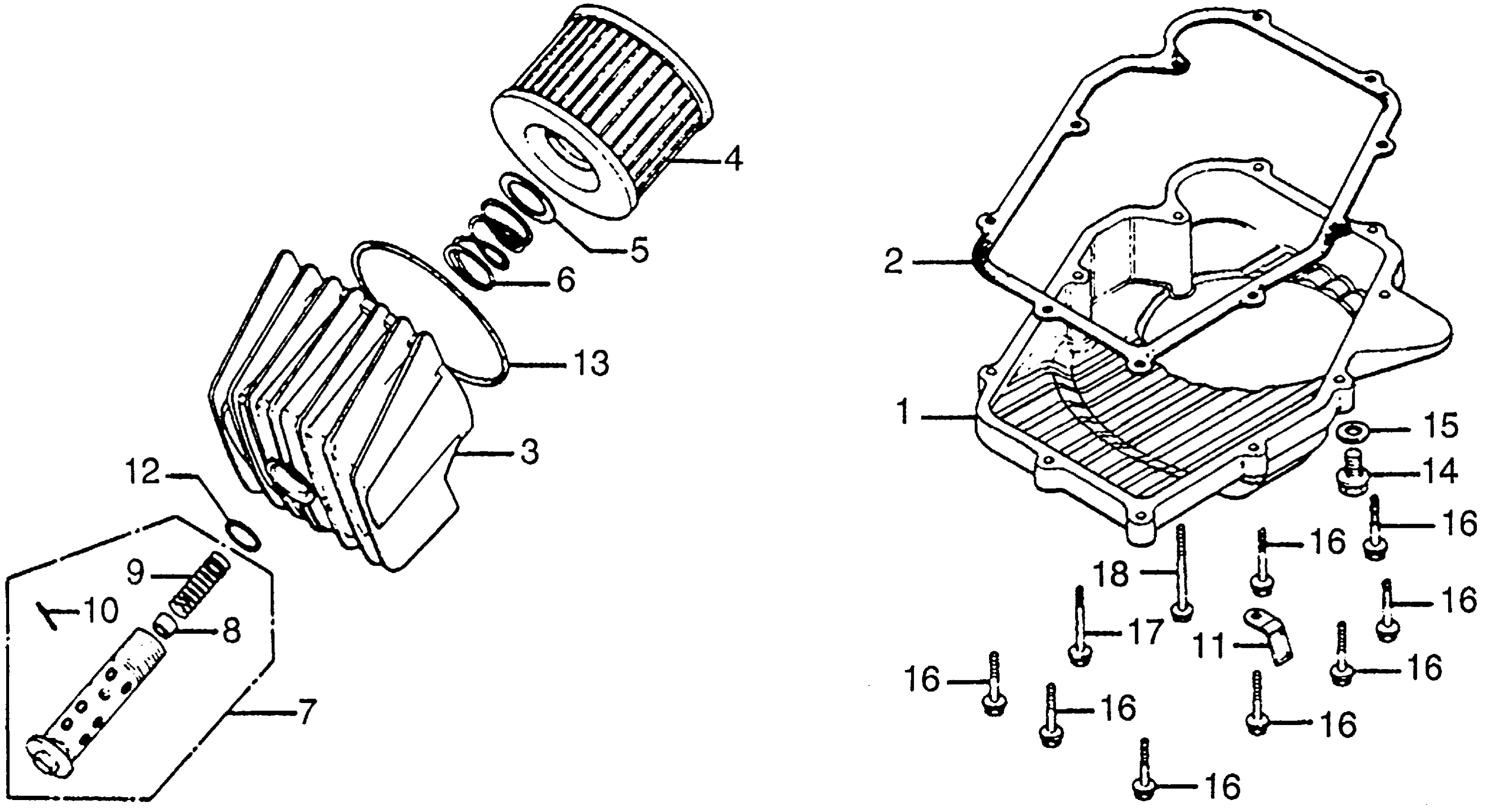

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 OIL FILTER + OIL PAN Diagram

#

Description
Price

1

PAN, OIL (NOT AVAILABLE) This part replaces 11210-300-050.

11210-300-060

Unavailable

1

PAN, OIL (NOT AVAILABLE)

11210-300-060

Unavailable

2

GASKET, OIL PAN This part replaces 11398-300-050.

11398-300-306

Unavailable

2

GASKET, OIL PAN This part replaces 11398-300-303.

11398-300-306

Unavailable

2

GASKET, OIL PAN

11398-300-306

Unavailable

3

CASE, OIL FILTER (NOT AVAILABLE)

15411-300-010

Unavailable

4

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$9.30

4

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$9.30

4

ELEMENT, OIL FILTER

15410-426-010

$9.30

4

ELEMENT, OIL FILTER This part replaces 15412-300-024.

15410-426-010

$9.30

4

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$9.30

5

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

6

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.85

7

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

8

VALVE, CHECK

15473-300-300

$4.25

9

SPRING, CHECK VALVE

15474-300-310

$4.89

10

PIN, SPRING SETTING

15477-300-300

$3.56

11

CLAMP, CABLE (NOT AVAILABLE)

32111-300-000

Unavailable

12

O-RING (15X2.5)

91302-377-000

$5.31

12

O-RING (15X2.5) This part replaces 91304-028-000.

91302-377-000

$5.31

13

O-RING (89X4.5) This part replaces 91316-300-003.

91316-425-003

$4.45

13

O-RING (89X4.5) This part replaces 91316-300-005.

91316-425-003

$4.45

13

O-RING (89X4.5)

91316-425-003

$4.45

14

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

15

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

16

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

16

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

17

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

17

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

18

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

18

BOLT, FLANGE (6X50)

95701-06050-00

$2.06
