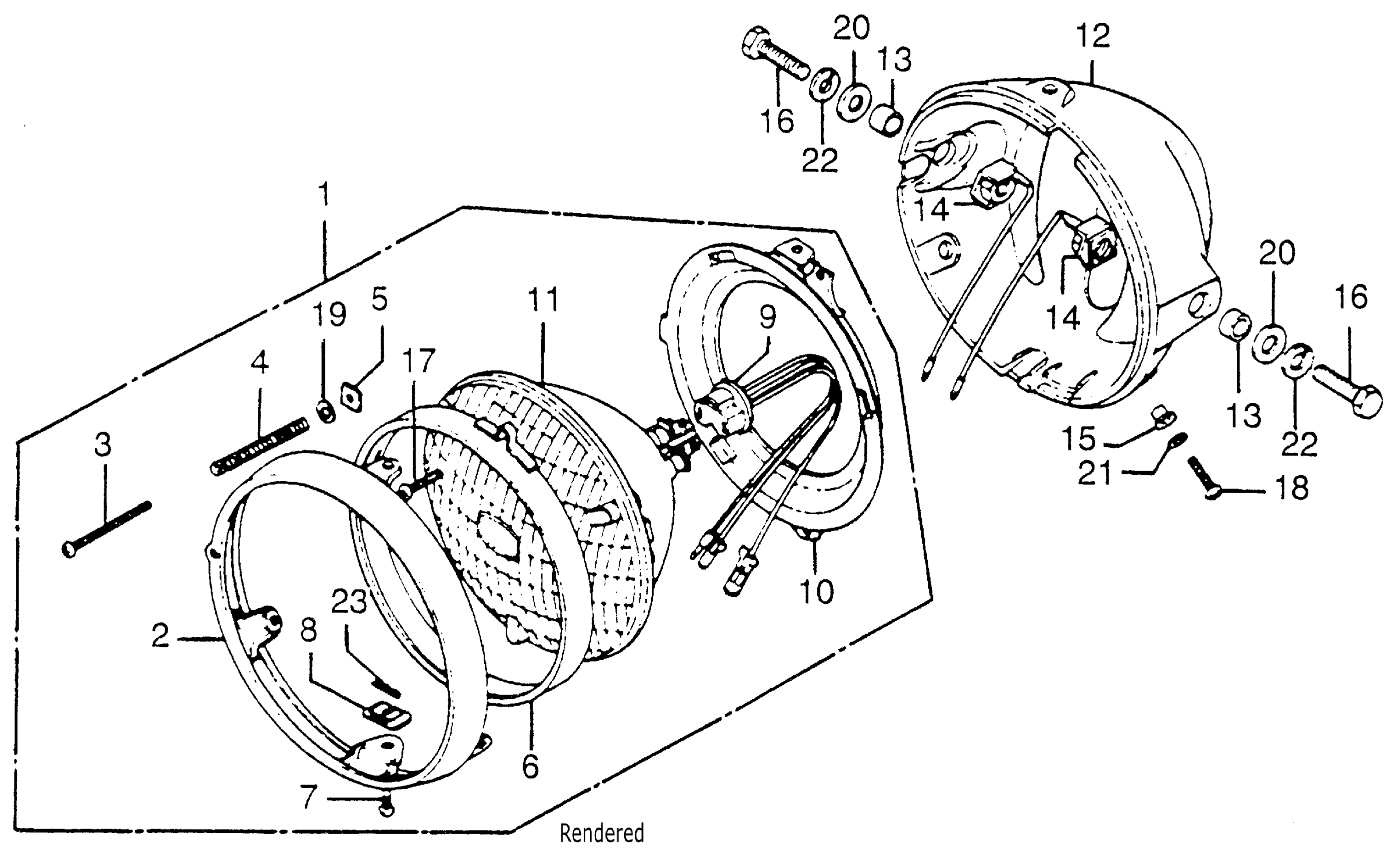

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 50/40W) (NOT AVAILABLE)

33100-341-701

Unavailable

2

RIM, HEADLIGHT This part replaces 33101-300-673.

33101-405-671

$71.39

2

RIM, HEADLIGHT

33101-405-671

$71.39

3

SCREW, BEAM ADJUSTING This part replaces 33103-300-003.

33103-MW3-610

$7.90

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

3

SCREW, BEAM ADJUSTING This part replaces 33103-371-980.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

6

RING, RETAINING (NOT AVAILABLE)

33121-300-672

Unavailable

7

SCREW, UNIT HOLDER

33125-292-670

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

SOCKET, HEADLIGHT (NOT AVAILABLE)

33130-300-003

Unavailable

9

SOCKET, HEADLIGHT (NOT AVAILABLE) This part replaces 33130-341-701.

33130-300-003

Unavailable

10

RING, SETTING

33153-300-671

$35.21

11

SET UNIT,HEAD LIG This part replaces 33321-341-701.

33120-431-505

Unavailable

11

SET UNIT,HEAD LIG This part replaces 33321-371-672.

33120-431-505

Unavailable

12

CASE, HEADLIGHT *NH1* (BLACK)

61301-300-020B

Unavailable

13

COLLAR, HEADLIGHT CASE

61302-300-000

Unavailable

14

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

15

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

16

BOLT, HEX. (10X25) This part replaces 92000-10025-0B.

92101-10025-0B

Unavailable

17

SCREW, PAN (3X12)

93500-03012-0A

$1.49

18

SCREW, PAN (5X16)

93500-05016-0B

$1.49

19

WASHER, PLAIN (4MM)

94101-04000

$1.49

20

WASHER, PLAIN (10MM)

94101-10200

$1.49

21

WASHER, SPRING (5MM)

94111-05000

$1.49

22

WASHER, SPRING (10MM)

94111-10800

$1.49

23

PIN, LOCK (5MM)

94251-05000

$1.49
