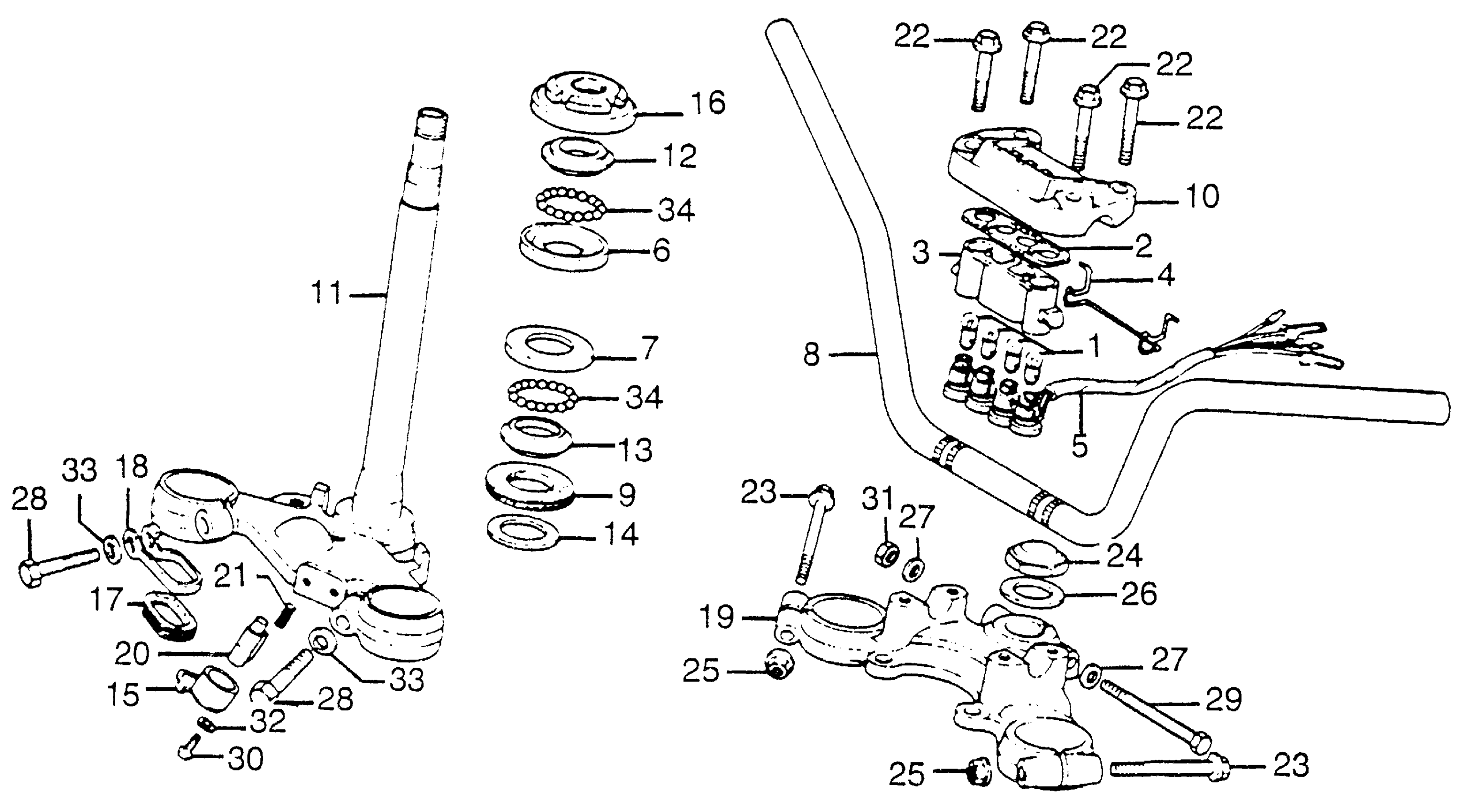

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 HANDLEBAR + STEM + TOP BRIDGE Diagram

#

Description
Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

2

BASE, LAMP SOCKET (NOT AVAILABLE)

37576-323-000

Unavailable

3

SOCKET, PILOT LAMP (NOT AVAILABLE)

37577-341-000

Unavailable

4

SPRING, LAMP SOCKET SETTING (NOT AVAILABLE)

37579-341-010

Unavailable

5

WIRE, PILOT LAMP (NOT AVAILABLE)

37581-374-670

Unavailable

6

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

6

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

7

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

7

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

7

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

8

HANDLEBAR (NOT AVAILABLE)

53100-341-700

Unavailable

9

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

9

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

10

HOLDER (UPPER) (NOT AVAILABLE)

53133-374-670

Unavailable

11

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-300-030B

Unavailable

12

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

12

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

12

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

13

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

13

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

13

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

14

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

15

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-317-000

Unavailable

16

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

17

GUIDE, CABLE (INNER) (NOT AVAILABLE)

53225-333-000

Unavailable

18

BRACKET, CABLE GUIDE (NOT AVAILABLE)

53226-341-700

Unavailable

19

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-341-701

Unavailable

20

LOCK, HANDLEBAR

35010-230-010

Unavailable

20

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

20

LOCK, HANDLEBAR This part replaces 53600-230-004.

35010-230-010

Unavailable

21

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

22

BOLT, FLANGE (8X36)

90111-362-000

$4.80

23

BOLT, FLANGE (7X54)

90155-369-000

$6.01

24

NUT, STEERING STEM This part replaces 90304-323-670.

90304-415-000

$19.83

24

NUT, STEERING STEM

90304-415-000

$19.83

24

NUT, STEERING STEM This part replaces 95020-11300.

90304-415-000

$19.83

25

NUT, FLANGE (7MM)

90355-369-000

$4.94

26

WASHER, STEERING STEM

90503-283-000

$4.37

27

WASHER, PLAIN (8MM)

90518-921-000

$1.49

27

WASHER, PLAIN (8MM) This part replaces 90518-931-000.

90518-921-000

$1.49

27

WASHER, PLAIN (8MM) This part replaces 90555-283-000.

90518-921-000

$1.49

28

BOLT, HEX. (10X40) | Use up to Frame SN 2569112 This part replaces 92000-10040-0A.

92101-10040-0A

$2.84

28

BOLT, HEX. (10X40) | Use up to Frame SN 2569112

92101-10040-0A

$2.84

28

BOLT, FLANGE (10X40) | Use from Frame SN 2569113 This part replaces 95700-10040-0A.

95701-10040-00

$1.51

28

BOLT, FLANGE (10X40) | Use from Frame SN 2569113 This part replaces 95700-10040-00.

95701-10040-00

$1.51

28

BOLT, FLANGE (10X40) | Use from Frame SN 2569113

95701-10040-00

$1.51

29

BOLT, HEX. (8X74) This part replaces 93000-08074-0B.

93101-08074-0B

Unavailable

30

SCREW, PAN (3X8)

93500-03008-0A

$1.49

31

NUT, HEX. (8MM)

94001-08020-0S

$1.49

32

WASHER, PLAIN (3MM)

94101-03000

$1.49

33

WASHER, PLAIN (10MM) | Use up to Frame SN 2569112

94102-10000

$1.49

34

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
