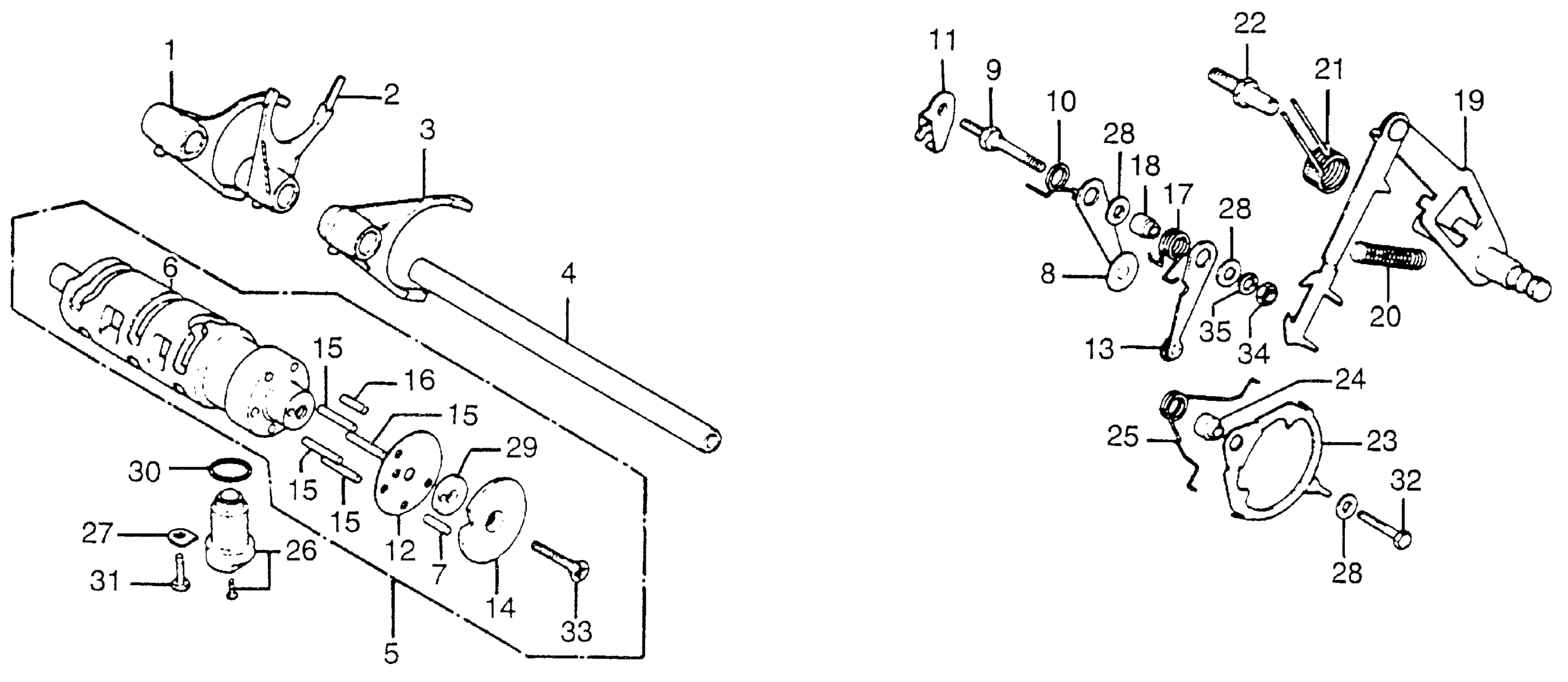

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 GEARSHIFT DRUM + SPINDLE Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-300-020

Unavailable

2

FORK, CENTER GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 2468527 This part replaces 24212-300-020.

24212-300-030

Unavailable

2

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24212-300-030

Unavailable

3

FORK, L. GEARSHIFT (NOT AVAILABLE)

24213-300-020

Unavailable

4

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24261-300-030

Unavailable

5

DRUM ASSY., GEARSHIFT | Use from Engine SN 2434657

24300-392-000

Unavailable

6

DRUM, GEARSHIFT | Use up to Engine SN 2434656

24301-300-040

Unavailable

7

PIN, GEARSHIFT DRUM | Use from Engine SN 2434657 This part replaces 24421-200-000.

24421-230-000

$5.80

7

PIN, GEARSHIFT DRUM | Use from Engine SN 2434657

24421-230-000

$5.80

8

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE) | Use up to Engine SN 2439606

24430-300-040

Unavailable

8

STOPPER, SHIFT DRUM (NOT AVAILABLE) | Use from Engine SN 2439607

24430-392-000

Unavailable

9

SHAFT, SHIFT DRUM STOPPER PIVOT (NOT AVAILABLE)

24434-300-000

Unavailable

10

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-300-030

Unavailable

11

PLATE, GEARSHIFT FORK SHAFT STOPPER (NOT AVAILABLE) | Use up to Engine SN 2435585

24436-300-010

Unavailable

11

PLATE, SHIFT FORK SHAFT STOPPER (NOT AVAILABLE) | Use from Engine SN 2435586

24436-392-000

Unavailable

12

PLATE, SPACER (NOT AVAILABLE) | Use up to Engine SN 2434656

24438-300-000

Unavailable

12

PLATE, SPACER (NOT AVAILABLE) | Use from Engine SN 2434657

24438-392-000

Unavailable

13

ARM, NEUTRAL STOPPER (NOT AVAILABLE) | Use up to Engine SN 2439606

24440-300-020

Unavailable

13

ARM, NEUTRAL STOPPER (NOT AVAILABLE) | Use from Engine SN 2439607

24440-392-000

Unavailable

14

PLATE, NEUTRAL STOPPER (NOT AVAILABLE) | Use up to Engine SN 2434656

24441-300-020

Unavailable

14

PLATE, NEUTRAL STOPPER (NOT AVAILABLE) | Use from Engine SN 2434657

24441-392-000

Unavailable

15

ROLLER (4X23.8) (NOT AVAILABLE)

24443-300-000

Unavailable

16

ROLLER (4X20.8) This part replaces 24444-300-000.

96220-40208

$1.49

16

ROLLER (4X20.8)

96220-40208

$1.49

17

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24445-300-020

Unavailable

18

PIVOT, NEUTRAL STOPPER (NOT AVAILABLE)

24447-300-000

Unavailable

19

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-300-010

Unavailable

20

SPRING, GEARSHIFT ARM (NOT AVAILABLE)

24641-300-000

Unavailable

21

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-300-020

Unavailable

22

PIN, SHIFT RETURN SPRING | Use from Engine SN 2471674

24652-035-000

$4.01

22

PIN, SHIFT RETURN SPRING (NOT AVAILABLE) | Use up to Engine SN 2471673

24652-300-000

Unavailable

23

STOPPER, GEARSHIFT POSITIVE (NOT AVAILABLE)

24661-300-000

Unavailable

24

COLLAR, STOPPER ARM (NOT AVAILABLE)

24663-300-000

Unavailable

25

SPRING, POSITIVE STOPPER

24666-300-000

Unavailable

26

SWITCH ASSY., NEUTRAL This part replaces 35752-300-010.

35752-300-020

$86.26

26

SWITCH ASSY., NEUTRAL

35752-300-020

$86.26

27

STOPPER, NEUTRAL SWITCH (NOT AVAILABLE)

35754-300-020

Unavailable

28

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)

90417-001-000

Unavailable

28

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE) This part replaces 90417-028-000.

90417-001-000

Unavailable

29

WASHER (20MM) (NOT AVAILABLE) | Use up to Engine SN 2434656

90436-300-000

Unavailable

29

WASHER (20MM) (NOT AVAILABLE) | Use from Engine SN 2434657

90436-392-000

Unavailable

30

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

30

O-RING (18X3)

91307-035-000

$2.92

30

O-RING (18X3) This part replaces 91311-044-000.

91307-035-000

$2.92

31

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

31

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

32

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

32

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

33

SCREW, FLAT (6X28) This part replaces 93600-06028.

93600-06028-0A

$1.49

33

SCREW, FLAT (6X28)

93600-06028-0A

$1.49

34

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM)

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

35

WASHER, SPRING (6MM)

94111-06000

$1.49
