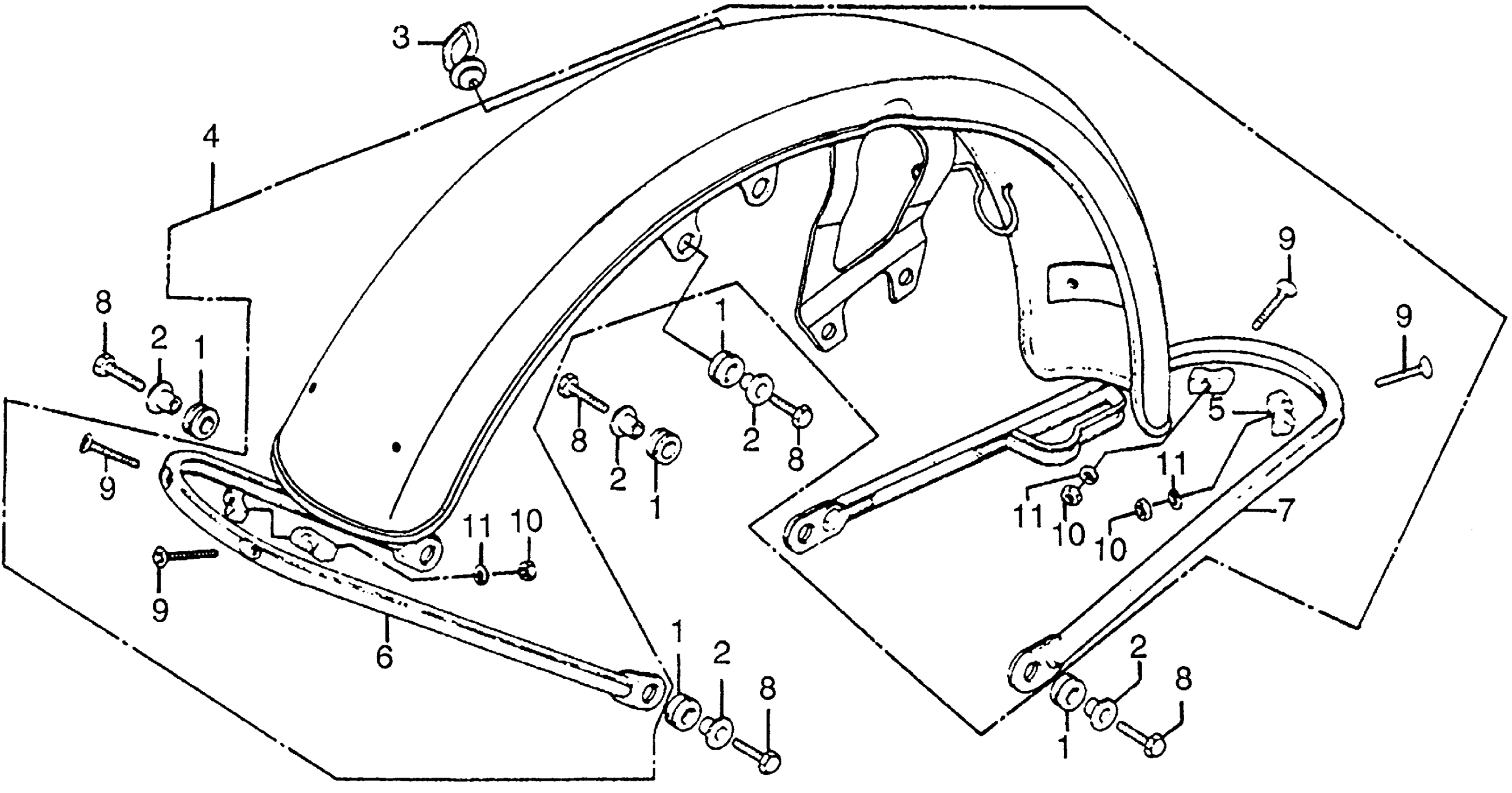

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 FRONT FENDER Diagram

RUBBER, CHAIN CASE SETTING

40513-310-000

$2.55

COLLAR, CHAIN CASE

40514-310-000

$6.26

GROMMET, CABLE This part replaces 45451-283-000.

45451-367-690

$4.04

GROMMET, CABLE

45451-367-690

$4.04

FENDER, FR. *MRCR2* (CHROME PLATING)

61100-341-700XW

Unavailable

PIECE, FENDER MOUNT

61102-300-000

$6.26

STAY A, FR. FENDER (NOT AVAILABLE)

61111-341-700

Unavailable

STAY B, FR. FENDER

61112-341-700

Unavailable

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

SCREW, OVAL (5X25)

93700-05025-0B

$1.49

NUT, HEX. (5MM)

94001-05000-0S

$2.74

WASHER, SPRING (5MM)

94111-05000

$1.49
