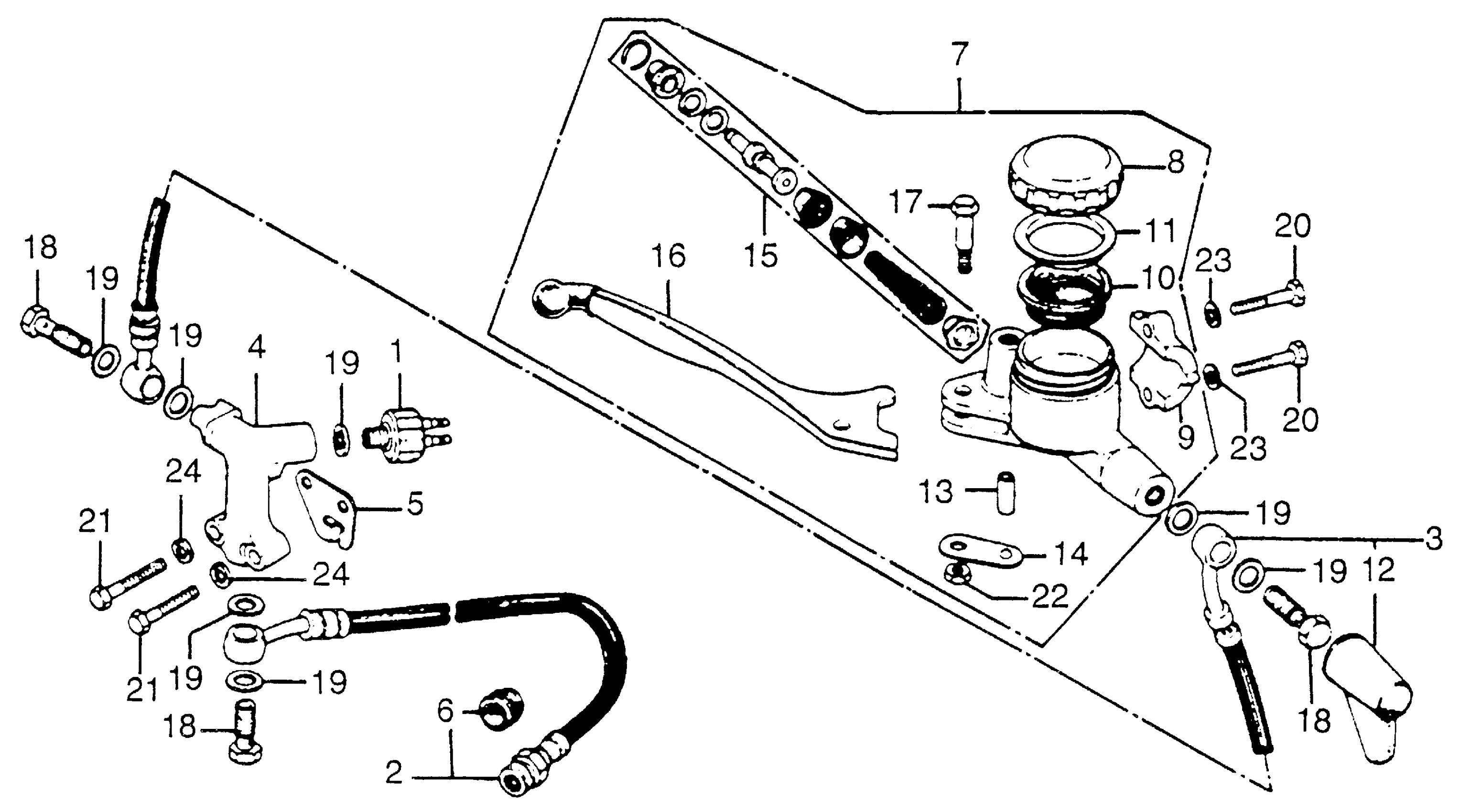

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH, STOP (NOT AVAILABLE)

35350-300-016

Unavailable

HOSE ASSY. A, FR. BRAKE (NICHIRIN)

45125-379-003

Unavailable

HOSE B, FR. BRAKE (NICHIRIN)

45126-341-003

Unavailable

JOINT, THREE-WAY (NOT AVAILABLE)

45127-300-020

Unavailable

GUIDE, FR. BRAKE HOSE (NOT AVAILABLE)

45129-300-000

Unavailable

GROMMET, BRAKE HOSE

45146-300-000

$4.24

MASTER CYLINDER ASSY. (N/A: SEE COMPONENTS)

45500-341-771

Unavailable

CAP, OIL CUP

43513-MJ6-006

Unavailable

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

HOLDER, MASTER CYLINDER This part replaces 45517-300-003.

45517-MA5-671

$29.30

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

BOOT, MASTER CYLINDER

45522-300-010

$9.29

BUSH, R. HANDLEBAR CONTROL LEVER

45526-341-000

Unavailable

PLATE, CONTROL LEVER BUSH SETTING

45527-300-000

Unavailable

MASTER CYLINDER SET

45530-377-305

$62.67

LEVER, R. HANDLEBAR

53175-369-003

Unavailable

BOLT, HANDLEBAR LEVER PIVOT

90114-300-000

$8.07

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

BOLT, OIL

90145-300-010

$9.68

WASHER, OIL BOLT

90545-300-000

$3.99

BOLT, HEX. (6X25) This part replaces 92000-06025-02.

92101-06025-0B

$2.28

BOLT, HEX. (6X25)

92101-06025-0B

$2.28

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49
