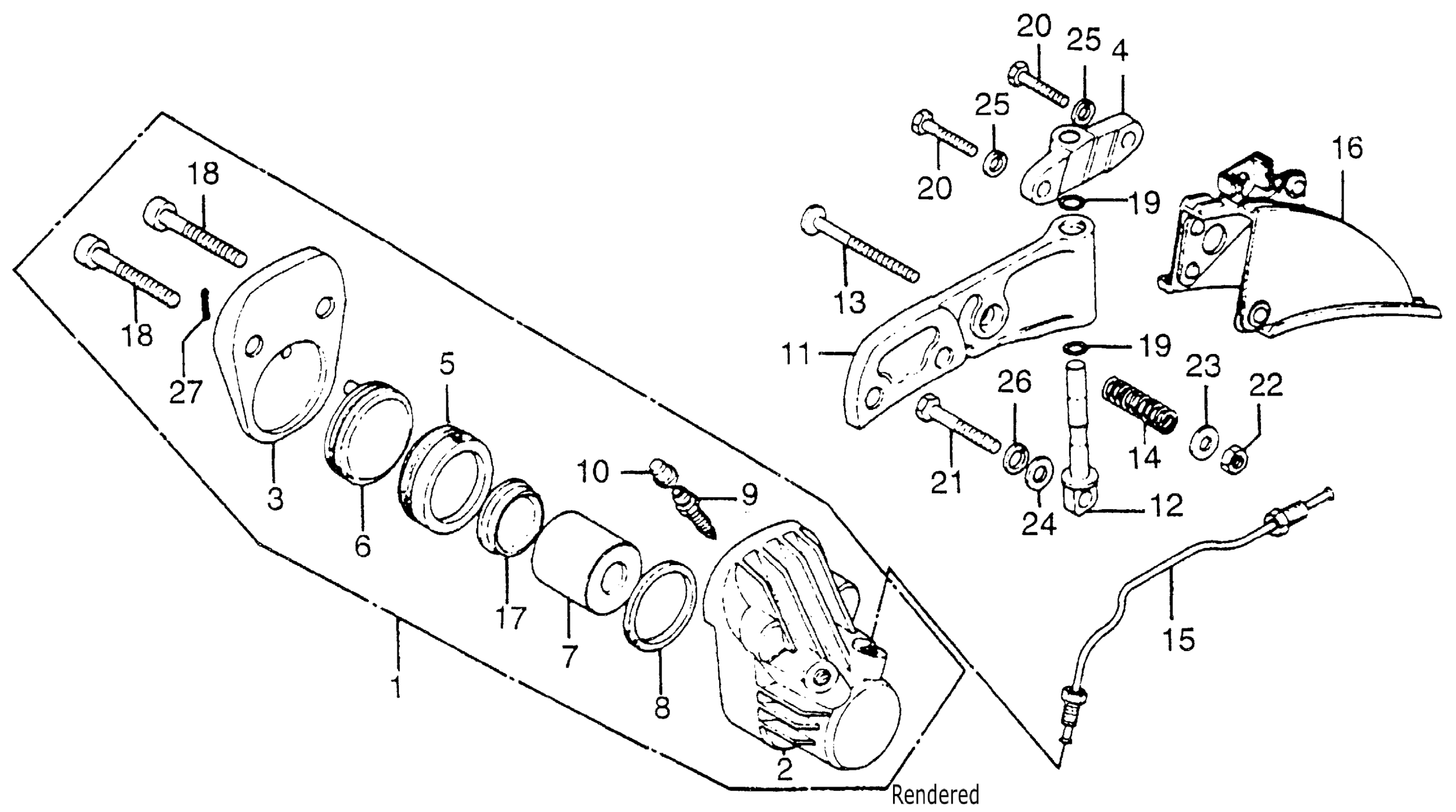

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD A This part replaces 45105-341-000.

45105-341-305

Unavailable

NI

PAD A

45105-341-305

Unavailable

NI

PAD B, FR. BRAKE This part replaces 45106-341-000.

45106-341-305

Unavailable

NI

PAD B, FR. BRAKE

45106-341-305

Unavailable

1

CALIPER ASSY. (TOKIKO) (NOT AVAILABLE)

45100-341-003

Unavailable

2

CALIPER A (TOKIKO) (NOT AVAILABLE)

45101-300-053

Unavailable

3

CALIPER B (TOKIKO) (NOT AVAILABLE)

45102-300-043

Unavailable

4

JOINT, CALIPER HOLDER

45104-317-700

Unavailable

5

PAD A This part replaces 45105-341-000.

45105-341-305

Unavailable

5

PAD A

45105-341-305

Unavailable

6

PAD B, FR. BRAKE This part replaces 45106-341-000.

45106-341-305

Unavailable

6

PAD B, FR. BRAKE

45106-341-305

Unavailable

7

PISTON (TOKIKO)

45107-300-003

Unavailable

8

SEAL, PISTON (TOKIKO)

45108-300-003

$11.70

9

BLEEDER

45109-300-003

Unavailable

10

CAP, BLEEDER SCREW

45110-300-003

$3.26

11

HOLDER, CALIPER (NOT AVAILABLE)

45115-341-670

Unavailable

12

PIN, CALIPER HOLDER This part replaces 45116-323-020.

45116-367-690

Unavailable

13

BOLT, CALIPER ADJUSTING

45117-341-700

$5.85

14

SPRING, CALIPER ADJ.

45119-300-020

$5.19

15

PIPE B, FR. BRAKE

45128-341-670

Unavailable

16

COVER, DISK (NOT AVAILABLE)

45140-341-670

Unavailable

17

SEAT, PAD

45151-300-000

Unavailable

18

BOLT, CALIPER MOUNT (TOKIKO)

90165-300-023

$11.02

19

O-RING (9.5X1.7)

91259-333-000

$3.69

20

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

20

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

21

BOLT, HEX. (8X35) This part replaces 92200-08035-0A.

92201-08035-0A

$1.49

21

BOLT, HEX. (8X35)

92201-08035-0A

$1.49

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

PIN, COTTER (1.6X12)

94201-16120

$1.49
