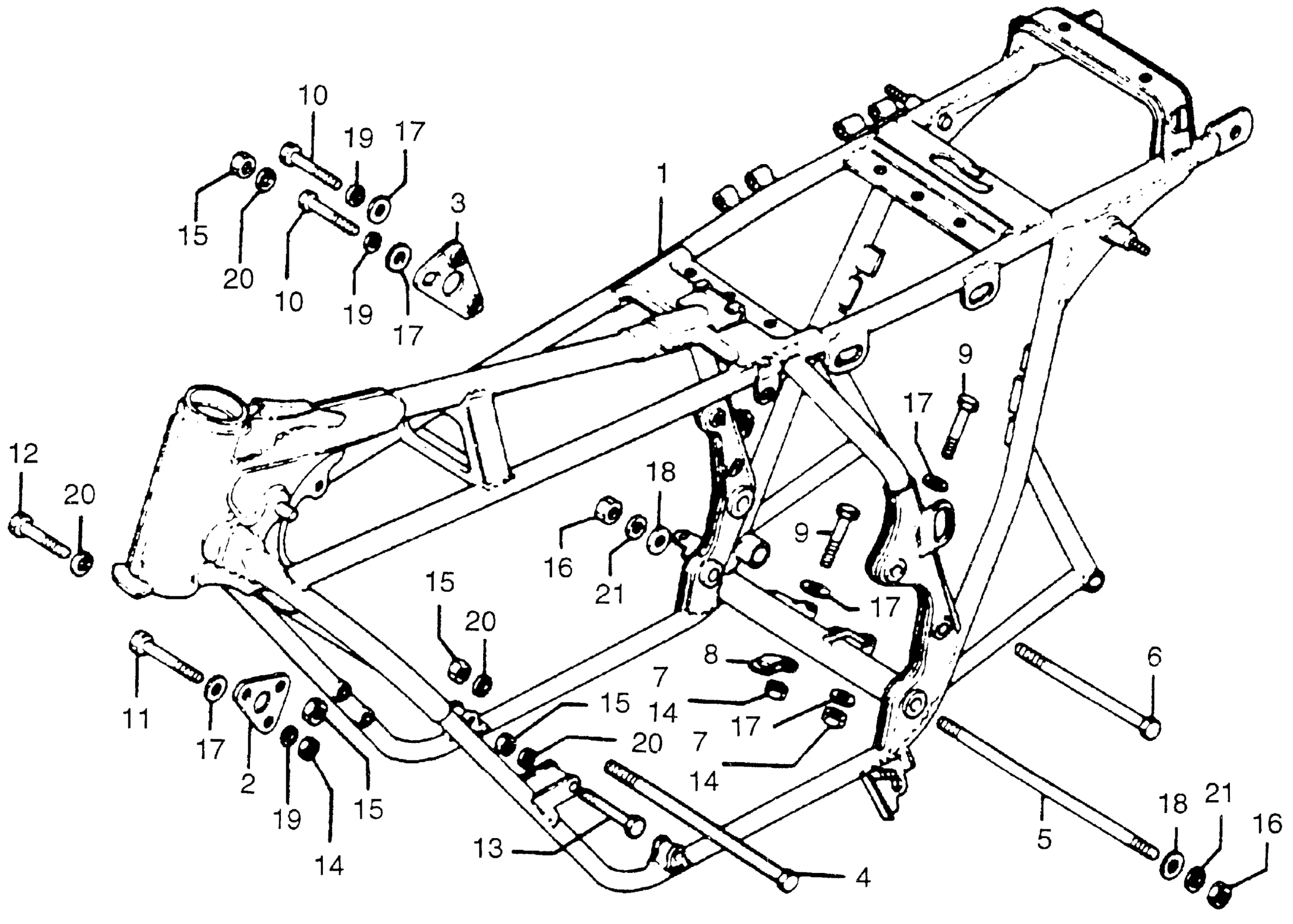

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 FRAME Diagram

#

Description
Price

1

FRAME *NH1* (BLACK)

50100-341-670ZA

Unavailable

2

BRACKET, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50351-300-040B.

50351-405-970B

Unavailable

2

BRACKET, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-405-970B

Unavailable

3

BRACKET, RR. ENGINE HANGER *NH1* (BLACK)

50356-300-010B

Unavailable

4

BOLT A, ENGINE HANGER (NOT AVAILABLE)

90152-300-010

Unavailable

5

BOLT, RR. ENGINE HANGER (LOWER) (NOT AVAILABLE)

90155-300-000

Unavailable

6

BOLT C, ENGINE HANGER (NOT AVAILABLE)

90156-300-000

Unavailable

7

NUT, FLANGE (8MM) | Use from Frame SN 2575895 This part replaces 90236-300-000.

94050-08000

$0.86

7

NUT, FLANGE (8MM) | Use from Frame SN 2575895

94050-08000

$0.86

8

WASHER, BATTERY BREATHER TUBE GUIDE (NOT AVAILABLE)

90514-341-670

Unavailable

9

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.71

9

BOLT, HEX. (8X40)

92101-08040-0A

$1.71

10

BOLT, HEX. (8X45) This part replaces 92000-08045-0A.

92101-08045-0A

$1.94

10

BOLT, HEX. (8X45)

92101-08045-0A

$1.94

11

BOLT, HEX. (8X60) This part replaces 92000-08060-0A.

92101-08060-0A

Unavailable

12

BOLT, HEX. (10X50) This part replaces 92000-10050-0A.

92101-10050-0A

$2.75

12

BOLT, HEX. (10X50)

92101-10050-0A

$2.75

13

BOLT, HEX. (10X80)

92200-10080-0A

Unavailable

14

NUT, HEX. (8MM) | Use up to Frame SN 2575894

94001-08000-0S

$1.19

14

NUT, HEX. (8MM) | Use from Frame SN 2575895

94001-08000-0S

$1.19

15

NUT, HEX. (10MM)

94030-10200

$0.88

16

NUT, HEX. (12MM)

94030-12200

$1.58

17

WASHER, PLAIN (8MM) | Use up to Frame SN 2575894

94101-08000

$0.75

17

WASHER, PLAIN (8MM) | Use from Frame SN 2575895

94101-08000

$0.75

18

WASHER, FLAT (12MM)

94102-12000

$1.12

19

WASHER, SPRING (8MM)

94111-08000

$0.90

20

WASHER, SPRING (8MM)

94111-10000

$1.22

21

WASHER, SPRING (12MM)

94111-12000

$1.12
