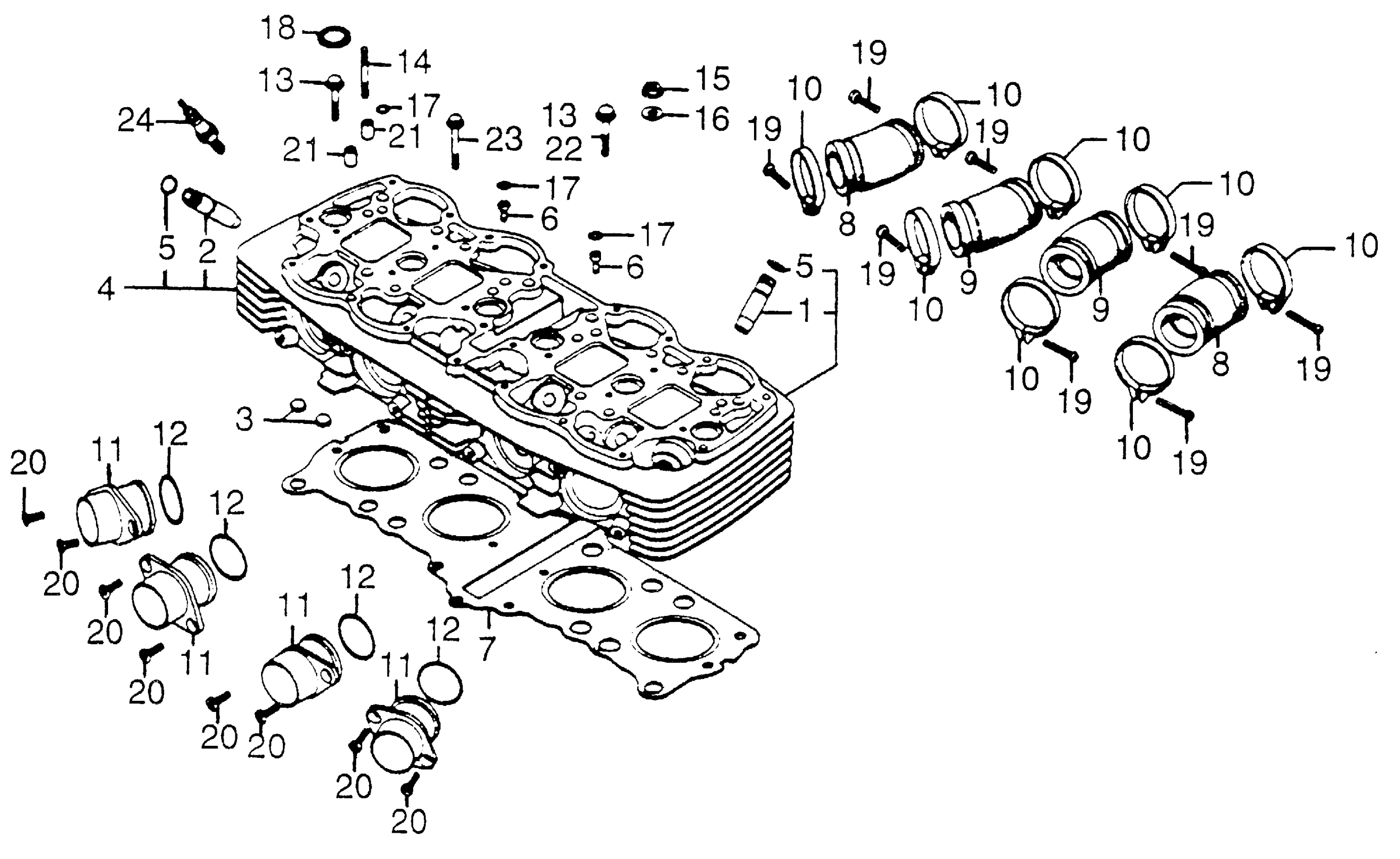

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE

12025-300-300

Unavailable

2

GUIDE, EX. VALVE

12027-300-330

Unavailable

3

RUBBER, INSERT This part replaces 12195-300-000.

12620-286-000

$5.85

3

RUBBER, INSERT

12620-286-000

$5.85

4

CYLINDER HEAD (NOT AVAILABLE)

12200-300-405

Unavailable

5

CLIP, VALVE GUIDE

12211-250-310

$4.39

6

ORIFICE, OIL CONTROL (NOT AVAILABLE)

12238-300-010

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-300-004.

12251-300-306

Unavailable

7

GASKET, CYLINDER HEAD | Use up to Engine SN 2456065 This part replaces 12251-300-004.

12251-300-306

Unavailable

7

GASKET, CYLINDER HEAD | Use up to Engine SN 2456065 This part replaces 12251-300-070.

12251-300-306

Unavailable

7

GASKET, CYLINDER HEAD

12251-300-306

Unavailable

7

GASKET, CYLINDER HEAD | Use up to Engine SN 2456065

12251-300-306

Unavailable

8

INSULATOR A, CARBURETOR

16211-300-030

$37.28

9

INSULATOR B, CARBURETOR

16212-300-030

$38.95

10

BAND, INSULATOR

16223-KS5-000

$14.20

10

BAND, INSULATOR This part replaces 17255-300-010.

16223-KS5-000

$14.20

11

FLANGE, EX. PIPE

18236-300-030

Unavailable

12

GASKET, EX. PIPE

18291-MM5-860

$5.17

12

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

13

BOLT, FLANGE (6X35) | Use up to Engine SN 2473183 This part replaces 90049-300-000.

95701-06035-00

$1.80

13

BOLT, FLANGE (6X35) | Use up to Engine SN 2473183 This part replaces 90146-371-980.

95701-06035-00

$1.80

13

BOLT, FLANGE (6X35) | Use up to Engine SN 2473183 This part replaces 95700-06035.

95701-06035-00

$1.80

13

BOLT, FLANGE (6X35) | Use up to Engine SN 2473183 This part replaces 95700-06035-00.

95701-06035-00

$1.80

13

BOLT, FLANGE (6X35) | Use from Engine SN 2473184 This part replaces 95700-06035-00.

95701-06035-00

$1.80

13

BOLT, FLANGE (6X35) | Use up to Engine SN 2473183

95701-06035-00

$1.80

13

BOLT, FLANGE (6X35) | Use from Engine SN 2473184

95701-06035-00

$1.80

14

BOLT, STUD (6X58) (NOT AVAILABLE)

90055-300-000

Unavailable

15

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

15

NUT, FLANGE (8MM)

94050-08000

$1.49

16

WASHER, THRUST (14MM)

90485-035-000

$2.92

17

O-RING (5.8X1.9)

91305-323-000

$2.92

17

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

18

RUBBER, SEALING

91318-300-013

$4.85

19

SCREW, PAN (4X22)

93500-04022-0A

$1.49

20

SCREW, FLAT (8X22)

93600-08022

$1.28

21

PIN A, DOWEL (8X14)

94301-08140

$2.25

22

BOLT, FLANGE (6X35) | Use up to Engine SN 2473183 This part replaces 95700-06036-00.

95701-06035-00

$1.80

22

BOLT, FLANGE (6X35) | Use up to Engine SN 2473183

95701-06035-00

$1.80

23

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

23

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

24

SPARK PLUG (D8EA) (NGK) This part replaces 98069-38710.

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58711.

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58717-S.

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58720.

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58721.

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK) This part replaces 98079-58721.

98069-58717

$2.44
