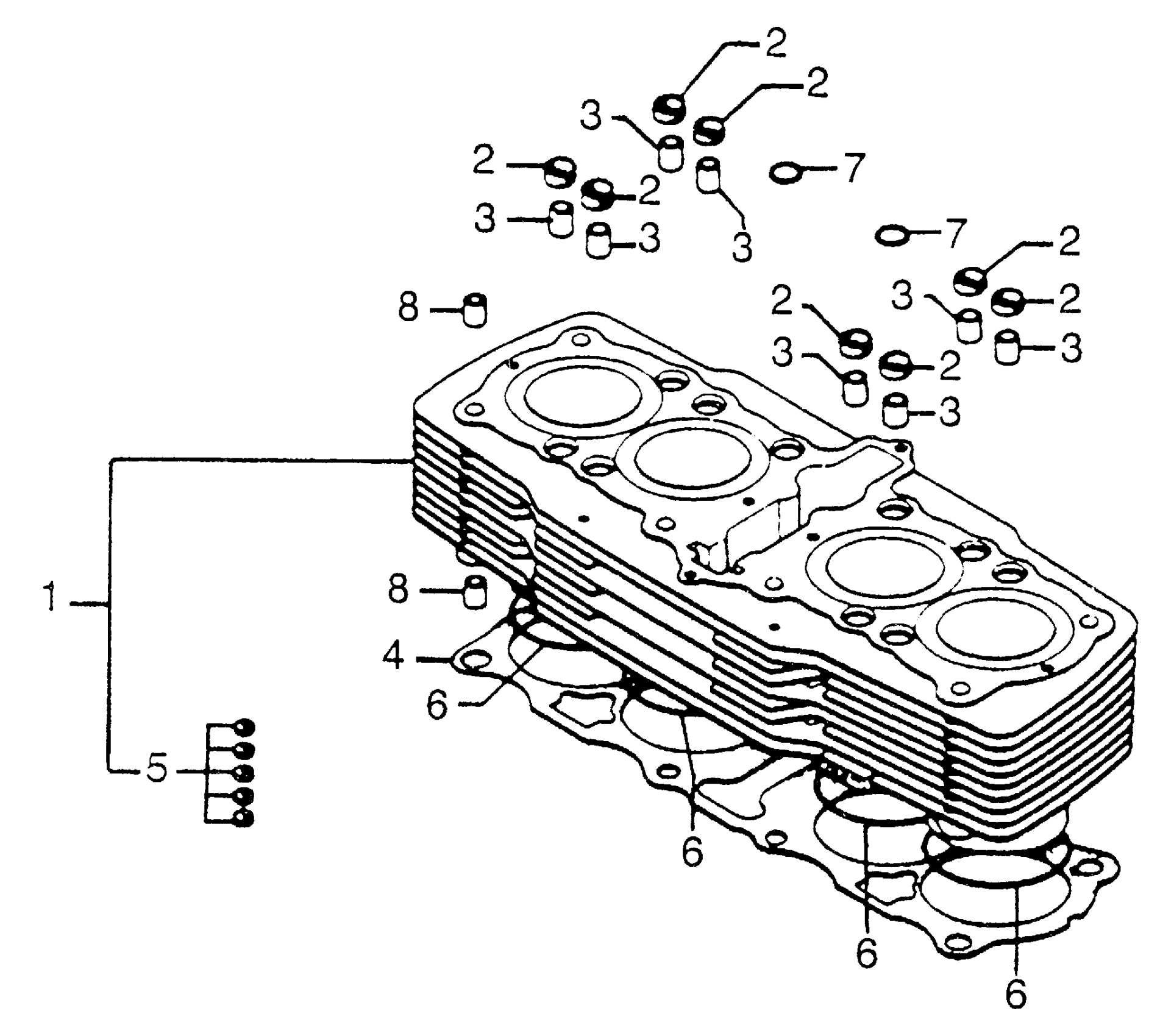

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 CYLINDER Diagram

#

Description

Price

1

CYLINDER (NOT AVAILABLE) This part replaces 12100-300-050.

12100-300-060

Unavailable

1

CYLINDER (NOT AVAILABLE)

12100-300-060

Unavailable

2

GASKET, CYLINDER STUD BOLT

12115-300-000

Unavailable

3

PIN, SPECIAL KNOCK (12MM)

12116-300-000

$4.57

4

GASKET, CYLINDER This part replaces 12191-300-030.

12191-300-306

Unavailable

4

GASKET, CYLINDER

12191-300-306

Unavailable

5

RUBBER, INSERT This part replaces 12195-300-000.

12620-286-000

$5.85

5

RUBBER, INSERT

12620-286-000

$5.85

6

O-RING (61.8X2.0)

91304-286-000

$10.25

7

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$5.19

7

O-RING (11X2.5) This part replaces 91310-300-000.

91310-426-000

$5.19

7

O-RING (11X2.5)

91310-426-000

$5.19

7

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$5.19

8

PIN, DOWEL (12X18)

94301-12180

$2.59
