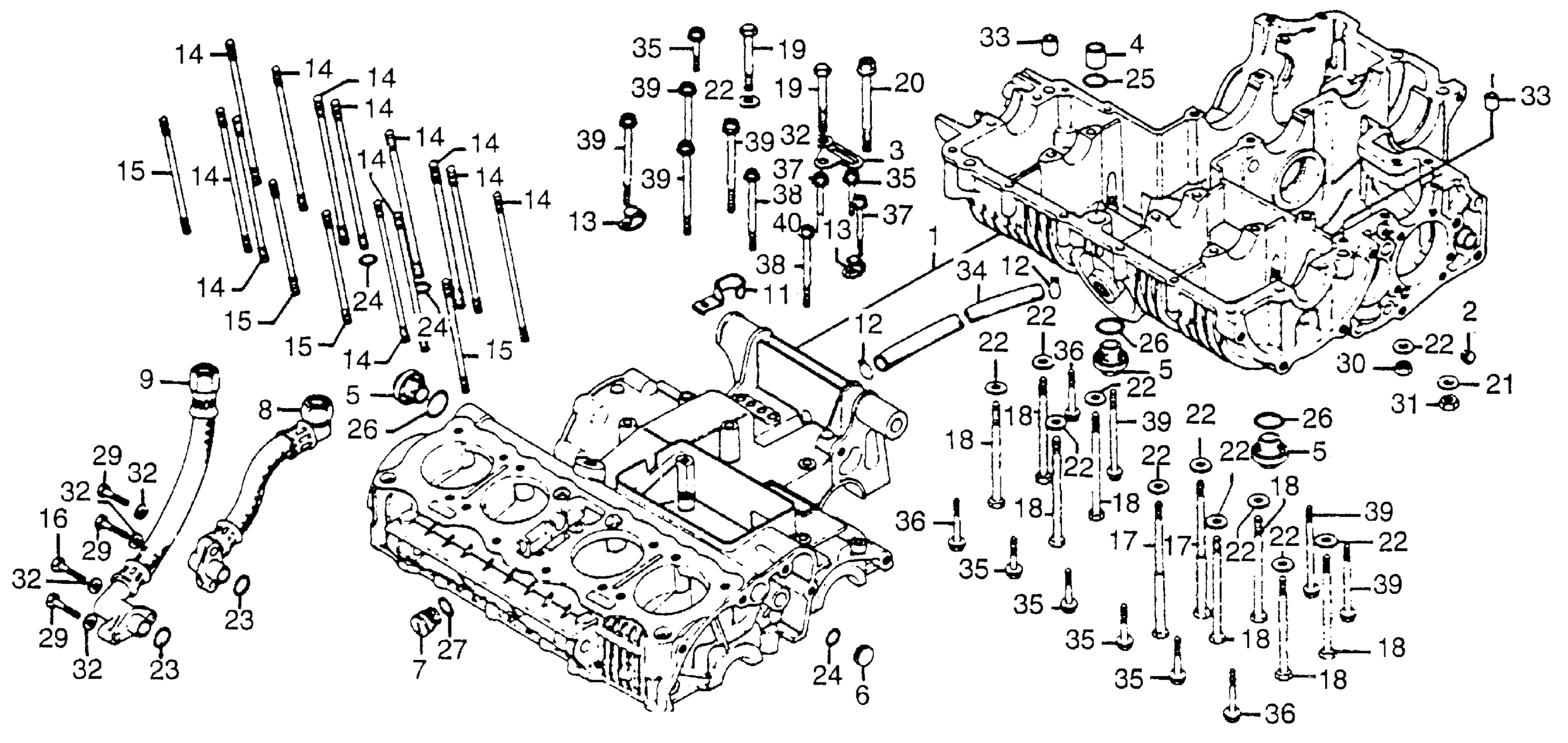

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY. (NOT AVAILABLE) | Use up to Engine SN 2472083 This part replaces 11000-300-305.

11000-300-315

Unavailable

1

CRANKCASE ASSY. (NOT AVAILABLE) | Use up to Engine SN 2472083

11000-300-315

Unavailable

1

CRANKCASE SET | Use from Engine SN 2472084

11000-341-010

Unavailable

2

PLUG, SEALING RUBBER (8.5MM) (NOT AVAILABLE)

11209-300-000

Unavailable

3

GUIDE, OVERFLOW (NOT AVAILABLE)

11355-300-000

Unavailable

4

COLLAR, OIL PASSAGE (18MM)

15326-300-000

Unavailable

5

CAP, OIL PASSAGE

15331-300-000

Unavailable

6

PLUG, OIL PASSAGE (NOT AVAILABLE)

15336-300-010

Unavailable

7

PLUG, OIL TUBE

15337-300-010

Unavailable

8

HOSE A, OIL (NOT AVAILABLE)

15510-300-017

Unavailable

9

HOSE B, OIL (NOT AVAILABLE)

15520-300-007

Unavailable

11

CLAMP, BREATHER TUBE (NOT AVAILABLE)

15765-341-000

Unavailable

12

CLIP, BREATHER TUBE

15772-551-000

$1.81

12

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.10

13

CLAMP, CABLE (NOT AVAILABLE)

32111-300-000

Unavailable

14

BOLT A, CYLINDER STUD

90033-300-030

Unavailable

14

BOLT A, CYLINDER STUD This part replaces 90033-300-040.

90033-300-030

Unavailable

15

BOLT B, CYLINDER STUD (NOT AVAILABLE) This part replaces 90034-300-030.

90034-300-040

Unavailable

15

BOLT B, CYLINDER STUD (NOT AVAILABLE)

90034-300-040

Unavailable

16

BOLT-WASHER (6X25) This part replaces 90040-300-000.

93401-06025-00

$0.84

16

BOLT-WASHER (6X25)

93401-06025-00

$0.84

16

BOLT-WASHER (6X25) This part replaces 93481-06025.

93401-06025-00

$0.84

16

BOLT-WASHER (6X25) This part replaces 93481-06025-00.

93401-06025-00

$0.84

17

BOLT, HEX. (8X140) (NOT AVAILABLE)

90041-300-000

Unavailable

18

BOLT, HEX. (8X120) This part replaces 90042-300-000.

92101-08120-0H

Unavailable

18

BOLT, HEX. (8X120)

92101-08120-0H

Unavailable

19

BOLT, HEX. (8X56) (NOT AVAILABLE) | Use up to Engine SN 2472083

90046-300-000

Unavailable

19

BOLT, FLANGE (8X55) | Use from Engine SN 2472084 This part replaces 95700-08055-00.

95701-08055-00

$2.23

19

BOLT, FLANGE (8X55) | Use from Engine SN 2472084

95701-08055-00

$2.23

20

BOLT, HEX. (10X82) (NOT AVAILABLE)

90048-300-000

Unavailable

21

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

Unavailable

21

WASHER (10MM) This part replaces 90403-300-000.

90403-ML4-611

Unavailable

21

WASHER (10MM) This part replaces 90403-413-000.

90403-ML4-611

Unavailable

21

WASHER (10MM) This part replaces 90403-413-010.

90403-ML4-611

Unavailable

22

WASHER, THRUST (14MM) | Use up to Engine SN 2474688

90485-035-000

$2.68

22

WASHER, THRUST (14MM) | Use from Engine SN 2474689

90485-035-000

$2.68

23

O-RING (15X2.5)

91302-377-000

$4.94

23

O-RING (15X2.5) This part replaces 91304-028-000.

91302-377-000

$4.94

24

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$4.83

24

O-RING (11X2.5)

91310-426-000

$4.83

24

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$4.83

25

O-RING (18X3) (ARAI)

91307-KF0-003

$2.67

25

O-RING (18X3)

91307-035-000

$2.71

25

O-RING (18X3) This part replaces 91311-044-000.

91307-035-000

$2.71

26

O-RING (19.4X2.8) This part replaces 91315-044-000.

94608-40000

$1.20

26

O-RING (19.4X2.8)

94608-40000

$1.20

27

O-RING (13X2.5)

91319-300-000

$4.71

29

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

29

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

30

NUT, HEX. (8MM)

94001-08000-0S

$1.19

31

NUT, HEX. (10MM)

94001-10000-0S

$1.32

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

32

WASHER, PLAIN (6MM)

94101-06800

Unavailable

33

PIN A, DOWEL (10X16)

94301-10160

$2.24

34

BULK HOSE, VACUUM (12X1000) (12X185)

95005-12001-20M

Unavailable

35

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.71

35

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

36

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$1.97

36

BOLT, FLANGE (6X50)

95701-06050-00

$1.97

37

BOLT, FLANGE (6X56) (NOT AVAILABLE)

95700-06056-00

Unavailable

38

BOLT, FLANGE (6X80) | Use up to Engine SN 2472083 This part replaces 95700-06080-00.

95701-06080-00

$2.30

38

BOLT, FLANGE (6X80) | Use from Engine SN 2472084 This part replaces 95700-06080-00.

95701-06080-00

$2.30

38

BOLT, FLANGE (6X80) | Use up to Engine SN 2472083

95701-06080-00

$2.30

38

BOLT, FLANGE (6X80) | Use from Engine SN 2472084

95701-06080-00

$2.30

39

BOLT, FLANGE (6X100) This part replaces 95700-06100-00.

95701-06100-00

$2.75

39

BOLT, FLANGE (6X100)

95701-06100-00

$2.75

40

BOLT, FLANGE (8X80) | Use from Engine SN 2472084 This part replaces 95700-08080-00.

95701-08080-00

$1.57

40

BOLT, FLANGE (8X80) | Use from Engine SN 2472084

95701-08080-00

$1.57
