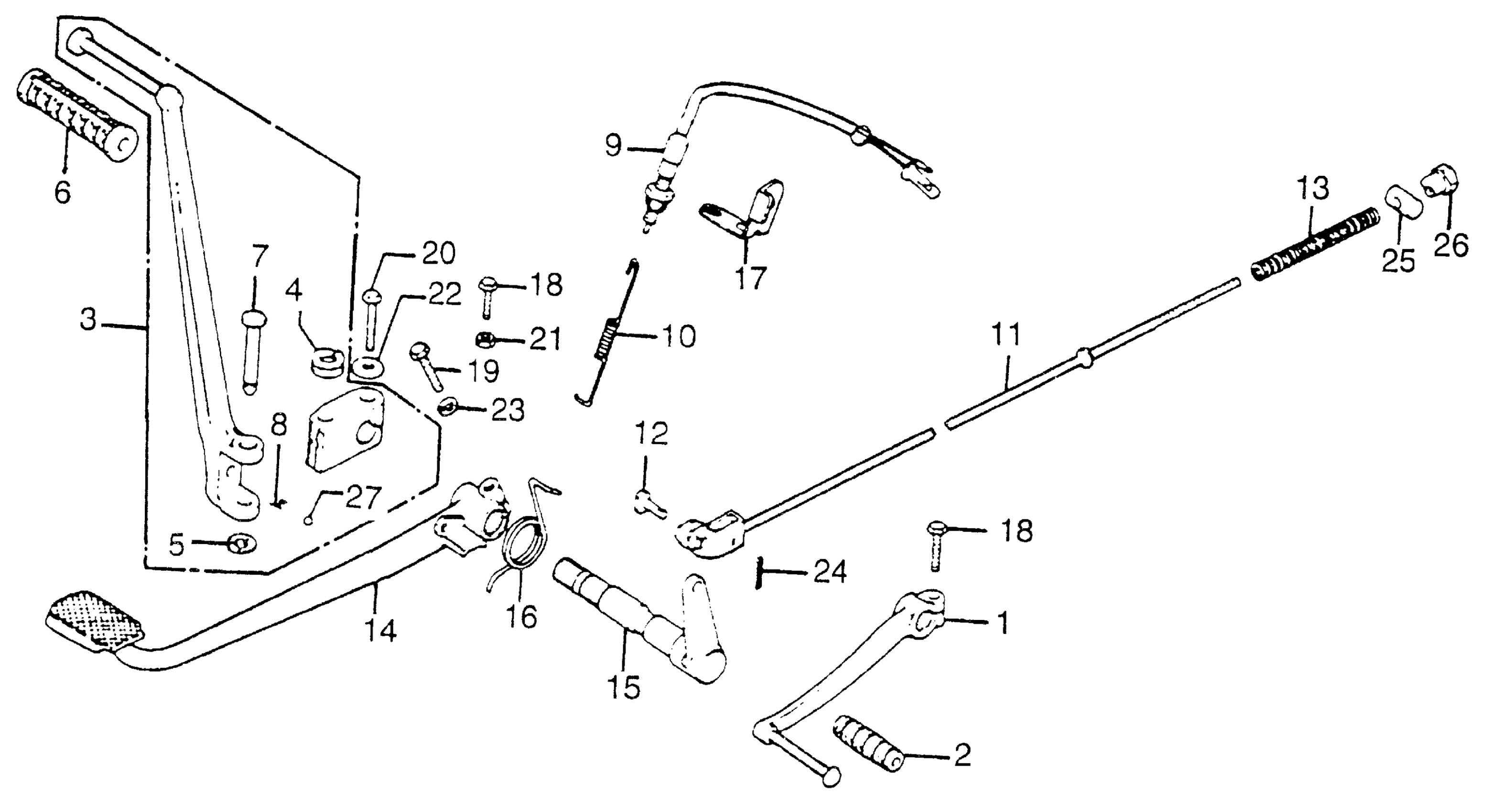

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 CHANGE PEDAL + BRAKE PEDAL + KICK ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-300-020

Unavailable

2

RUBBER, CHANGE PEDAL This part replaces 24781-205-000.

95011-40000

$1.49

2

RUBBER, CHANGE PEDAL This part replaces 24781-268-000.

95011-40000

$1.49

2

RUBBER, SHIFT PEDAL

95011-40000

$1.49

3

STARTER ASSY., KICK (NOT AVAILABLE)

28240-300-000

Unavailable

4

SPRING, KICK STARTER (NOT AVAILABLE)

28292-250-010

Unavailable

5

CLIP, KICK STARTER KNUCKLE PIN

28293-250-000

Unavailable

6

RUBBER, KICK STARTER

28311-329-000

$5.54

7

PIN, KICK STARTER KNUCKLE (NOT AVAILABLE)

28321-300-000

Unavailable

8

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

9

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

9

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

10

SPRING, STOP SWITCH

35357-300-000

Unavailable

11

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43451-341-000.

43450-405-000

Unavailable

12

PIN B, BRAKE ROD JOINT This part replaces 43471-292-010.

95015-52000

$2.03

12

PIN B, BRAKE ROD JOINT This part replaces 46517-361-000.

95015-52000

$2.03

12

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

13

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

13

SPRING A, BRAKE ROD

95014-73100

$1.49

13

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

14

PEDAL, BRAKE (NOT AVAILABLE)

46500-341-670

Unavailable

15

SPINDLE, RR. BRAKE

46510-300-010

Unavailable

16

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-300-000

Unavailable

17

BRACKET, STOP SWITCH

50156-300-020

Unavailable

18

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

18

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

19

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

19

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

20

BOLT, HEX. (8X28) This part replaces 92000-08028-0B.

92101-08028-0B

Unavailable

21

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

21

NUT, HEX. (6MM)

94002-06000-0S

$1.49

22

WASHER, FLAT (8MM)

94102-08200

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

24

PIN, COTTER (1.6X25)

94201-16250

$1.49

25

JOINT, BRAKE ARM

95015-32001

$1.49

26

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

27

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
