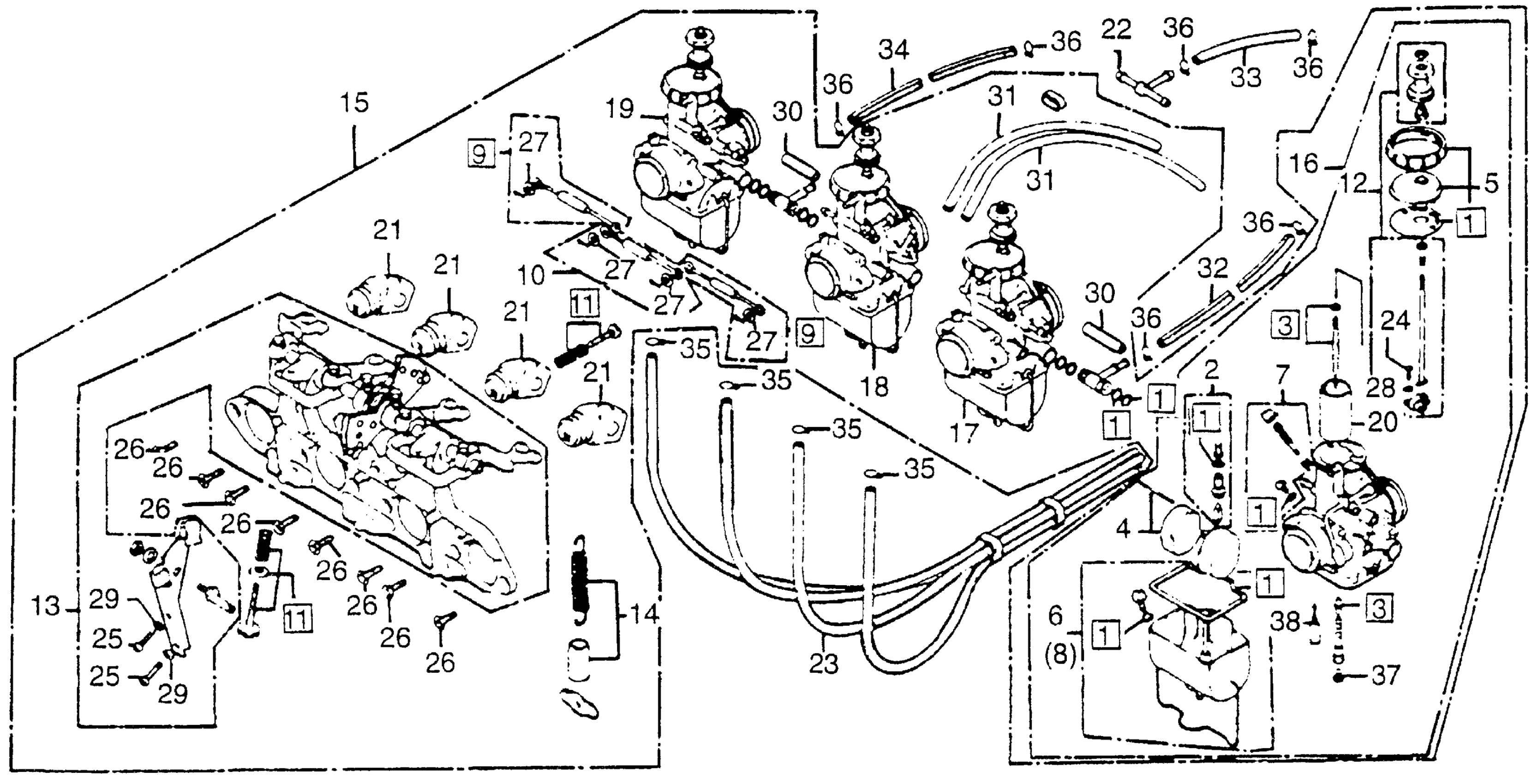

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-300-014.

16010-300-305

$27.30

1

GASKET SET

16010-300-305

$27.30

2

VALVE SET, FLOAT

16011-341-004

$36.21

3

NEEDLE SET, JET

16012-392-004

Unavailable

4

FLOAT SET

16013-300-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-300-014

Unavailable

6

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-300-004

Unavailable

7

SCREW SET A (NOT AVAILABLE)

16016-300-670

Unavailable

8

CHAMBER SET B, FLOAT (NOT AVAILABLE)

16023-300-004

Unavailable

9

ROD SET A, CHOKE (NOT AVAILABLE)

16025-300-004

Unavailable

10

ROD SET B, CHOKE (NOT AVAILABLE)

16026-300-004

Unavailable

11

SCREW SET B (NOT AVAILABLE)

16028-300-004

Unavailable

12

ROD SET, THROTTLE (NOT AVAILABLE)

16032-300-004

Unavailable

13

PLATE SET, STAY

16035-392-004

Unavailable

14

TUBE SET, PROTECT (NOT AVAILABLE)

16036-392-004

Unavailable

15

CARBURETOR ASSY. (NOT AVAILABLE)

16100-300-671

Unavailable

16

CARBURETOR ASSY. 1 (NOT AVAILABLE)

16101-300-671

Unavailable

17

CARBURETOR ASSY. 2

16102-300-671

Unavailable

18

CARBURETOR ASSY. 3

16103-300-671

Unavailable

19

CARBURETOR ASSY. 4

16104-300-671

Unavailable

20

VALVE, THROTTLE

16141-300-014

Unavailable

21

CAP, DUST

16154-300-004

$23.26

22

JOINT, FUEL

16235-657-000

$12.13

23

TUBE, OVERFLOW (NOT AVAILABLE)

16290-300-010

Unavailable

24

SCREW, PAN (3X10)

93500-03010-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

25

SCREW, PAN (6X12)

93500-06012-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

26

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

26

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

27

WASHER, PLAIN (5MM)

94101-05000

$1.49

28

WASHER, SPRING (3MM)

94111-03000

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

BULK HOSE, FUEL (3.5X3000) (3.5X26)

95001-35003-60M

$20.85

31

BULK HOSE, FUEL (3.5X3000) (3.5X240)

95001-35003-60M

$20.85

32

BULK HOSE, FUEL (5.5X3000) (5.5X80)

95001-55003-60M

$47.32

33

BULK HOSE, FUEL (5.5X3000) (5.5X160)

95001-55003-60M

$47.32

34

BULK HOSE, FUEL (5.5X3000) (5.5X190)

95001-55003-60M

$47.32

35

CLIP, TUBE (B7)

95002-02070

$1.80

36

CLIP, TUBE (B10)

95002-02100

$1.90

37

JET, MAIN (#105)

99114-246-1050

Unavailable

38

JET, SLOW (#40)

99124-076-0400

$9.85
