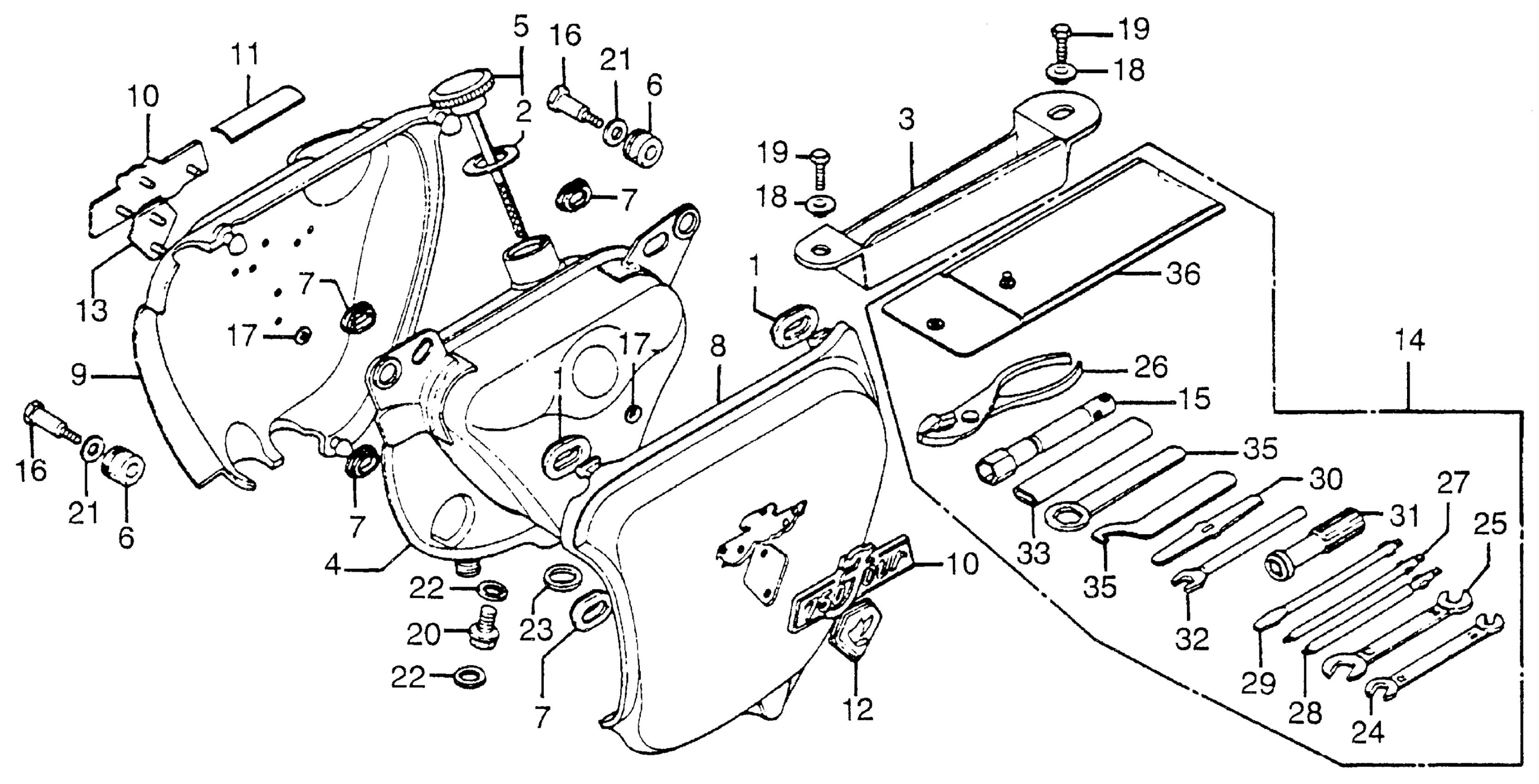

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 BATTERY COVER + OIL TANK COVER + TOOLS Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

GASKET, FUEL FILLER CAP This part replaces 17631-253-000.

17631-253-010

Unavailable

2

GASKET, FUEL FILLER CAP

17631-253-010

Unavailable

3

TRAY, TOOL (NOT AVAILABLE)

50341-392-000

Unavailable

4

TANK, OIL (NOT AVAILABLE)

55100-341-000

Unavailable

5

CAP, OIL TANK

55105-300-010

Unavailable

6

RUBBER, OIL TANK

55106-300-000

Unavailable

7

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

8

COVER, BATTERY *PB3CF* (FLAKE SAPPHIRE BLUE) (NOT AVAILABLE)

83600-341-701ZA

Unavailable

8

COVER, BATTERY *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83600-341-701ZB

Unavailable

9

COVER, OIL TANK *PB3CF* (FLAKE SAPPHIRE BLUE) (NOT AVAILABLE)

83700-341-701ZA

Unavailable

9

COVER, OIL TANK *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83700-341-701ZB

Unavailable

10

EMBLEM A, BATTERY COVER

87123-341-673

Unavailable

11

PLATE, OIL CAUTION (NOT AVAILABLE)

87125-392-771

Unavailable

12

EMBLEM, BATTERY

87126-300-405

Unavailable

12

EMBLEM, BATTERY This part replaces 87126-341-000.

87126-300-405

Unavailable

13

EMBLEM B, OIL

87127-300-405

Unavailable

13

EMBLEM B, OIL This part replaces 87127-341-000.

87127-300-405

Unavailable

14

TOOL SET (NOT AVAILABLE)

89010-341-010

Unavailable

15

WRENCH, SPARK PLUG This part replaces 89216-300-000.

89216-323-000

Unavailable

15

WRENCH, SPARK PLUG

89216-323-000

Unavailable

16

BOLT A (6MM)

90141-300-000

Unavailable

17

NUT, SPEED (3MM) This part replaces 90313-512-000.

90313-567-000

$3.97

17

NUT, SPEED (3MM)

90313-567-000

$3.97

18

WASHER (6X20)

90512-300-000

$3.08

19

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

20

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

23

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

24

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

25

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

26

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

27

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

28

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

29

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

30

LEVER, TIRE

99003-40000

$1.49

31

GRIP

99003-50000

$3.27

32

BAR B, HANDLE

99005-02000

$2.52

33

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

34

WRENCH, EYE (26MM) (NOT AVAILABLE)

99006-26000

Unavailable

35

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.40

36

BAG, TOOL

89101-ME5-670

Unavailable

36

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
