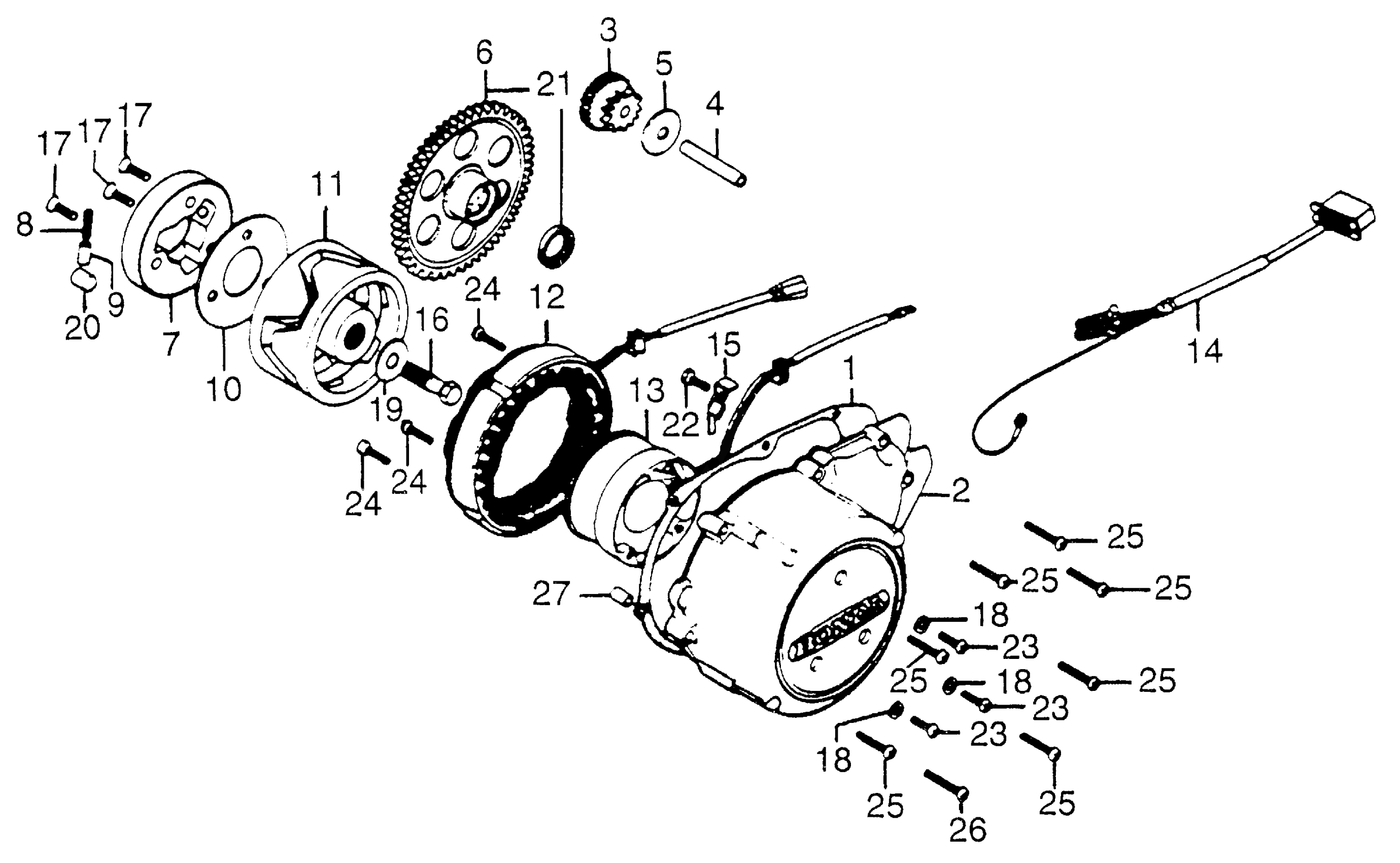

Honda CB750KA (76) 750 FOUR, JPN, VIN# CB750-2540001 TO CB750-2575894 ALTERNATOR Diagram

#

Description
Price

1

GASKET, ALTERNATOR COVER This part replaces 11397-300-040.

11397-300-306

$19.65

1

GASKET, ALTERNATOR COVER This part replaces 11397-300-303.

11397-300-306

$19.65

1

GASKET, ALTERNATOR COVER

11397-300-306

$19.65

1

GASKET, ALTERNATOR COVER This part replaces 11397-393-000.

11397-300-306

$19.65

2

COVER, ALTERNATOR

11631-300-040

Unavailable

3

GEAR, STARTER MOTOR REDUCTION (NOT AVAILABLE)

28101-300-000

Unavailable

4

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-300-000

Unavailable

5

PLATE, STARTER GEAR SETTING (NOT AVAILABLE)

28109-300-000

Unavailable

6

GEAR, STARTER CLUTCH (NOT AVAILABLE)

28110-300-000

Unavailable

7

CLUTCH, STARTER (OUTER) (NOT AVAILABLE)

28120-300-000

Unavailable

8

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

9

CAP, STARTER CLUTCH ROLLER SPRING

28126-516-020

$19.34

10

PLATE, STARTER CLUTCH SIDE (NOT AVAILABLE)

28128-516-000

Unavailable

11

ROTOR (HITACHI)

31101-300-035

Unavailable

12

STATOR (HITACHI) (NOT AVAILABLE) This part replaces 31102-300-035.

31102-300-045

Unavailable

12

STATOR (HITACHI) (NOT AVAILABLE)

31102-300-045

Unavailable

13

COIL, FIELD (HITACHI) (NOT AVAILABLE) This part replaces 31103-300-035.

31103-300-045

Unavailable

13

COIL, FIELD (HITACHI) (NOT AVAILABLE)

31103-300-045

Unavailable

14

WIRE HARNESS, ALTERNATOR (SUMITOMO) (NOT AVAILABLE)

31110-300-154

Unavailable

15

PLATE, ALTERNATOR WIRE SETTING (NOT AVAILABLE)

32116-300-010

Unavailable

16

BOLT, ROTOR SET | Use up to Engine SN 2446809

90014-300-010

$6.61

16

BOLT, ROTOR SET (NOT AVAILABLE) | Use from Engine SN 2446810

90014-392-010

Unavailable

17

SCREW, FLAT (8X22) (NOT AVAILABLE)

90053-300-000

Unavailable

18

WASHER, THRUST (11MM)

90425-300-000

$2.66

19

WASHER (12MM) (NOT AVAILABLE) | Use up to Engine SN 2446809

90428-300-010

Unavailable

20

ROLLER (15X13)

91101-516-000

$6.32

21

OIL SEAL (25X33X4)

91215-300-003

Unavailable

22

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

23

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

23

SCREW, PAN (6X20)

93500-06020-0A

$1.49

24

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

24

SCREW, PAN (6X28)

93500-06028-0A

$1.49

25

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

25

SCREW, PAN (6X32)

93500-06032-0A

$1.49

26

SCREW, PAN (6X35)

93500-06035-0A

$1.49

26

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

27

PIN A, DOWEL (8X14)

94301-08140

$2.25
