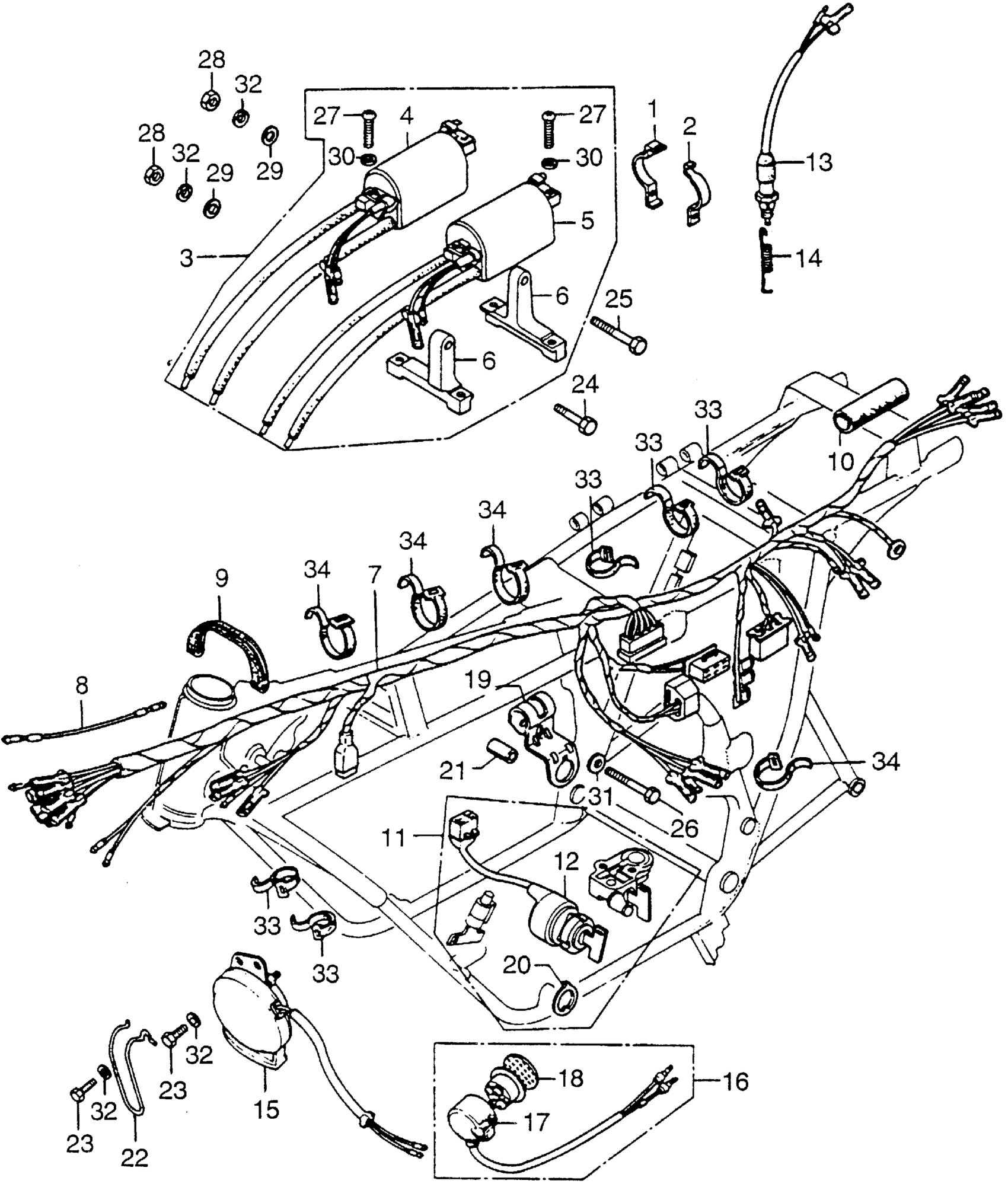

Honda CB750K5A MOTORCYCLE, JPN, VIN# CB750-2500001 WIRE HARNESS + IGNITION COIL Diagram

BAND A, IGNITION COIL SETTING (NOT AVAILABLE)

30151-300-000

Unavailable

BAND B, IGNITION COIL SETTING (NOT AVAILABLE)

30152-300-000

Unavailable

COIL ASSY., IGNITION (TOYO)

30500-300-013

$316.46

COIL, R. IGNITION (TOYO)

30501-300-003

Unavailable

COIL, L. IGNITION (TOYO)

30502-300-003

Unavailable

BRACKET, IGNITION COIL (NOT AVAILABLE)

30511-300-000

Unavailable

WIRE HARNESS (NOT AVAILABLE)

32100-341-703

Unavailable

SUB-WIRE B, WIRE HARNESS (NOT AVAILABLE)

32107-341-670

Unavailable

BAND, WIRE HARNESS MOUNT (NOT AVAILABLE)

32125-341-700

Unavailable

TUBE, WIRE (NOT AVAILABLE)

33720-300-000

Unavailable

SWITCH KIT, MAIN This part replaces 35010-341-702.

35010-374-671

$172.93

SWITCH KIT, MAIN This part replaces 35010-374-670.

35010-374-671

$172.93

SWITCH KIT, MAIN

35010-374-671

$172.93

SWITCH KIT, MAIN This part replaces 35020-341-701.

35010-374-671

$172.93

SWITCH ASSY., COMBINATION (TOYO) This part replaces 35100-374-000.

35100-374-007

Unavailable

SWITCH ASSY., COMBINATION (TOYO)

35100-374-007

Unavailable

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

SPRING, STOP SWITCH

35357-300-000

Unavailable

HORN ASSY. (MITSUBA)

38100-300-023

Unavailable

BUZZER ASSY., TURN SIGNAL (NOT AVAILABLE)

38400-341-674

Unavailable

COVER, BUZZER (NOT AVAILABLE)

38402-341-671

Unavailable

PLATE, TURN SIGNAL BUZZER

38403-341-672

$5.08

BRACKET, COMBINATION SWITCH *NH1* (BLACK) (NOT AVAILABLE)

50375-300-000B

Unavailable

WASHER, COMBINATION SWITCH (NOT AVAILABLE)

50376-300-000

Unavailable

COLLAR, COMBINATION SWITCH (NOT AVAILABLE)

50377-300-000

Unavailable

CLAMP, TACHOMETER CABLE This part replaces 50462-323-000.

50462-323-010

Unavailable

CLAMP, TACHOMETER CABLE

50462-323-010

Unavailable

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

SCREW, PAN (5X20)

93500-05020-0A

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BAND B2, CABLE HARNESS

95014-62200

$2.11
