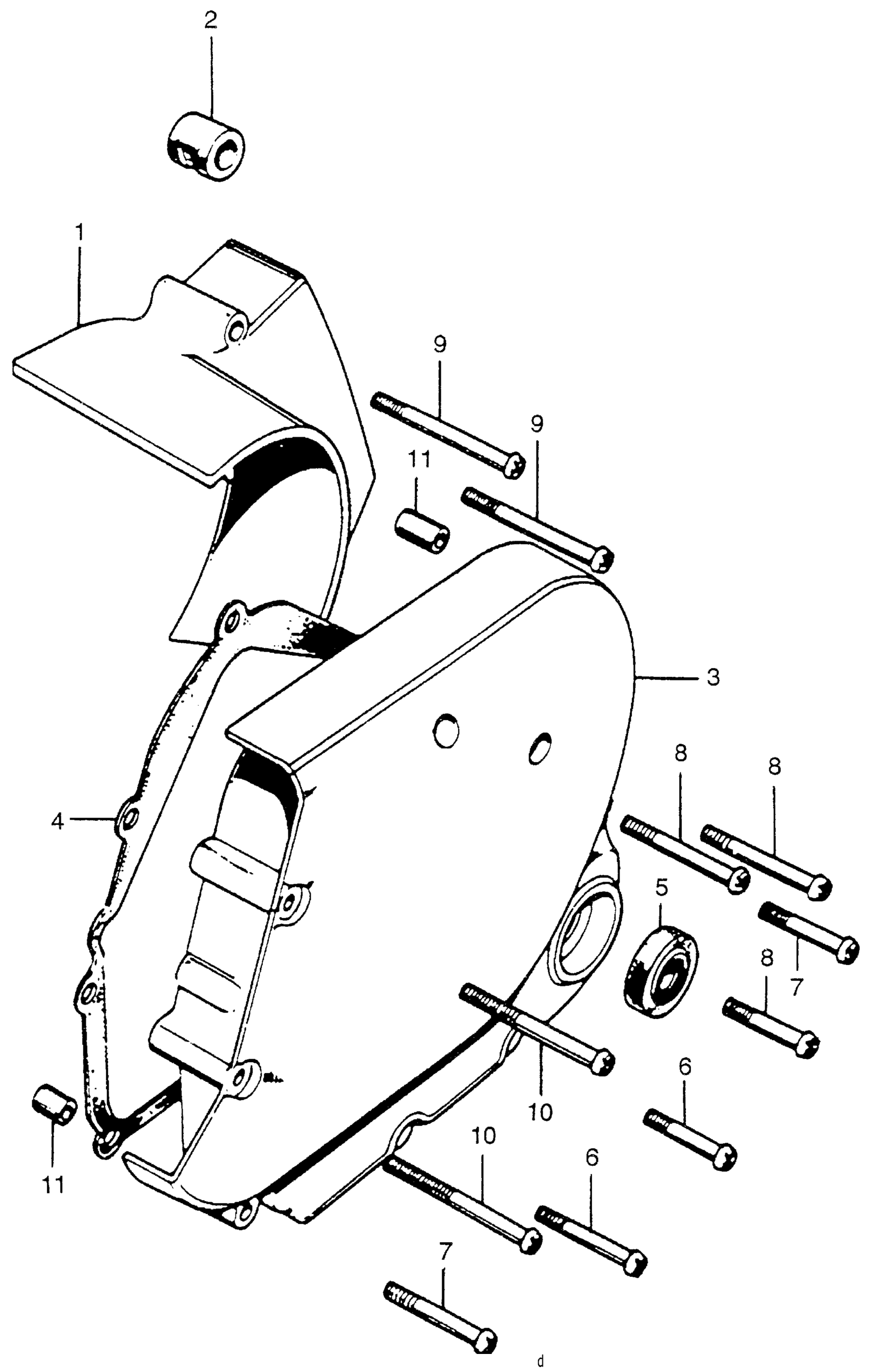

Honda CB750K5A MOTORCYCLE, JPN, VIN# CB750-2500001 TRANSMISSION COVER + REAR COVER Diagram

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-300-060

Unavailable

RUBBER, FINAL CHAIN GUIDE (NOT AVAILABLE)

11354-300-010

Unavailable

COVER, CRANKCASE TRANSMISSION (NOT AVAILABLE)

11360-300-050

Unavailable

GASKET, TRANSMISSION COVER This part replaces 11395-300-040.

11395-300-306

$19.33

GASKET, TRANSMISSION COVER

11395-300-306

$19.33

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

SCREW, PAN (6X32)

93500-06032-0A

$1.49

SCREW, PAN (6X35)

93500-06035-0A

$1.49

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

SCREW, PAN (6X50)

93500-06050-0A

$1.49

SCREW, PAN (6X55)

93500-06055-0A

$1.49

SCREW, PAN (6X55) This part replaces 93500-06056.

93500-06055-0A

$1.49

PIN A, DOWEL (8X14)

94301-08140

$2.25
