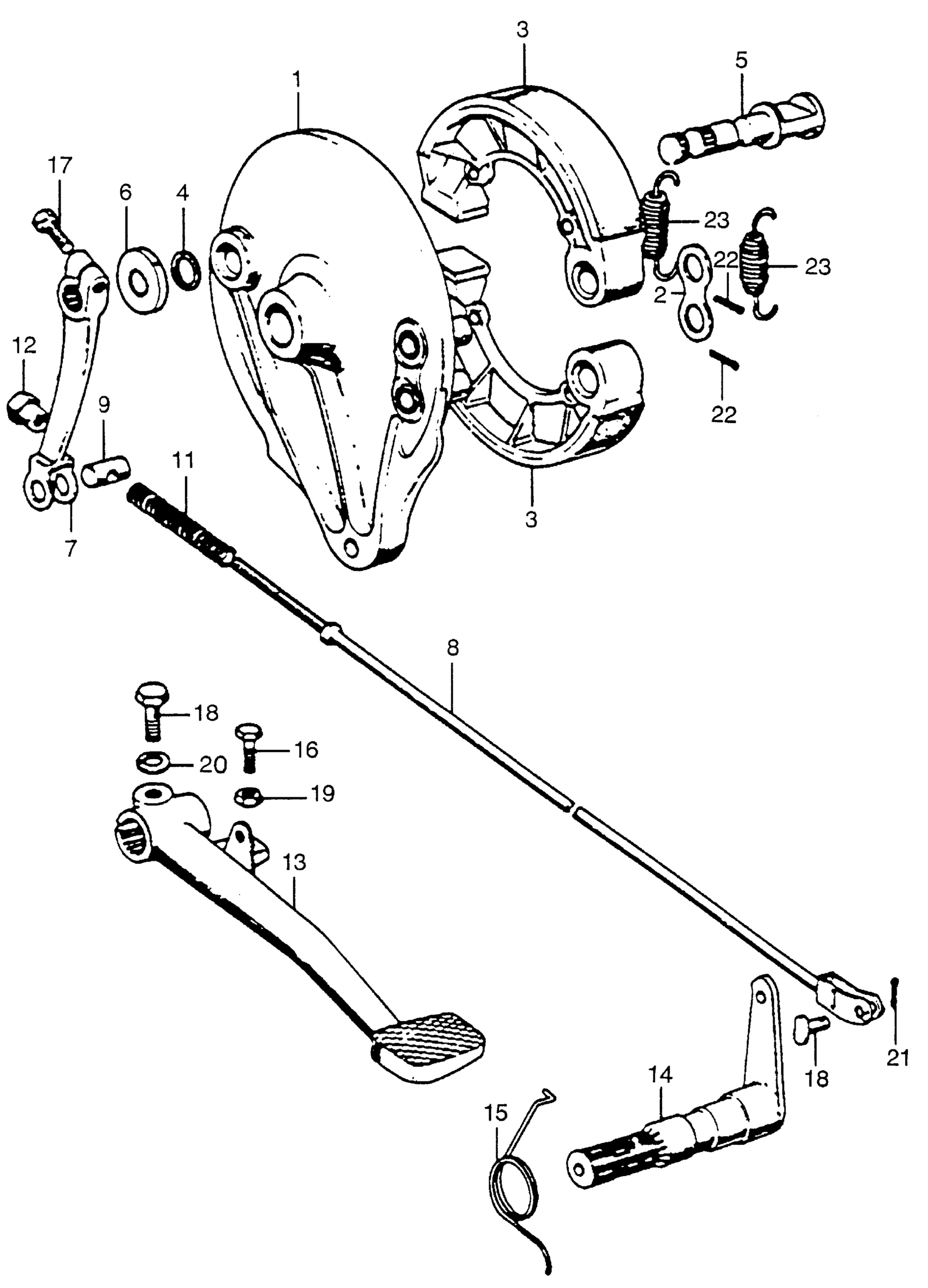

Honda CB750K5A MOTORCYCLE, JPN, VIN# CB750-2500001 REAR BRAKE PANEL + PEDAL Diagram

#

Description
Price

1

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-341-010

Unavailable

2

WASHER, ANCHOR PIN

43102-319-000

$6.21

2

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

3

SHOE KIT, BRAKE This part replaces 43120-300-010.

06430-393-405

Unavailable

3

SHOE KIT, BRAKE This part replaces 43120-393-003.

06430-393-405

Unavailable

3

SHOE KIT, BRAKE This part replaces 43120-393-006.

06430-393-405

Unavailable

4

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

5

CAM, RR. BRAKE (NOT AVAILABLE)

43141-341-000

Unavailable

6

PLATE, BRAKE INDICATOR (NOT AVAILABLE)

43145-341-000

Unavailable

7

ARM, RR. BRAKE (NOT AVAILABLE)

43410-341-700

Unavailable

8

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43451-341-000.

43450-405-000

Unavailable

9

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$1.49

9

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

9

JOINT, BRAKE ARM

95015-32001

$1.49

10

PIN B, BRAKE ROD JOINT This part replaces 43471-292-010.

95015-52000

$2.03

10

PIN B, BRAKE ROD JOINT This part replaces 46517-361-000.

95015-52000

$2.03

10

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

11

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

11

SPRING A, BRAKE ROD

95014-73100

$1.49

11

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

12

NUT B, BRAKE ROD ADJUSTING This part replaces 43486-250-000.

95015-42000

$1.83

12

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

13

PEDAL, BRAKE (NOT AVAILABLE)

46500-341-670

Unavailable

14

SPINDLE, RR. BRAKE

46510-300-010

Unavailable

15

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-300-000

Unavailable

16

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

16

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

17

BOLT, HEX. (8X22) This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

17

BOLT, HEX. (8X22)

92101-08022-0A

Unavailable

18

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

18

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

19

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

19

NUT, HEX. (6MM)

94002-06000-0S

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49

21

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

21

PIN, COTTER (1.6X25)

94201-16250

$1.49

22

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

22

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

22

PIN, COTTER (2.5MM)

94201-25300

$1.49

23

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90
