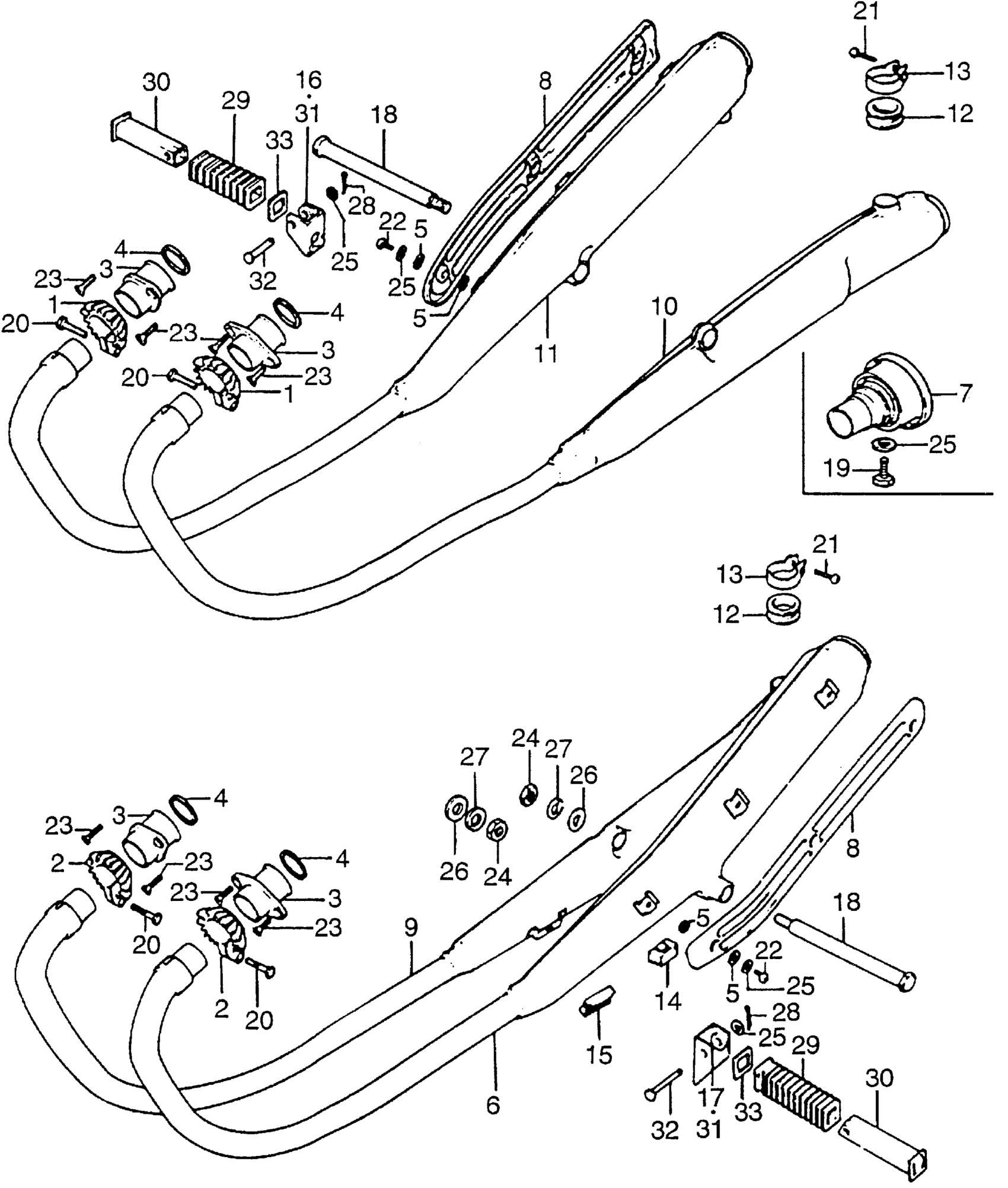

Honda CB750K5A MOTORCYCLE, JPN, VIN# CB750-2500001 MUFFLER Diagram

#

Description
Price

1

JOINT, R. EX. PIPE

18231-300-010

$52.82

2

JOINT, L. EX. PIPE

18232-300-010

Unavailable

3

FLANGE, EX. PIPE

18236-300-030

Unavailable

4

GASKET, EX. PIPE

18291-MM5-860

$5.17

4

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

5

GASKET, PROTECTOR

18292-167-890

$1.88

5

GASKET, PROTECTOR This part replaces 18292-290-000.

18292-167-890

$1.88

5

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

6

MUFFLER 1, EX. This part replaces 18300-341-000.

18300-341-907

Unavailable

6

MUFFLER 1, EX. This part replaces 18300-341-900.

18300-341-907

Unavailable

6

MUFFLER 1, EX.

18300-341-907

Unavailable

7

PIPE, EX. DIFFUSER This part replaces 18311-341-300.

18311-341-900

$40.98

7

PIPE, EX. DIFFUSER

18311-341-900

$40.98

8

PROTECTOR, MUFFLER

18315-300-020

Unavailable

9

MUFFLER 2, EX. This part replaces 18350-341-000.

18350-341-907

Unavailable

9

MUFFLER 2, EX. This part replaces 18350-341-900.

18350-341-907

Unavailable

9

MUFFLER 2, EX.

18350-341-907

Unavailable

10

MUFFLER 3, EX. This part replaces 18400-341-000.

18400-341-907

Unavailable

10

MUFFLER 3, EX. This part replaces 18400-341-900.

18400-341-907

Unavailable

10

MUFFLER 3, EX.

18400-341-907

Unavailable

11

MUFFLER 4, EX. This part replaces 18450-341-000.

18450-341-907

Unavailable

11

MUFFLER 4, EX. This part replaces 18450-341-900.

18450-341-907

Unavailable

11

MUFFLER 4, EX.

18450-341-907

Unavailable

12

TUBE, MUFFLER CONNECTING

18472-300-000

$17.64

13

BAND, MUFFLER CONNECTING

18473-300-000

$14.28

14

RUBBER A, STAND STOPPER This part replaces 50524-001-000.

95011-61000

$1.49

14

RUBBER A, STAND STOPPER

95011-61000

$1.49

15

RUBBER C, STAND STOPPER This part replaces 50524-283-000.

95011-63000

$3.90

15

RUBBER C, STAND STOPPER This part replaces 50543-283-000.

95011-63000

$3.90

15

RUBBER C, STAND STOPPER

95011-63000

$3.90

16

BRACKET, R. PILLION STEP (NOT AVAILABLE)

50711-341-670

Unavailable

17

BRACKET, L. PILLION STEP (NOT AVAILABLE)

50712-341-670

Unavailable

18

BOLT, PILLION STEP

90146-300-020

$32.02

19

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

20

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

20

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

20

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

21

SCREW, PAN (5X16)

93500-05016-0A

$1.49

22

SCREW, PAN (6X12)

93500-06012-4J

$1.49

22

SCREW, PAN (6X12) This part replaces 93500-06012-49.

93500-06012-4J

$1.49

23

SCREW, FLAT (8X22)

93600-08022

$1.28

24

NUT, HEX. (12MM)

94030-12000

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, FLAT (12MM)

94102-12000

$1.49

27

WASHER, SPRING (12MM)

94111-12000

$1.49

28

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

28

PIN, COTTER (1.6X25)

94201-16250

$1.49

29

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

29

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

30

BAR, PILLION FOOTPEG

50715-MA6-000

$19.16

30

BAR, PILLION FOOTPEG This part replaces 50715-377-000.

50715-MA6-000

$19.16

32

PIN C, PILLION FOOTPEG

95015-83000

$2.41

33

WASHER, PILLION FOOTPEG

50712-377-000

Unavailable
