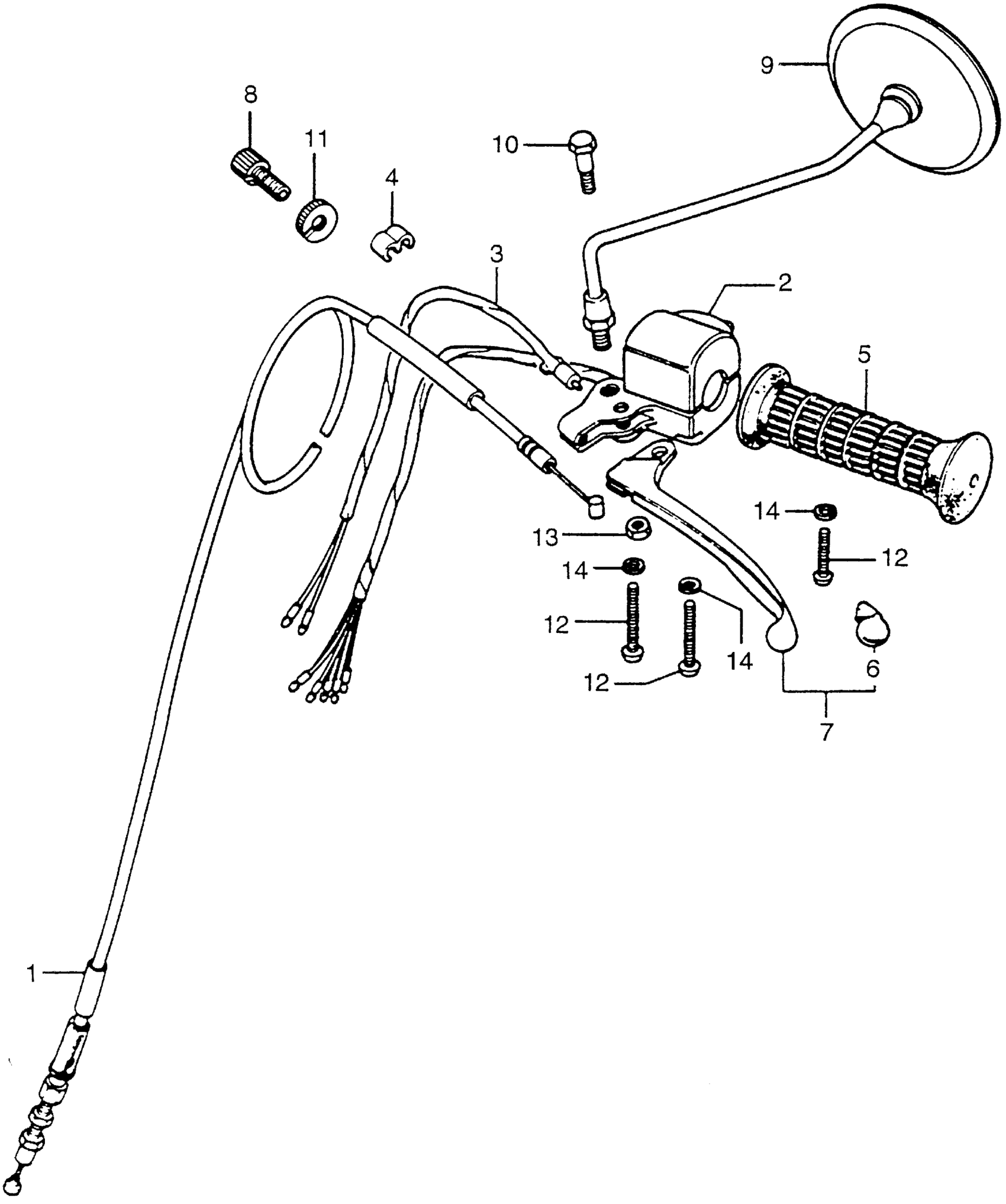

Honda CB750K5A MOTORCYCLE, JPN, VIN# CB750-2500001 LEFT HANDLE SWITCH + CABLE II Diagram

#

Description
Price

1

CABLE, CLUTCH This part replaces 22870-341-010.

22870-410-000

$38.98

1

CABLE, CLUTCH

22870-410-000

$38.98

2

SWITCH ASSY., TURN SIGNAL & HORN (NOT AVAILABLE)

35200-374-671

Unavailable

3

SWITCH ASSY., FR. STOP This part replaces 35360-341-000.

35340-329-003

$17.46

4

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

4

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.94

5

GRIP, L. HANDLEBAR

53166-342-670

$13.49

7

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

7

LEVER, L. HANDLE

53178-369-700

$28.35

7

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

7

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

7

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

8

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

9

MIRROR, L. This part replaces 88120-333-004.

88120-333-611

Unavailable

9

MIRROR, L. This part replaces 88120-333-610.

88120-333-611

Unavailable

9

MIRROR, L.

88120-333-611

Unavailable

10

BOLT, HANDLE LEVER PIVOT This part replaces 90114-268-020.

90114-310-000

$4.90

10

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

11

NUT, FIXING

90321-315-670

$7.31

11

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

12

SCREW, PAN (5X28)

93500-05028-0A

$1.49

13

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM)

94001-06200-0S

$1.49

13

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

14

WASHER, SPRING (5MM)

94111-05000

$1.49
