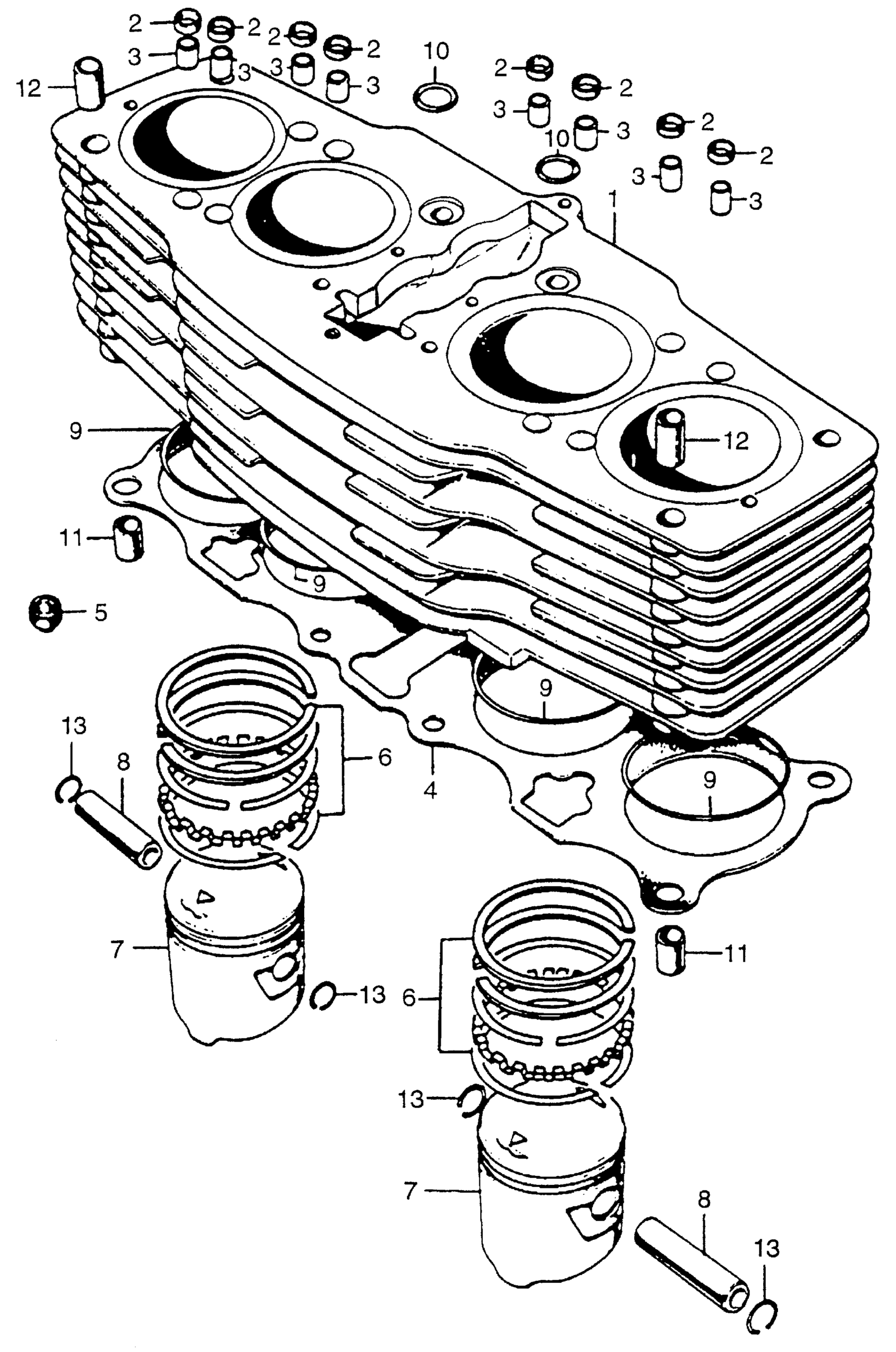

Honda CB750K4A MOTORCYCLE, JPN, VIN# CB750-2300001 CYLINDER + PISTON Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE) | Use up to Engine SN 2304500 This part replaces 12100-300-030.

12100-300-060

Unavailable

1

CYLINDER (NOT AVAILABLE) | Use up to Engine SN 2352922 This part replaces 12100-300-040.

12100-300-060

Unavailable

1

CYLINDER (NOT AVAILABLE) This part replaces 12100-300-050.

12100-300-060

Unavailable

1

CYLINDER (NOT AVAILABLE)

12100-300-060

Unavailable

2

GASKET, CYLINDER STUD BOLT | Use from Engine SN 2352923

12115-300-000

Unavailable

3

PIN, SPECIAL KNOCK (12MM) | Use from Engine SN 2352923

12116-300-000

$4.57

4

GASKET, CYLINDER | Use up to Engine SN 2304500 This part replaces 12191-300-020.

12191-300-306

Unavailable

4

GASKET, CYLINDER This part replaces 12191-300-030.

12191-300-306

Unavailable

4

GASKET, CYLINDER

12191-300-306

Unavailable

4

GASKET, CYLINDER | Use up to Engine SN 2304500

12191-300-306

Unavailable

5

RUBBER, INSERT This part replaces 12195-300-000.

12620-286-000

$5.85

5

RUBBER, INSERT

12620-286-000

$5.85

6

RING SET, PISTON (STD) (RIKEN)

13011-300-024

Unavailable

6

RING SET, PISTON (OS 0.25) (RIKEN) | (Optional).

13021-300-024

Unavailable

6

RING SET, PISTON (OS 0.50) (RIKEN) | (Optional).

13031-300-024

Unavailable

6

RING SET, PISTON (0.75) (RIKEN) (NOT AVAILABLE) | (Optional).

13041-300-024

Unavailable

6

RING SET, PISTON (1.00) (RIKEN) (NOT AVAILABLE) | (Optional).

13051-300-024

Unavailable

7

PISTON (STD)

13101-300-030

Unavailable

7

PISTON (OS 0.25) | (Optional).

13102-300-030

$88.98

7

PISTON (OS 0.50) | (Optional).

13103-300-030

Unavailable

7

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-300-030

Unavailable

7

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-300-030

Unavailable

8

PIN, PISTON

13111-300-000

$15.82

9

O-RING (61.8X2.0)

91304-286-000

$10.25

10

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$5.19

10

O-RING (11X2.5) | Use from Engine SN 2304501 This part replaces 91309-035-000.

91310-426-000

$5.19

10

O-RING (11X2.5)

91310-426-000

$5.19

10

O-RING (11X2.5) | Use from Engine SN 2304501

91310-426-000

$5.19

10

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$5.19

10

O-RING (11X2.5) | Use from Engine SN 2304501 This part replaces 91314-MA6-005.

91310-426-000

$5.19

10

O-RING (11X2.5) | Use from Engine SN 2304501 This part replaces 91310-300-000.

91310-426-000

$5.19

11

PIN, DOWEL (12X15) (SOURCE: VINTAGE PARTS INC.)

94301-12150

Unavailable

12

PIN, DOWEL (12X22) (NOT AVAILABLE)

94301-12220

Unavailable

13

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
