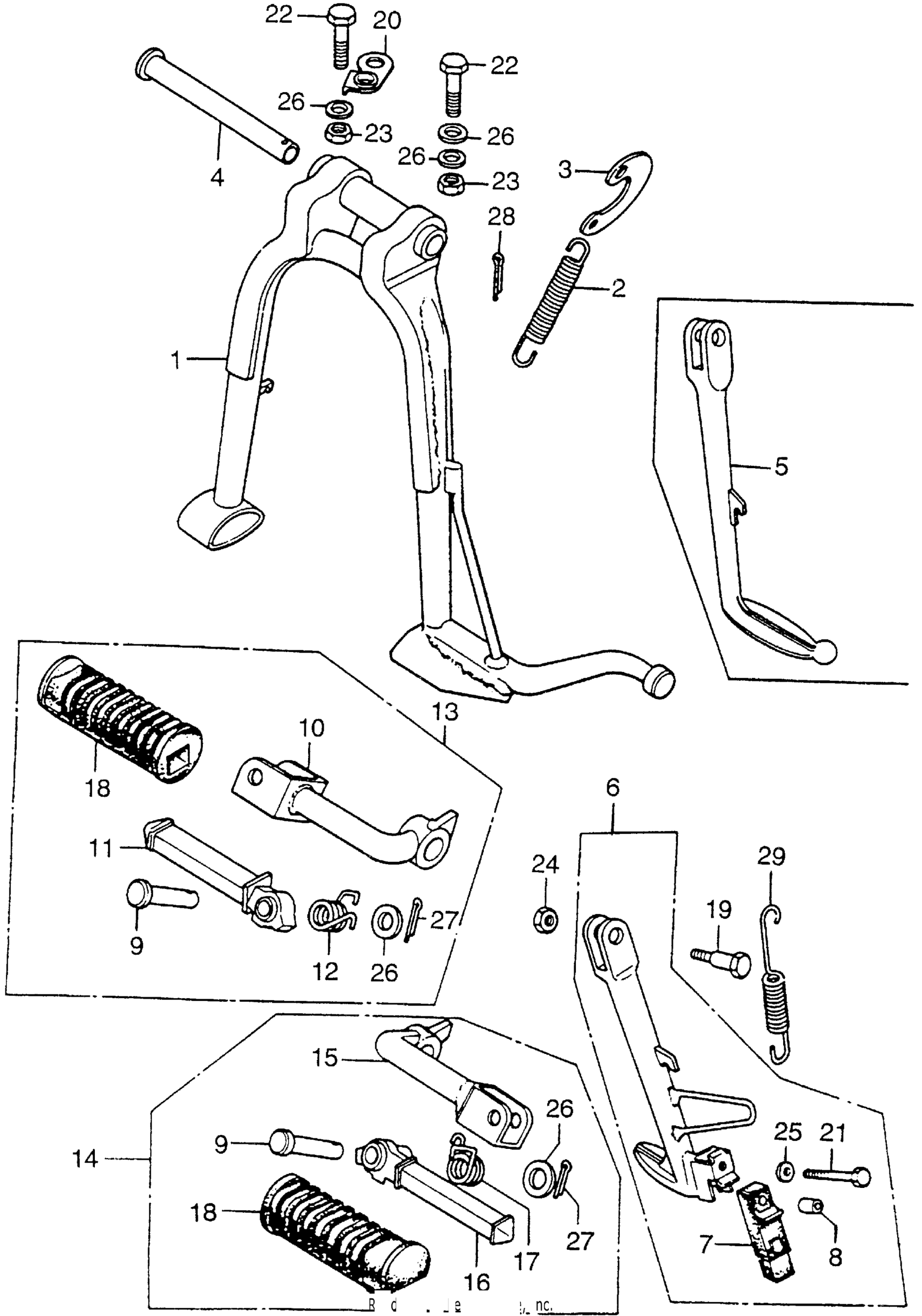

Honda CB750K3A MOTORCYCLE, JPN, VIN# CB750-2200001 STAND + STEP Diagram

#

Description
Price

1

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-300-020B

Unavailable

2

SPRING G, MAIN STAND This part replaces 50522-300-010.

95014-71702

$4.08

2

SPRING G, MAIN STAND This part replaces 95014-71700.

95014-71702

$4.08

2

SPRING G, MAIN STAND This part replaces 95014-71701.

95014-71702

$4.08

2

SPRING G, MAIN STAND

95014-71702

$4.08

3

PLATE, MAIN STAND SPRING

50523-300-010

Unavailable

4

PIPE, MAIN STAND PIVOT

50526-300-000

Unavailable

5

BAR, SIDE STAND (NOT AVAILABLE)

50530-341-670

Unavailable

9

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

9

PIN, STEP BAR JOINT

50603-033-010

$3.30

10

BAR, R. STEP (NOT AVAILABLE)

50615-341-670

Unavailable

11

ARM, R. STEP (NOT AVAILABLE)

50616-310-000

Unavailable

12

SPRING, R. STEP RETURN

50617-300-670

Unavailable

13

STEP ASSY., R.

50630-341-670

Unavailable

14

STEP ASSY., L. *NH1* (BLACK)

50640-300-670B

Unavailable

15

BAR, L. FOOTPEG *NH1* (BLACK)

50641-300-670B

Unavailable

16

ARM, L. STEP (NOT AVAILABLE)

50642-310-000

Unavailable

17

SPRING, L. STEP RETURN

50644-300-670

Unavailable

18

RUBBER, STEP

50661-310-000

$13.34

19

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

20

WASHER, BATTERY BREATHER TUBE GUIDE (NOT AVAILABLE)

90514-323-000

Unavailable

22

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

22

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

NUT, HEX. (10MM)

94002-10000-0S

$4.06

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

27

PIN, COTTER (1.6X25)

94201-16250

$1.49

28

PIN, COTTER (2.5MM)

94201-25300

$1.49

29

SPRING D, SIDE STAND This part replaces 95014-72400.

95014-72402

$2.92

29

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

29

SPRING D, SIDE STAND

95014-72402

$2.92
