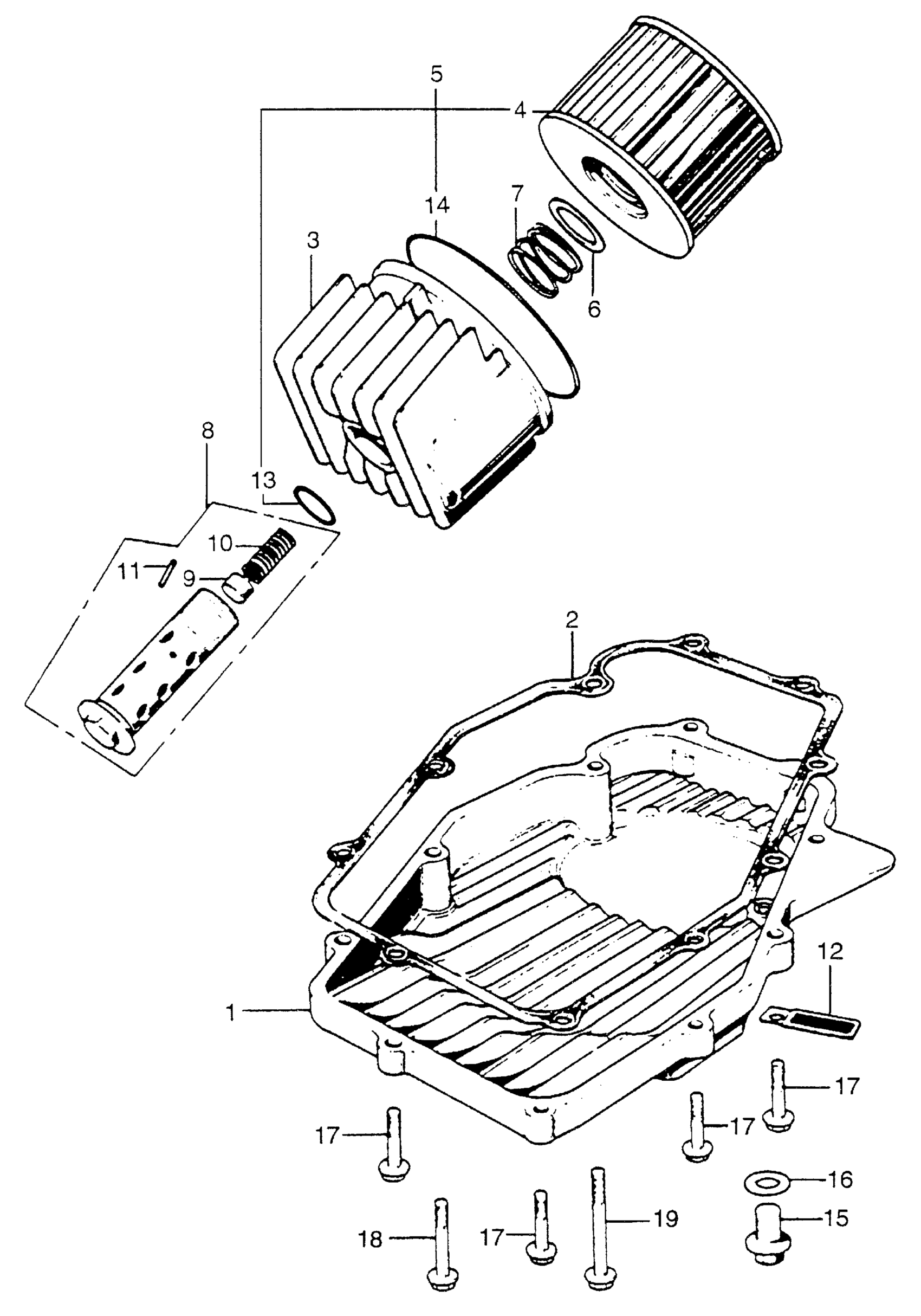

Honda CB750K3A MOTORCYCLE, JPN, VIN# CB750-2200001 OIL FILTER + OIL PAN Diagram

#

Description
Price

1

PAN, OIL (NOT AVAILABLE) This part replaces 11210-300-050.

11210-300-060

Unavailable

1

PAN, OIL (NOT AVAILABLE)

11210-300-060

Unavailable

2

GASKET, OIL PAN This part replaces 11398-300-050.

11398-300-306

Unavailable

2

GASKET, OIL PAN This part replaces 11398-300-303.

11398-300-306

Unavailable

2

GASKET, OIL PAN

11398-300-306

Unavailable

3

CASE, OIL FILTER (NOT AVAILABLE)

15411-300-010

Unavailable

4

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$9.30

4

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$9.30

4

ELEMENT, OIL FILTER

15410-426-010

$9.30

4

ELEMENT, OIL FILTER This part replaces 15412-300-024.

15410-426-010

$9.30

4

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$9.30

5

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$9.30

5

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$9.30

5

ELEMENT, OIL FILTER

15410-426-010

$9.30

5

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$9.30

6

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

7

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.85

8

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

9

VALVE, CHECK

15473-300-300

$4.25

10

SPRING, CHECK VALVE

15474-300-310

$4.89

11

PIN, SPRING SETTING

15477-300-300

$3.56

12

CLAMP, CABLE (NOT AVAILABLE)

32111-300-000

Unavailable

13

O-RING (15X2.5)

91302-377-000

$5.31

13

O-RING (15X2.5) This part replaces 91304-028-000.

91302-377-000

$5.31

14

O-RING (89X4.5) This part replaces 91316-300-003.

91316-425-003

$4.45

14

O-RING (89X4.5) This part replaces 91316-300-005.

91316-425-003

$4.45

14

O-RING (89X4.5)

91316-425-003

$4.45

15

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

16

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

17

BOLT, FLANGE (6X28) This part replaces 95700-06028.

95700-06028-00

$1.73

17

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

17

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

18

BOLT, FLANGE (6X40) This part replaces 95700-06040.

95701-06040-00

$1.80

18

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

18

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

19

BOLT, FLANGE (6X50) This part replaces 95700-06050.

95701-06050-00

$2.06

19

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

19

BOLT, FLANGE (6X50)

95701-06050-00

$2.06
