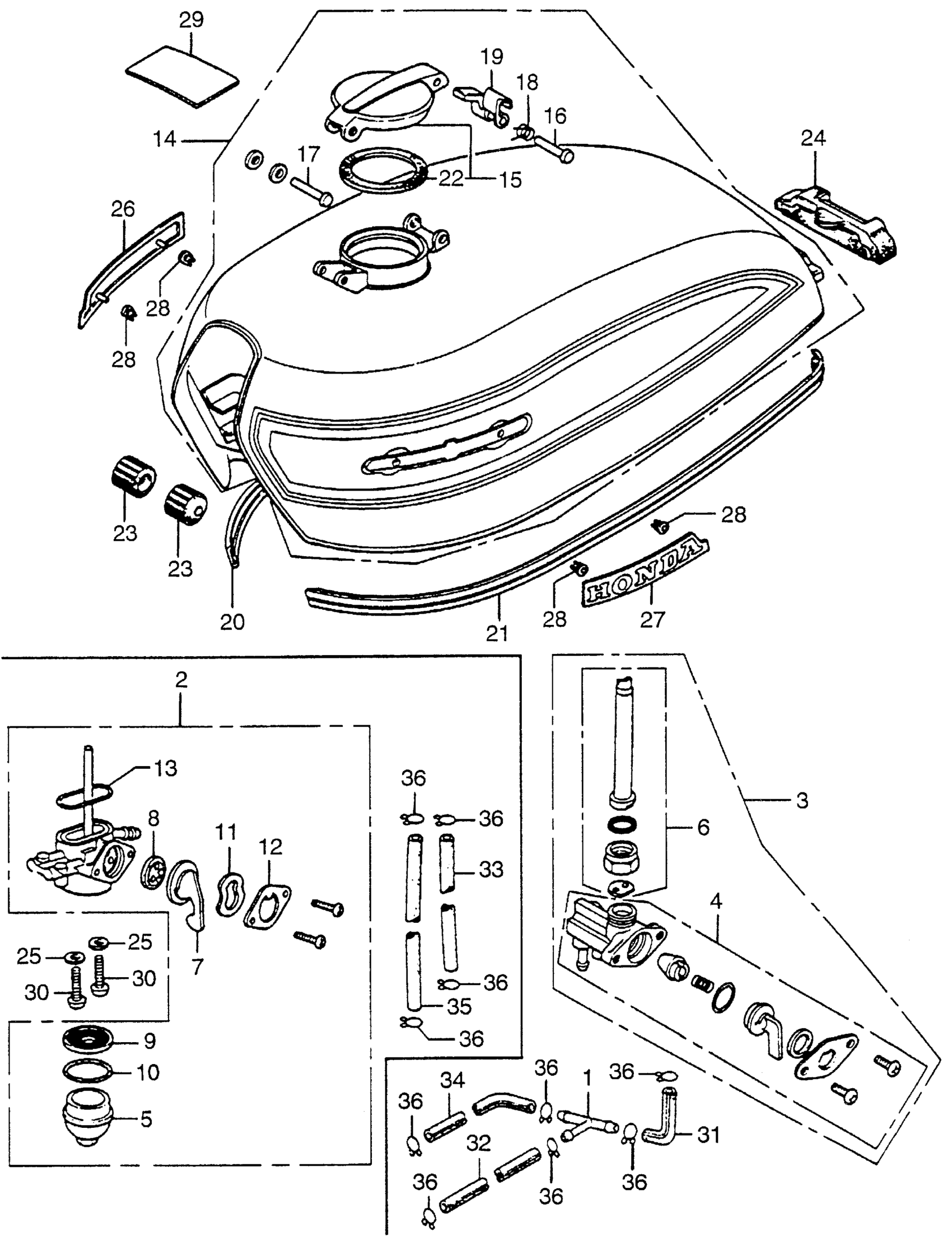

Honda CB750K3A MOTORCYCLE, JPN, VIN# CB750-2200001 FUEL TANK Diagram

#

Description
Price

2

PETCOCK ASSY.

16950-300-020

$86.59

5

CUP, FUEL STRAINER

16952-268-000

Unavailable

7

LEVER, VALVE (NOT AVAILABLE)

16953-268-020

Unavailable

8

GASKET, VALVE

16955-268-020

$5.08

9

SCREEN, FUEL STRAINER

16957-268-010

$11.38

10

GASKET, FUEL STRAINER CUP

16958-268-010

$8.89

11

SPRING, PETCOCK LEVER

16960-268-010

Unavailable

12

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16961-268-010

Unavailable

13

GASKET, PETCOCK BODY

16997-273-006

$6.74

14

TANK ASSY., FUEL *R2CF* (FLAKE SUNRISE ORANGE) (NOT AVAILABLE)

17050-341-700LV

Unavailable

14

TANK ASSY., FUEL *G5WC* (CANDY BACCHUS OLIVE CUSTOM) (NOT AVAILABLE)

17050-341-700LY

Unavailable

14

TANK ASSY., FUEL *YR20MC* (MAXIM BROWN METALLIC CUSTOM) (NOT AVAILABLE)

17050-341-700QQ

Unavailable

14

TANK ASSY., FUEL *R2CF* (FLAKE SUNRISE ORANGE) (NOT AVAILABLE) This part replaces 17500-341-700LV.

17050-341-700LV

Unavailable

14

TANK ASSY., FUEL *G5WC* (CANDY BACCHUS OLIVE CUSTOM) (NOT AVAILABLE) This part replaces 17500-341-700LY.

17050-341-700LY

Unavailable

14

TANK ASSY., FUEL *YR20MC* (MAXIM BROWN METALLIC CUSTOM) (NOT AVAILABLE) This part replaces 17500-341-700QQ.

17050-341-700QQ

Unavailable

15

CAP, FUEL TANK

17510-323-310

Unavailable

16

PIN, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17513-300-300

Unavailable

17

PIN B, FUEL FILLER CAP (NOT AVAILABLE)

17514-323-300

Unavailable

18

SPRING, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17515-300-300

Unavailable

19

CHECK, FUEL FILLER CAP (NA USE ALT:17550-377-315)

17517-300-340

Unavailable

20

MOLDING, R. FUEL TANK (NOT AVAILABLE) This part replaces 17521-300-010.

17052-300-000

Unavailable

20

MOLDING, R. FUEL TANK (NOT AVAILABLE) This part replaces 17522-300-010.

17052-300-000

Unavailable

21

MOLDING, R. FUEL TANK (NOT AVAILABLE) This part replaces 17522-300-010.

17052-300-000

Unavailable

22

GASKET, FUEL FILLER CAP

17534-323-300

$9.17

22

LATCH ASSY., FUEL FILLER CAP

17550-377-315

Unavailable

23

RUBBER, FR. FUEL TANK

17611-283-010

$8.04

24

RUBBER, RR. FUEL TANK

17613-292-000

$19.21

25

GASKET, PETCOCK

17993-250-000

$5.90

26

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-341-700

Unavailable

27

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-341-700

Unavailable

28

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.79

28

NUT, EMBLEM CLAMP

87311-634-600

$4.79

29

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

29

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.84

29

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.84

30

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

30

SCREW, PAN (6X28)

93500-06028-0A

$1.49

33

BULK HOSE, FUEL (5.5X3000) (5.5X190)

95001-55003-60M

$47.32

35

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

36

CLIP, TUBE (B10)

95002-02100

$1.90
